Clamshell vs Swing Away Heat Press: Which Should You Buy?

The global heat transfer and custom apparel decoration market surpassed $4.9 billion in annual revenue, yet the single decision that trips up most buyers has nothing to do with ink or vinyl chemistry — it is the clamshell vs swing away heat press debate that determines workflow safety, substrate compatibility, and long-term throughput. Our team has run thousands of transfers across both configurations in real studio conditions, and the performance gap is sharper than most product listings acknowledge. Before committing to either design, our full resource on how to choose the right heat press covers the foundational criteria every buyer should evaluate first.

Both machine types apply the same core physics: heat, pressure, and dwell time combine to permanently bond transfer materials to fabric. Heat transfer vinyl behaves identically under both press geometries — what changes is how safely and consistently that geometry delivers pressure to the substrate. Our team's position is unambiguous: swing away presses are the better tool for most serious crafters and mixed-substrate operators, while clamshells serve flat-garment, high-volume production runs efficiently and economically.

What Each Machine Actually Does

How a Clamshell Opens

A clamshell press uses a rear-hinge pivot. The upper platen swings upward between 60 and 80 degrees, creating a wedge-shaped gap that is wide at the back and narrow at the front. This geometry has direct consequences for every press cycle:

• Loading substrates requires sliding material in from the front, meaning hands pass partially under the hot upper platen during positioning
• Thick substrates — foam-backed garments, canvas bags with stiff handles, layered transfers — cannot lie flat without the leading edge catching the lower platen lip
• Pressure distribution skews toward the rear hinge due to the angular close, creating a measurable gradient across large transfers
• Table footprint is compact — most 15×15 clamshells occupy roughly 18×18 inches of bench space with the platen closed

For flat T-shirts and thin polyester panels in high volume, that limitation rarely surfaces. For anything with dimensional thickness or irregular geometry, the clamshell design works against consistent results from the first placement.

How a Swing Away Works

A swing away press moves the upper platen laterally — typically 90 degrees to the right — before descending straight down onto the substrate. The result is complete, unobstructed access to the lower platen during loading.

• Operators position and adjust substrates with zero proximity to a hot element — a genuine safety advantage over the clamshell in home studio environments
• Pressure is applied purely vertically, eliminating the rear-biased angular force inherent in clamshell designs
• Thick items, multi-layer transfer stacks, and canvas totes all sit flat without mechanical interference from the platen edge
• Table footprint is wider — a 15×15 swing away typically needs 24–30 inches of lateral clearance when fully open

The mechanical advantage of true vertical pressure is most visible on multi-layer HTV builds. Our team consistently observes tighter registration and fewer lifting edges on swing away presses during complex layered projects — a workflow our guide on layering HTV vinyl on a heat press covers in full technical detail.

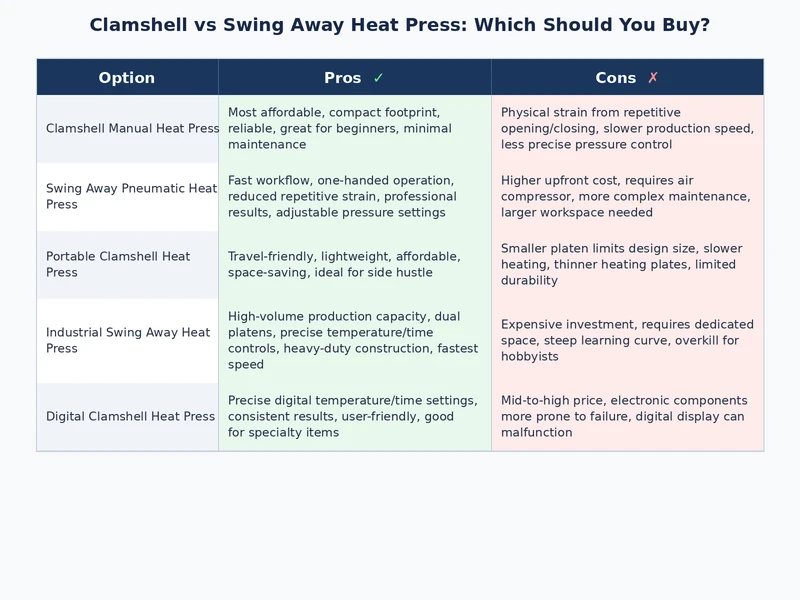

Clamshell vs Swing Away Heat Press: Side-by-Side

Workspace and Footprint

Workspace constraints are a practical purchasing filter that most buyers evaluate last and should evaluate first. The lateral swing clearance on a swing away is non-negotiable — it cannot be compressed or worked around:

• Clamshell: smaller base footprint, no side clearance required, fits comfortably in tight home studio setups
• Swing away: needs 8–12 inches of open space to the right (or left on reversed models) that cannot be used for storage or equipment
• Vertical clearance above the press is equivalent for both designs at equivalent platen sizes
• For mobile craft fair setups where table space is rented by the inch, clamshells hold a clear logistical edge

Price Range and Build Quality

Entry-level clamshells start around $150. Comparable swing away machines start around $200–$250. The gap narrows meaningfully above $400, where both designs typically use aluminum platens, digital PID temperature controllers, and adjustable pressure knobs with audible feedback. At the low end, budget clamshells with plastic housings outnumber budget swing aways — and plastic housings on a thermal device are a longevity liability. Our team recommends skipping sub-$175 clamshells entirely in favor of a mid-range swing away.

Techniques That Get Professional Results

Pressure Calibration for Each Type

Pressure calibration is where most operators — even experienced ones — leave quality on the table. The methodology differs meaningfully between designs:

• Clamshell: run the paper-drag test at front, center, and rear of the platen — the angular closing motion creates a gradient that center-only testing masks entirely
• Swing away: paper-drag test at four corners and center; vertical close produces more consistent baseline readings, but the mechanism still drifts after heavy use and pressure adjustment cycles
• Cold-press calibration before every production session is non-negotiable on both types
• A 2mm silicone pad on the lower platen compensates for minor pressure inconsistency on both designs without changing temperature delivery
• Document pressure settings per substrate type in a printed log — digital memory fails; paper posted above the press does not

Transfer method also drives calibration targets. Our breakdown of HTV vs sublimation covers the pressure and temperature requirements for each in detail — the differences are significant enough that a press calibrated for HTV needs deliberate re-dialing before any sublimation run.

Material-Specific Workflows

Getting clean, wash-durable transfers on either press type follows a disciplined sequence. Deviating from any step compounds error at the next:

1. Pre-press the substrate 5–8 seconds to eliminate moisture and fabric wrinkles before placement
2. Position transfer material carrier-sheet-down, verify alignment visually before initiating any closing motion
3. Apply the dwell time at the rated temperature specified by the HTV or sublimation paper manufacturer — not estimated from memory
4. Execute cold peel or hot peel strictly per the material spec, not operator preference or impatience
5. Post-press with a Teflon sheet for 3–5 seconds to lock the bond and restore fabric hand feel

For sublimation-specific workflows, including paper positioning, heat tape usage, and substrate moisture management on both press types, our tested process in using sublimation paper with a heat press covers every variable in sequence.

Errors That Ruin Transfers and Damage Substrates

Clamshell-Specific Pitfalls

Clamshell presses are unforgiving of habits that swing away presses tolerate more easily. Our team documents the following failures repeatedly across clamshell-only studios:

• Front-loading at an angle: pushing material in diagonally causes it to catch the front platen edge, bunching the transfer carrier before the press closes
• Stacking thick substrates: items over roughly 5mm uncompressed — canvas totes with stiff bottoms, zip-up hoodies, multi-shirt stacks — exceed the safe opening angle and prevent uniform platen contact
• Setting pressure at center only: the rear-bias gradient means front-edge adhesion fails at transfers beyond 10×10 inches when pressure is calibrated only at center-platen
• Rushing the release: the upper platen drags laterally across the transfer surface during the angular opening motion — lifting the handle immediately at the timer fires before the element has cleared causes consistent edge peeling

Our team's standing rule on clamshell presses: always wait one full second after the timer fires before lifting the handle — the angular platen travel punishes impatient releases with lifted transfer edges, every single time.

Swing Away Pitfalls

Swing away presses introduce their own failure modes, most tied to the two-stage closing sequence that operators from clamshell backgrounds routinely short-circuit:

• Incomplete lateral swing: not completing the full 90-degree travel before lowering means the platen descends at an angle — functionally identical to a clamshell geometry, negating the machine's core advantage
• Substrate drift during the swing: on presses without a fixed lower platen, the lateral arm motion creates subtle vibration that micro-shifts a precisely positioned transfer; holding the substrate lightly during the swing phase eliminates this
• Over-pressing from clamshell habit: operators transitioning from clamshells frequently over-compensate on pressure settings because true vertical force delivers more effective compression — and crushes thin fabrics at clamshell-calibrated settings

Diagnosing Transfer Failures After the Fact

Incomplete Adhesion

When a transfer lifts at the edges, peels in patches, or fails after the first wash cycle, the cause maps to one of four variables regardless of which press type was used:

• Insufficient temperature: most HTV begins bonding failure below 305°F; verify the platen reading with a calibrated infrared thermometer, not the machine's digital display alone
• Short dwell time: even 2–3 seconds under manufacturer spec produces bonds that pass visual inspection and fail after the first launder
• Low pressure: the paper-drag test is the fastest field diagnosis; a paper that slides freely in a cold press set to working pressure will produce adhesion failures without exception
• Substrate moisture: skipping the pre-press step on 100% cotton is the most common single cause of patchy adhesion across both press types

For canvas-specific substrate challenges — moisture retention, uneven surface texture, reinforced corners — the detailed process in our guide on heat pressing canvas bags addresses pad selection and pre-press duration for that material class specifically.

Scorching and Hot Spots

Scorching indicates temperature overshoot, platen hot spots, or both. Neither condition self-corrects, and neither should be worked around with lower settings — the underlying hardware issue must be resolved first:

• Map the platen with a thermal strip or infrared thermometer at nine points in a 3×3 grid at full working temperature
• Temperature variation exceeding ±10°F across the platen surface indicates heating element degradation or thermocouple drift — service or replace before continuing production
• Consistent scorching at a fixed location despite correct displayed temperature settings suggests PID over-read at that zone — recalibrate the controller against an external reference thermometer
• Teflon sheet use is mandatory for synthetic fabrics above 320°F; treating it as optional is substrate destruction, not a workflow shortcut

Frequently Asked Questions

Final Thoughts

The clamshell vs swing away heat press decision comes down to honest self-assessment about how a studio actually operates — not how buyers imagine they will operate. Our team's recommendation is straightforward: start with a mid-range swing away press, calibrate it thoroughly using the paper-drag method before the first session, and invest the time saved on troubleshooting into building production volume. Anyone ready to commit to a specific model should revisit our complete buying criteria at how to choose the right heat press before placing an order — the machine is only as good as the decision behind it.
