How to Calibrate Your TV Picture Settings

You bought a new TV, plugged it in, and the picture looked oddly washed out or painfully oversaturated — so you started clicking through menus without really knowing what each slider did. That exact moment is where most people go wrong, and it costs them the full potential of hardware they paid good money for. Learning how to calibrate TV picture settings properly is the single highest-return upgrade you can make to your viewing experience, and it costs nothing except about an hour of your time. Over at our audio-video coverage here on PalmGear, calibration comes up constantly as the most overlooked step in building a genuinely great home theater setup.

Whether you own a budget 4K LCD, a flagship OLED, or something in between, the calibration process follows the same logical sequence and the payoff is immediate once you work through it correctly. A properly calibrated display renders flesh tones that look human, shadow detail that isn't crushed into black, and specular highlights that don't clip into featureless white. If you're still deciding between panel technologies before you start, our breakdown of Mini LED vs OLED covers the key architectural differences that affect where you set backlight intensity and local dimming controls — knowing your panel type makes the calibration steps below significantly more targeted and effective.

This guide walks you through every critical setting in the correct order, explains what each control does at the signal-processing level, and tells you which factory defaults to eliminate immediately. You'll also find a data table comparing the major picture presets so you know exactly which one to use as your starting baseline before touching a single manual control.

Essential Gear for a Proper Calibration

You can do a solid visual calibration with nothing more than a few free test pattern files and careful attention to what each pattern reveals, but having the right tools moves you from "better than factory" to genuinely reference-accurate. The difference matters most in HDR content where color volume and peak luminance interact in ways that are hard to judge by eye alone, particularly across the upper two stops of the display's brightness range.

Calibration Discs and Test Patterns

The Spears & Munsil UHD HDR Benchmark disc is the gold standard for physical media calibration, delivering SMPTE-compliant test patterns for both SDR and HDR10 signal paths from a native 4K Blu-ray source. If you don't own a 4K Blu-ray player, the free AVS HD 709 test pattern package gives you everything you need for SDR calibration on any device that can play video files over USB or network streaming. According to the SMPTE color bar standard, broadcast reference peak white sits at 100 nits for SDR, and your Contrast control should be set so the display clips cleanly at exactly that signal level — not below it, not above it. Download the patterns, load them via USB or a streaming device, and work through the sequence: 100% white window for contrast, PLUGE for brightness, color bars for saturation and hue.

Colorimeters and Light Meters

A colorimeter like the X-Rite i1Display Pro or the Calibrite Display Plus HL paired with calibration software such as HCFR or DisplayCAL gives you objective delta-E measurements instead of relying on perception that drifts with fatigue and ambient light shifts. You don't need professional-grade hardware for a living room display — the Calibrite ColorChecker Display at around $130 is accurate enough for any consumer panel and integrates directly with the free DisplayCAL software suite. For most home theater setups, a colorimeter is technically optional but transforms your calibration from a subjective exercise into a measurable, repeatable process with documented before-and-after results.

Pro tip: Always warm your display up for at least 30 minutes before taking any colorimeter readings — panel operating temperature affects luminance output in measurable ways, especially on OLED where organic emitter efficiency shifts with heat.

Best Practices Before You Touch a Single Setting

Getting the environment right before you open the picture menu is not optional if you want accurate results, because your display is an adaptive output device that responds to the room around it. Skip the prep work and you'll calibrate for conditions that don't represent your typical viewing environment, which means you'll redo the work after the first real movie night.

Room Lighting and Viewing Environment

• Set the room to your actual viewing brightness — not pitch black and not full daylight, but the light level you genuinely use most evenings.
• Disable the ambient light sensor before calibrating; it continuously adjusts your backlight output and will silently invalidate measurements taken at a fixed luminance level.
• Use D65-balanced bias lighting behind the display if you have it, because it gives your visual system a reference white point and dramatically improves your ability to judge neutral gray and flesh tones accurately.
• Turn off any video content playing on your TV's home screen or screensaver during measurement, since active content affects panel temperature and can introduce thermal drift into your readings.

Which Picture Mode to Start From

Start from Movie or Cinema mode — not Standard, and absolutely not Vivid, because Movie mode is the only factory preset that most manufacturers calibrate to any color standard before shipping the unit. Standard mode typically runs 20–30% elevated color temperature targeting the "cool" look that sells displays on showroom floors under fluorescent lighting, and it's a fundamentally wrong starting point for home calibration. The table below shows how the major preset modes compare across the controls you actually care about during a calibration session.

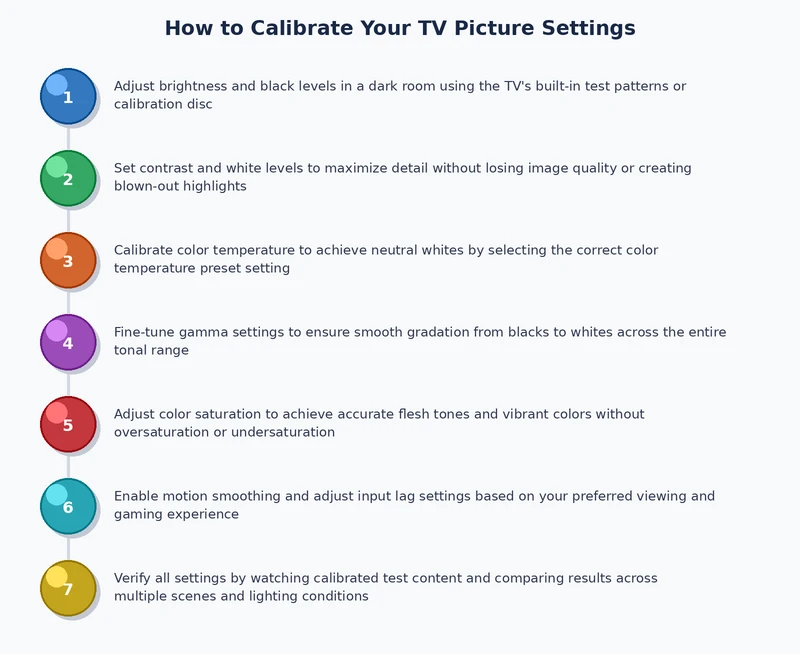

How to Calibrate Your TV Picture Settings Step by Step

Work through these adjustments in the exact order listed — changing contrast before brightness, or color saturation before white balance, will have you chasing your tail because each control interacts with the others in a defined signal chain. The process is methodical rather than creative, and sequence matters as much as the individual target values you're aiming for.

Backlight, Contrast, and Brightness

Backlight is the single control with the biggest perceptual impact and the least connection to color accuracy — set it to whatever feels comfortable for your ambient light level, because it controls raw panel luminance without directly affecting the gamma curve or color gamut. Contrast (sometimes labeled "White Level" on Sony displays) sets the peak white clip point; use a 100% white window pattern and reduce Contrast from maximum just until the window stops clipping into a uniform white field — typically 80–90 on most panels, never at 100. Brightness (Black Level) sets your PLUGE threshold — use the above-black bars on the PLUGE pattern, raise Brightness until the darkest above-black bar becomes just barely distinguishable from the full-black field, then back off one increment.

• Backlight: set by eye to room comfort, revisit last if colors feel incorrect after full calibration.
• Contrast: use 100% white window, reduce from maximum until the clipping artifact disappears completely.
• Brightness: use PLUGE, align the just-above-black bars to the barely-visible threshold — shadow detail lives in this range.
• Local Dimming: enable it on LCD panels but set to Low or Medium — Aggressive mode creates visible blooming halos around bright objects against dark backgrounds.

Color Temperature, Saturation, and Tint

Color Temperature is the most impactful single adjustment after you've locked in your white and black points, and the correct choice is Warm or Warm2 on virtually every consumer display because this preset is the closest factory approximation to the D65 standard without manual 2-point or 10-point white balance correction. Color Saturation at default in Movie mode is usually close to accurate on current flagship panels; if you have color bar patterns, use the blue-only filter method to align all six primary and secondary color bars to equal luminance across the frame. Tint (Hue) corrects green-magenta push in the midtones and rarely needs adjustment on modern panels — leave it at zero unless flesh tones read visibly green or magenta under the blue filter test.

Warning: Never use the Color Space setting "Auto" if your display offers explicit choices like BT.709 and BT.2020 — Auto mode can silently remap the color gamut mid-scene depending on metadata flags embedded in the signal stream.

Sharpness, Noise Reduction, and Motion Settings

Set Sharpness to zero — not low, not medium, zero — because the Sharpness control on consumer displays is an edge-enhancement filter that adds artificial ringing artifacts around every high-contrast edge and makes native 4K content look processed rather than genuinely sharp. Every noise reduction option in your picture menu — Noise Reduction, MPEG NR, Compression Artifact Reduction, and Digital Clean View — applies temporal or spatial blur to hide encoding artifacts, and you should disable all of them completely because on good source material they smear fine texture detail in ways that are objectively measurable. Motion processing belongs in the Off or Filmmaker Mode position for all non-sports content without exception — the soap-opera effect it creates is an artifact of frame interpolation, not a picture quality improvement, regardless of what the marketing language says.

When Calibration Pays Off — and When It Doesn't

Calibration removes the artificial processing layer between you and whatever the hardware is actually capable of — it won't turn a mediocre panel into a flagship one, but it will ensure a flagship panel performs like a flagship panel. Knowing when a full calibration session is worth the effort versus when a quick preset change is sufficient will save you hours of work applied to the wrong problem.

Scenarios Where Full Calibration Is Worth Every Minute

• You've set up a dedicated home theater or dark room viewing environment where color accuracy directly affects your experience of cinematography and color grading in film content.
• You're using the TV as a secondary reference monitor for photo editing, video color grading, or any other color-critical creative work where delta-E errors matter professionally.
• You've just received a new panel and want to establish an accurate baseline before the first 200-hour burn-in period completes, giving you a documented reference point for future drift comparisons.
• You've connected a new AV receiver, soundbar, or surround sound system and want to verify the full HDMI signal chain isn't introducing chroma subsampling errors — pair this with our guide on choosing the right subwoofer for home theater to complete the full AV setup correctly from the start.

When a Quick Preset Is Genuinely Good Enough

If you watch primarily sports, news, and reality programming in a bright living room, switching from Standard to Movie mode and disabling motion processing delivers 80% of the calibration benefit in under two minutes, and spending three more hours with a colorimeter returns diminishing improvements that most viewers genuinely cannot perceive in that content type. Guest rooms, kitchen TVs, and displays used exclusively in Game Mode already run close to the D65 target on most current flagship panels — measure with HCFR first before calibrating, because you may find the panel is already within acceptable delta-E tolerances and calibration is simply unnecessary. When you're casting or mirroring source content to verify your calibration result, our walkthrough of how to mirror an Android screen to TV without Chromecast explains how to confirm the signal format being sent so you know whether you're feeding a calibrated SDR or HDR signal path to your freshly tuned display.

Quick Wins You Can Apply Right Now

These adjustments take under ten minutes collectively and deliver measurable picture improvement on any display, any panel type, any source device — you don't need any calibration hardware to implement them, just the remote in your hand and the picture menu open on your screen.

Disable Factory Defaults That Actively Hurt Picture Quality

• Turn off Dynamic Contrast / Auto Contrast: this control pumps backlight luminance up and down based on average picture level, which creates visible brightness pumping during scene transitions and crushes shadow detail in dark scenes.
• Disable Auto Brightness Control (ABC): the ambient light sensor adjusts your backlight continuously during viewing, which means the picture you calibrated at one brightness level will drift constantly during playback.
• Turn off Color Enhancement / Super Vivid / Flesh Tone correction: these selectively boost saturation in ways that push skin tones orange and blues purple — they are retail demo features, not accuracy features.
• Disable all frame interpolation (TruMotion, MotionFlow, Auto Motion Plus, etc.) for movie and scripted TV content — enable Filmmaker Mode if your display offers it as a dedicated preset.

Calibrate SDR and HDR Profiles Separately

Your display stores independent picture settings for SDR, HDR10, Dolby Vision, and HLG signal formats, and changes made in one profile do not carry over to any other profile — this is correct behavior, because the luminance targets and color gamut standards differ dramatically across formats. SDR targets 100-nit peak white in BT.709, HDR10 targets 400–1000+ nits in a BT.2020 container with DCI-P3 delivery gamut, and treating them identically produces either clipped HDR highlights or crushed SDR shadows. Set up Movie mode properly for SDR first since it's the signal format you'll encounter most often in streaming libraries and legacy disc content, then switch to HDR10 test patterns and configure the HDR profile separately, where Brightness and Contrast interact with EOTF curves rather than the straightforward 2.2 power gamma of SDR. Dolby Vision handles its own tone-mapping through the dynamic metadata stream, so your main job in DV content is simply confirming whether Dolby Vision Dark or Dolby Vision Bright better matches your room's ambient light level.

Frequently Asked Questions

Next Steps

1. Open your TV's picture menu right now, switch to Movie or Cinema mode, and turn off every noise reduction, motion processing, and dynamic contrast option you find — this single step delivers more improvement than any other change you can make.
2. Download the free AVS HD 709 test pattern package, load it via USB or a streaming app, and work through the Contrast, Brightness, and Color Bar sequences using the visual method described in this guide before touching any advanced settings.
3. Photograph every picture submenu with your phone after completing calibration so that a firmware update or accidental factory reset doesn't send you back to square one without a reference point.
4. Open your HDR10 signal profile separately — play an HDR10 test pattern file, confirm the display switches into its HDR mode, and run through Brightness and Contrast again using HDR-specific PLUGE and peak white window patterns.
5. If you want to move from visual calibration to measured accuracy, pick up a Calibrite ColorChecker Display and run HCFR to verify your white balance tracks within delta-E 3 of D65 across the full luminance range before calling the calibration finished.
