How to Layer Heat Transfer Vinyl for Multi-Color Designs

Have you ever peeled back the carrier sheet on a multi-color design, felt that surge of satisfaction — and then watched it crack apart in the wash two weeks later? Layering heat transfer vinyl is one of those skills that looks simple until you try it. The good news is that once you understand the logic behind the process, your layered designs will outlast the garment itself.

The short version: press from the bottom color up, reduce heat with each successive pass, and choose your HTV types with layering in mind. Get those three things right, and you won't lose another design to delamination.

If you've never applied HTV before, spend a few minutes with this step-by-step guide on applying heat transfer vinyl before continuing here. Layering is an intermediate skill that builds directly on the fundamentals of single-color pressing — temperature control, pressure, and peel timing.

Where You're Starting From Changes Everything

What Beginners Get Wrong

Most beginners treat every layer identically — same temperature, same pressure, same press time. That's the core mistake. Each layer you add is sitting on top of adhesive that has already been heat-activated, and that changes how heat moves through the stack. Pressing every layer at full spec temperature doesn't account for that, and you end up with bottom layers that re-activate, shift, or bubble.

The other common beginner error is sloppy weeding. Clean, precise weeding technique is the foundation of every layered design. Any stray vinyl scraps left between cut lines create raised ridges once you stack colors on top. Those ridges prevent the next layer from sitting flat, and you end up with adhesion failures at the worst spots in the design.

What Experienced Crafters Do Differently

Experienced crafters plan the entire layer stack before cutting anything. They decide which colors go on the bottom, which go in the middle, and which sit on top — and they factor in how the heat from each subsequent press will affect the layers already applied.

They also think hard about material selection. Not all HTV types are suitable as foundation layers. Specialty materials like glitter and foil behave very differently from standard smooth vinyl, and mixing them without understanding the rules is a reliable way to ruin an otherwise solid design. We'll get into specifics in the comparison section below.

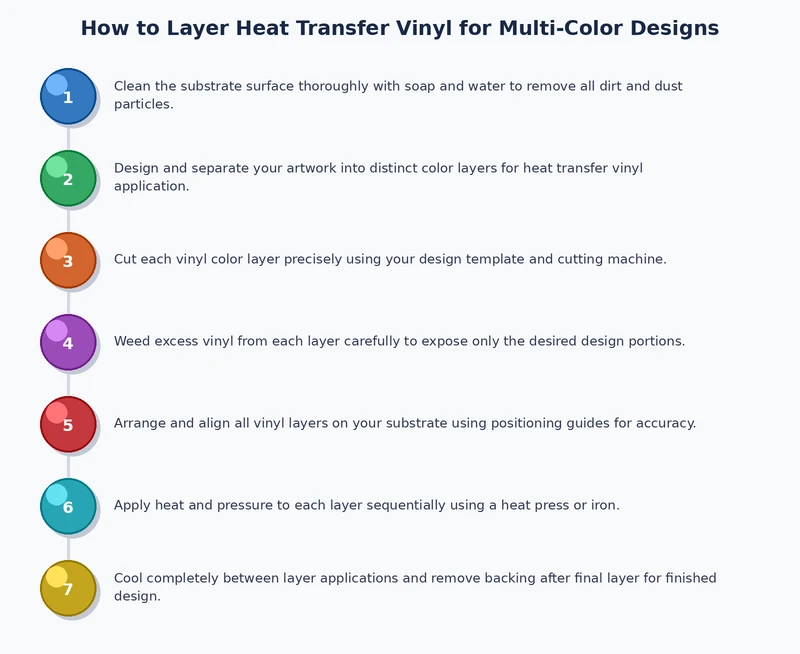

How to Layer HTV: The Right Sequence

Preparing Your Design and Materials

Start by breaking your design into individual color layers in your cutting software. Export each color as a separate cut file and cut them in the order you'll press them — bottom color first, top color last. Weed each piece completely before you press anything.

Use registration marks if your design has tight tolerances or small text. A half-millimeter misalignment is invisible on a simple two-color block design, but it's obvious on detailed artwork or thin letter strokes. Lay your garment flat on a firm pressing surface. A heat-resistant foam pad underneath helps distribute pressure evenly — a soft or squishy surface lets the platen sink unevenly, and that produces patchy adhesion at the edges.

The Pressing Sequence That Actually Works

Press your bottom layer at the manufacturer's full recommended temperature and time — typically 305–320°F for 10–15 seconds for standard smooth HTV. Follow the peel instructions for that specific material, hot or cold, then set the garment aside with no carrier sheet on it.

For every layer after the first, reduce your temperature by 10–15°F and shave 2–3 seconds off the press time. This is the rule that most tutorials skip, and it's the one that matters most. You're preventing the bottom layers from fully re-activating and moving under the pressure of subsequent passes. Keep stepping down slightly with each layer.

Never press a new layer directly on top of glitter HTV. The texture surface breaks the adhesive bond. Always place glitter as your final, topmost layer.

Once all your colors are applied, do one final press over the complete design at reduced heat — about 280–290°F for 5–7 seconds — with a Teflon sheet between the platen and the vinyl. This consolidates the entire stack without overheating any individual layer.

Tips That Make or Break Your Layers

Heat and Pressure Considerations

Pressure gets ignored more than temperature, and it shouldn't. Too much pressure on an already-pressed layer can force the adhesive to migrate, which causes edge lifting. Too little pressure means the new layer never bonds properly in the first place.

The right pressure is firm but not crushing. Your platen should make full, even contact with the surface without deforming the underlying layers. If you're seeing consistent adhesion problems — edges peeling, layers lifting after one wash — calibration is usually the culprit. The guide to common heat press problems covers pressure and temperature calibration in detail and is worth reading before you assume your technique is the issue.

Carrier Sheet Tricks

Always use a Teflon sheet or silicone sheet for the second layer and every layer after that. It distributes heat evenly across the design, protects lower layers from direct platen contact, and prevents the surface texture of specialty vinyl from sticking to your press. Parchment paper technically works, but it's inconsistent — carrier sheet thicknesses vary, and that inconsistency affects heat transfer. A dedicated Teflon sheet is inexpensive and eliminates the variable entirely.

If your design includes glitter HTV as one of the elements, read the comparison between glitter HTV and regular HTV before you start pressing. The peel methods and temperature ranges differ enough that treating glitter the same as standard smooth HTV will cause problems every time.

Choosing the Right HTV Type for Each Layer

HTV Layering Compatibility Table

Different HTV materials behave very differently when stacked. According to the overview of heat transfer vinyl on Wikipedia, the adhesive layer in HTV is thermally activated — meaning each heat press cycle partially re-activates it. That's why managing temperature across layers isn't optional; it's the whole game.

The pattern is clear: smooth vinyl is your workhorse for foundation and middle layers. Specialty materials — anything with texture, sheen, or print detail — belong on top. Build your designs around that rule and your layer choices become obvious before you ever touch the cutting mat.

Building a Repeatable Layering System

Organizing Your Color Library

If you layer HTV regularly, build a physical swatch reference. Take a strip of white cotton and press a small square of every HTV color and brand you own onto it. Write the brand name, color code, press temperature, press time, and peel method directly on the fabric below each swatch. Keep it at your pressing station.

This sounds like homework, but it pays off immediately. When you're designing a three-color project at 10 PM, you don't want to be hunting through brand spec sheets or testing swatches from scratch. Your reference card tells you instantly whether two colors from different brands will layer at compatible temperatures — or whether you need to adjust your approach.

Testing Before You Commit to Production

Run every new layer combination on scrap fabric before pressing a finished garment. Cut a small version of your design — an inch square is enough — and run through the complete pressing sequence. Then wash it once on warm before you consider it production-ready.

One test piece takes five minutes. Ruining a finished shirt because you skipped this step costs you time, materials, and the frustration of having to start over. The math is not complicated. Test everything new. Trust nothing you haven't washed at least once.

Build a small library of tested combinations over time. When you know that Brand A red layers cleanly over Brand B white at 300°F with a 3-second reduction, you can reproduce that result every time without thinking about it. That's the difference between a craft hobby and a reliable production workflow.

Frequently Asked Questions

Master the order, reduce the heat, and let every layer cool — layering heat transfer vinyl is just discipline applied in sequence.
