How to Press Vinyl on Nylon Fabric Without Damage

Our team was midway through a batch of nylon windbreakers when the first transfer bubbled up and peeled away within seconds of cooling — a costly reminder that nylon is not like cotton or polyester, and that the margin for error is razor-thin on synthetic weaves. Understanding how to press vinyl on nylon correctly means controlling three variables simultaneously: temperature, pressure, and dwell time, and getting any single one wrong produces scorched fabric or transfers that lift at the edges within days. For anyone building out a heat press vinyl workflow that includes nylon substrates, the techniques and settings covered here reflect what our team has learned across dozens of real projects.

Nylon is a synthetic thermoplastic polymer with a relatively low melt point, which means the standard cotton pressing temperatures — typically 320–380°F — will distort or melt nylon fibers almost immediately. The safe working range sits between 270°F and 300°F depending on the specific nylon weave, HTV brand, and platen accuracy, and our team has found that most successful transfers land at 275–285°F with considerably lighter pressure than most crafters expect to apply.

Beyond temperature, vinyl selection matters enormously on nylon. Not every heat transfer vinyl on the market is formulated to bond at low temperatures, and using the wrong product on nylon produces adhesion failures that no amount of additional pressing will correct. Our experience across nylon sports jerseys, track jackets, and outdoor gear points to a specific set of vinyl types and techniques that consistently deliver clean, durable results without damaging the substrate.

Essential Gear for Pressing Vinyl on Nylon

Starting with the right equipment eliminates most nylon pressing failures before they happen. Our team's standard nylon kit includes a handful of non-negotiable items that every serious crafter should have ready before attempting the first press on a synthetic weave.

• Clamshell or swing-away heat press with verified temperature accuracy of ±5°F or better across the full platen surface
• Teflon sheet or silicone pad placed over the vinyl to diffuse heat and prevent direct platen contact with nylon fibers
• Low-temp HTV specifically rated for synthetic fabrics — packaging should indicate "nylon compatible" or list an activation temperature below 300°F
• Digital infrared thermometer for cross-checking actual platen temperature against the press readout, which frequently drifts on budget machines
• Firm silicone foam pressing pad placed beneath the substrate to cushion the nylon weave and distribute pressure evenly
• Parchment paper as a secondary barrier layer for an additional margin of protection against heat spikes

Platen size plays a meaningful role in pressure uniformity across larger nylon garments, and our detailed breakdown of what size heat press to choose covers the tradeoffs between platen dimensions and even contact across curved or seamed nylon panels.

Heat Press Settings for Nylon

Every nylon project our team runs starts with a test swatch pressed at the low end of the recommended range, then adjusted incrementally upward based on adhesion results.

• Temperature: 270–300°F — the 275–285°F range works consistently across ripstop, track jacket weaves, and lightweight shell nylon
• Pressure: Light to medium — approximately 20–30 PSI, considerably lower than typical cotton workflows
• Dwell time: 10–15 seconds for most low-temp HTV products; never exceed 15 seconds on the first press
• Peel method: Cold peel universally, regardless of the vinyl manufacturer's instructions for other substrates

Vinyl Types That Bond Reliably to Nylon

Vinyl selection is where most beginners spend their first real tuition in ruined materials, and our team has narrowed the field down to a short list of reliable options.

• Low-temp HTV (Siser EasyWeed, ThermoFlex Plus, Chemica HotMark) — first choice for virtually all nylon applications due to low activation temperatures and flexible adhesive systems
• Stretch HTV — required for nylon-spandex blends and activewear substrates that elongate under pressure and movement
• Glitter HTV — works on nylon with additional care; our team's glitter HTV guide covers the specific adjustments needed to prevent the thicker carrier from scorching nylon fibers at low temperatures
• Avoid entirely: thick flock vinyl, puff vinyl, and most reflective films — all require temperatures that exceed nylon's safe working range

Quick Wins: Simple Steps That Protect Nylon Fabric

Before running a production batch on nylon, our team applies a five-minute pre-press checklist that prevents the most common failure modes encountered when learning how to press vinyl on nylon for the first time.

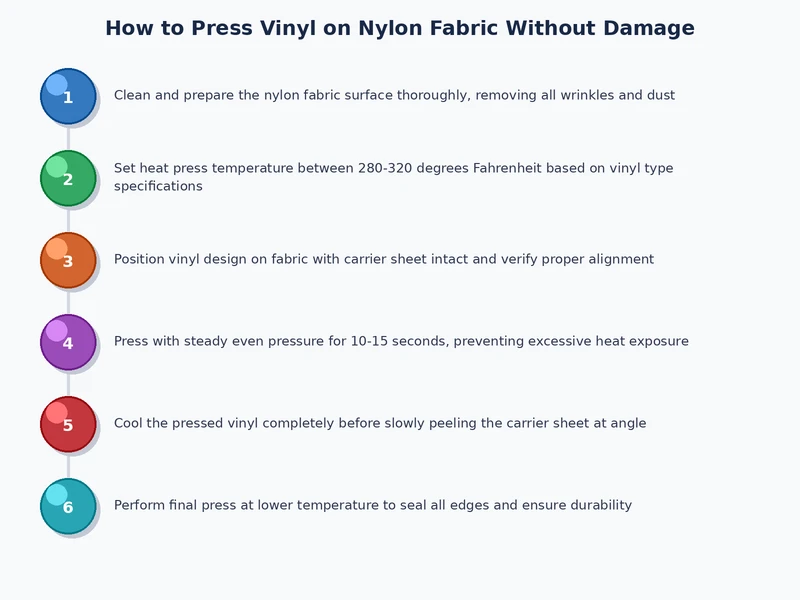

The Teflon Sheet Method

A Teflon sheet placed directly over the vinyl before closing the platen is, in our team's experience, the single most impactful habit in any nylon workflow — it acts as both a heat diffuser and a non-stick barrier that prevents adhesive bleed through to the platen surface.

1. Pre-press the nylon substrate for 3–5 seconds at target temperature to remove ambient moisture and surface wrinkles
2. Position the cut vinyl design carrier-side up, ensuring edges are flat against the nylon surface
3. Lay a clean Teflon sheet over the entire design area with at least a half-inch of overlap on each side
4. Press at 275–285°F for 10–12 seconds with light, even pressure — resist the urge to bear down
5. Allow the substrate to cool completely — typically 60–90 seconds — before attempting the cold peel

Pro tip: A brief pre-press pass on nylon drives out residual moisture that would otherwise create steam pockets beneath the vinyl, and our team has found this single preparatory step dramatically reduces edge-lifting failures on track jackets and lightweight shell jackets.

Pre-Press Routine Checklist

Our standard pre-press checklist for nylon projects covers the basics that consistently make a measurable difference in transfer quality and repeatability.

• Verify actual platen temperature with an infrared thermometer — press readouts on budget machines frequently read 10–20°F higher than actual surface temperature
• Clean the platen surface before every nylon session, since adhesive residue from previous presses transfers onto nylon instantly; our heat press cleaning guide covers the full protocol with the right solvents and technique
• Confirm the substrate is wrinkle-free and centered on the lower platen, with no folded edges beneath the design area
• Inspect the vinyl carrier sheet for tears or creases that would cause uneven release and partial adhesion failure

Proven Techniques for Clean, Lasting Transfers

After processing dozens of nylon projects at various scales, our team has refined a set of techniques that consistently produce transfers that survive repeated wash cycles and active use without peeling or cracking along stress points.

Layering and Multi-Color Designs

Multi-layer vinyl designs on nylon require deliberate pacing because each additional press cycle compounds cumulative heat stress to the substrate, and the total thermal load across all layers must stay within nylon's tolerance.

• Complete all inner-layer elements first, pressing each at the minimum viable dwell time — 8–10 seconds per layer
• Allow the substrate to return to room temperature between each press cycle, typically 2–3 minutes of passive cooling
• Apply the top-layer vinyl last at full standard nylon settings — 280°F, 10–12 seconds, light pressure
• Keep total cumulative dwell time under 45 seconds across all layers on the same area of nylon fabric

For multi-piece designs that require precise alignment across nylon panels, the techniques in the transfer tape guide translate well to HTV work on slippery nylon surfaces where designs shift during placement.

Working With Stretch Nylon

Stretch nylon — common in activewear, compression garments, and sports uniforms — introduces added complexity because the fabric elongates during wear, and transfers must accommodate that movement without cracking along flex lines.

• Use only stretch-rated HTV with a flexible adhesive layer specifically designed to move with the substrate under tension
• Press on a firm foam pad rather than directly onto a hard lower platen to avoid compressing the stretch fibers into an unnaturally dense configuration
• Reduce pressure by an additional 10–15% compared to standard non-stretch nylon settings
• Conduct a flex test on the test swatch before committing to a full production run — fold the pressed area sharply and check for any micro-cracking in the vinyl film

Similar challenges appear with hooded nylon garments where curved seams and thick hems create uneven pressure across the platen; the hoodie heat pressing guide covers the specific approach for maintaining consistent contact across those transitions.

Mistakes That Destroy Nylon Transfers

The majority of nylon pressing failures our team has encountered trace back to a concentrated set of repeatable errors — the kind that are straightforward to avoid once identified but expensive to discover through trial and error on finished garments.

Temperature Errors

• Pressing at cotton temperatures (320°F or above): melts nylon fibers almost immediately, producing irreversible distortion and a garment that cannot be salvaged
• Failing to verify actual platen temperature: consumer heat presses frequently read 10–20°F above calibrated surface temperature, pushing what appears to be 280°F into the danger zone for nylon
• Pressing below the activation threshold: temperatures under 265°F typically fail to activate the adhesive layer fully, producing a transfer that peels cleanly off within the first wash cycle

Pressure and Technique Missteps

• Excessive closing pressure: over-compresses nylon fibers, creating a permanent crushed texture and forcing adhesive through to the reverse side of the substrate
• Uneven pressure across the platen: produces partial bonds where the design corners or edges lift while the center remains adhered, a failure pattern common on smaller presses with platen flex
• Hot peel on nylon: pulling the carrier sheet while the vinyl is still warm breaks the initial bond before it has fully set, lifting adhesive away from the nylon surface along with the carrier
• Skipping the Teflon sheet: direct platen-to-vinyl contact at any temperature above 270°F risks adhesive transfer onto the platen and uneven heat distribution across the design

Troubleshooting Nylon Pressing Problems

When a nylon transfer doesn't come out right, the failure pattern itself almost always identifies the cause — and most issues are recoverable with a targeted corrective press at adjusted settings rather than requiring a complete restart.

Peeling and Edge Lifting

Edge lifting is the most common nylon-specific failure mode, and our team approaches it through a structured diagnostic before applying any corrective press.

• Primary causes: insufficient temperature, excess moisture in the substrate before pressing, or a premature warm peel of the carrier sheet
• Corrective press: re-press for 5–8 additional seconds at 280°F with a fresh Teflon sheet, then apply firm finger pressure along the lifted edges immediately after opening the platen while the vinyl is still slightly warm
• Prevention protocol: pre-press every substrate, always cold peel, and verify platen temperature before every session

Scorching and Discoloration

• Primary causes: temperature set too high, dwell time extended beyond 15 seconds, or direct platen contact with nylon fibers due to a missing or misaligned Teflon sheet
• Recovery options: minor surface yellowing sometimes fades after a cold-water wash cycle; melted or distorted nylon fibers are permanent and cannot be reversed
• Prevention: Teflon sheet in place at all times, hard ceiling of 300°F on all nylon substrates, and a strict 15-second maximum dwell time regardless of transfer size

Budgeting for a Nylon-Ready Heat Press Setup

Setting up a heat press workflow specifically optimized for nylon substrates requires a modest incremental investment beyond a basic cotton-oriented setup, and our team has found the added cost is recovered quickly through the reduction in ruined materials and re-presses.

Entry-Level vs. Professional Setup Costs

Entry-level setups work reliably for small personal batches where a single ruined garment is an acceptable learning cost, while mid-range equipment handles consistent production runs with meaningfully better temperature accuracy and platen uniformity. Professional-grade presses justify the investment when working with high-value nylon garments or running commercial volumes where one defective press cycle costs more than the equipment upgrade would have.

Building a Long-Term Nylon Vinyl Workflow

A reliable system for how to press vinyl on nylon is built incrementally through systematic documentation — recording the exact temperatures, dwell times, vinyl brands, and substrate types that produced successful results, so identical outcomes can be reproduced consistently across future batches without repeated test presses.

Equipment Maintenance and Care

Nylon projects place specific demands on heat press equipment, particularly the platen surface, because synthetic fibers and adhesive residue accumulate more aggressively than they do during cotton workflows.

• Clean the platen surface after every 5–10 nylon press sessions using appropriate adhesive removers — our heat press cleaning and maintenance guide details the safest solvents and application method for each platen coating type
• Inspect Teflon sheets for embedded adhesive residue before every session — contaminated sheets transfer residue directly onto subsequent nylon substrates under heat and pressure
• Recalibrate the temperature readout monthly or whenever output quality drops without an obvious cause, since thermocouple drift is common in consumer-grade machines used across high-volume sessions
• Store Teflon sheets flat between sessions to prevent warping that creates uneven heat distribution during pressing

Wash Care for Vinyl-Pressed Nylon

The longevity of any vinyl transfer on nylon depends as heavily on post-press wash care as it does on the quality of the initial application, and this is where many otherwise successful presses fail prematurely in the field.

• Turn garments inside out before washing to minimize direct mechanical abrasion against the vinyl surface from agitator movement
• Wash on cold cycles exclusively — hot water accelerates adhesive breakdown at the vinyl-to-nylon bond interface with each cycle
• Avoid fabric softener in the wash cycle — softener residue degrades HTV adhesion systematically across repeated wash exposures
• Hang or lay flat to dry; tumble dryer heat introduces the same thermal cycling that weakens the bond over time, even at low heat settings

For anyone processing nylon activewear in higher volumes, our team finds that the portable washing machine buying guide provides practical context on agitation types and cycle intensity settings that are least damaging to heat-pressed synthetic garments in a home or small-studio environment.

Frequently Asked Questions

Final Thoughts

Pressing vinyl on nylon rewards careful preparation and disciplined settings far more than it rewards experience or intuition, and our team's recommendation for anyone ready to start is to run a calibrated test swatch on the actual nylon substrate before touching a finished garment. Dial in the temperature with a verified infrared thermometer, use a Teflon sheet without exception, and cold peel every single time — those three habits alone will put most nylon projects in the success column from the first press.
