How to Set Up a Ham Radio Shack for Beginners

I spent my first three months as a licensed ham operator transmitting from a folding card table in my garage. The rig sat on a wobbly surface, my power supply hummed against a metal shelf, and my antenna feedline ran through a cracked window. It worked — barely. Learning how to set up a ham radio shack properly would have saved me weeks of frustration and a fried finals transistor.

Whether you just passed your Technician exam or you're still working toward your license, building a dedicated station is the single biggest upgrade you can make. A well-planned shack turns scattered gear into a reliable operating position. This guide walks you through every decision — from choosing a room to grounding your equipment — so you get it right the first time. For more radio gear reviews and guides, we've got you covered.

What Actually Goes Into a Ham Radio Shack

A ham radio shack is simply a dedicated space for your station. It doesn't need to be a separate room. A corner of a spare bedroom, a section of your garage, or even a large closet works. The key is permanence — a place where your gear stays connected and ready.

Space Requirements

You need less space than you think. Here's what to account for:

• Desk surface: At minimum 48 × 24 inches. You'll fill it faster than you expect.
• Ventilation: HF transceivers generate real heat. Leave 4–6 inches behind the rig for airflow.
• Cable routing: Plan a path from your antenna entry point to the desk. Shorter coax runs mean less signal loss.
• Seating: You'll spend hours here during contests or ragchews. Get a proper chair.
• Lighting: A desk lamp with adjustable brightness beats overhead fluorescents. Fluorescent fixtures can generate RF interference.

Electrical Considerations

Your shack needs a dedicated 20-amp circuit at minimum. Running a 100-watt HF transceiver, a computer, monitors, and accessories off a shared household circuit invites breaker trips. If you plan to run an amplifier later, have an electrician install a 30-amp or 50-amp circuit now.

• Use a surge-protected power strip rated for at least 15 amps.
• Keep all power cables away from coax and audio cables to reduce interference.
• Label every cable at both ends. Future you will be grateful.

Essential Gear for Your First Station

Core Components

Here's what you need to get on the air. Nothing more, nothing less.

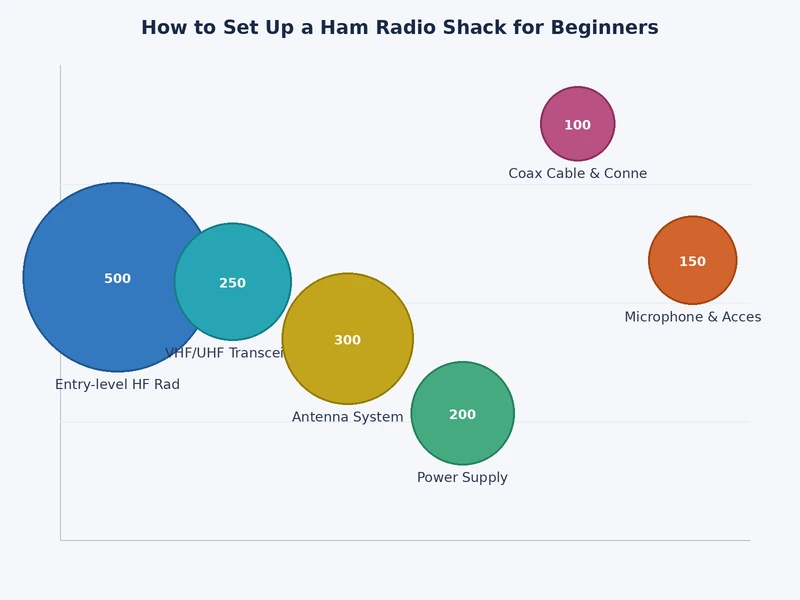

A complete beginner HF station runs between $900 and $2,000. The antenna is where most newcomers under-invest. A $1,200 radio connected to a poor antenna will underperform a $600 radio with a well-placed dipole every single time.

Accessories That Pay for Themselves

• Logging software: Ham Radio Deluxe, N1MM+, or the free WSJT-X for digital modes.
• Clock: A UTC clock on the wall. Logging in local time is a rookie move.
• Dummy load: Test your transmitter without radiating a signal. Essential for tuning and troubleshooting.
• Ferrite chokes: Snap-on ferrites for coax and power cables eliminate common-mode current — the source of most RFI complaints.
• Backup microphone: Stock mics work fine, but a desk mic with compression makes a noticeable difference in audio reports.

Start with a simple wire antenna and a known-good transceiver. You can always upgrade the antenna later — it's the one component you'll replace multiple times as your skills grow.

Choosing the Right Setup for How You Operate

How you set up your shack depends entirely on what you want to do on the air. There's no universal best configuration.

HF vs VHF/UHF Stations

• HF (1.8–30 MHz): Long-distance communication. Requires larger antennas, an antenna tuner, and more desk space. This is where most ham operators eventually settle.
• VHF/UHF (144/440 MHz): Local and regional communication via repeaters. Smaller antennas, simpler setup. Great starting point if you hold a Technician license.
• Dual-band mobile rig as base: Mount a VHF/UHF mobile radio at your desk with a proper power supply and external antenna. Low cost, effective for local nets.

If you're comparing handheld options for VHF/UHF, our General Class license guide covers which bands open up when you upgrade — and that directly affects which base station gear makes sense to buy.

Digital Mode Stations

Digital modes like FT8, JS8Call, and DMR are exploding in popularity. A digital station adds a few requirements:

• Computer: Any modern laptop or desktop handles FT8. Dedicated is better than shared.
• Audio interface: Many modern rigs (IC-7300, FT-DX10) have built-in USB audio. Older rigs need a SignaLink or similar interface.
• CAT control cable: Lets software control your radio's frequency and mode.
• Time sync: FT8 requires your PC clock accurate to ±1 second. Use Meinberg NTP or Dimension 4.

Station Layout and Grounding Done Right

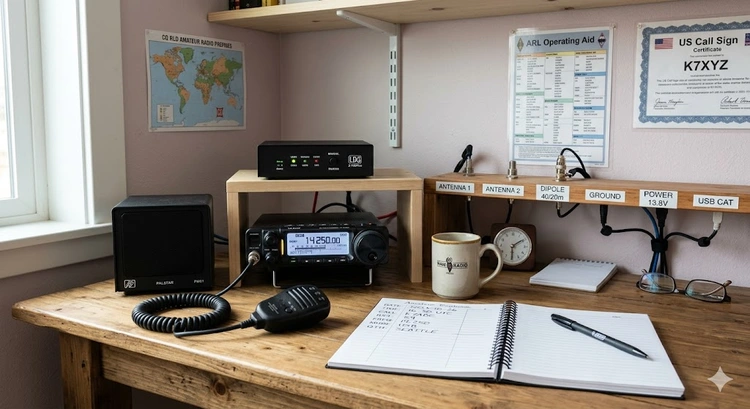

Desk Arrangement

Your operating position should feel natural during long sessions. Follow this layout:

1. Transceiver at center, angled slightly toward you. The display and VFO knob should be at arm's reach.
2. Power supply underneath or beside the desk. It generates heat and fan noise — keep it low and ventilated.
3. Antenna tuner and SWR meter to one side of the transceiver. You'll glance at them often.
4. Computer monitor above or beside the rig if you run digital modes or logging software.
5. Microphone on a boom arm or desk stand to your dominant side.
6. Headphones on a hook within reach. You'll switch between speaker and headphones constantly.

Route all cables behind the desk using cable trays or Velcro ties. A rat's nest of cables isn't just ugly — it creates ground loops and makes troubleshooting a nightmare.

Grounding and Lightning Protection

Grounding is non-negotiable. Poor grounding causes RF in the shack, audio hum, and in the worst case, lightning damage.

• Single-point ground panel: Mount a copper bus bar near your antenna entry point. Every piece of equipment connects to this panel with short, flat copper braid — not wire.
• Ground rod: Drive an 8-foot copper ground rod outside your shack wall. Bond it to your home's electrical ground per ARRL grounding guidelines.
• Lightning arrestors: Install polyphaser or gas-discharge arrestors on every coax and rotor cable at the entry point.
• Disconnect routine: When you're not operating, physically disconnect antennas from the rig. No arrestor is 100% effective against a direct strike.

A ground rod that isn't bonded to your home's electrical ground creates a potential difference during a strike — making things worse, not better. Bond them together with #6 copper or heavier.

Beginner Mistakes That Cost You Time and Money

Equipment Errors

• Buying the most expensive rig first. A $3,000 transceiver doesn't make you a better operator. Start mid-range and learn what features actually matter to you.
• Skipping the antenna tuner. Even resonant antennas drift with weather and aging. A tuner protects your finals and gives flexibility.
• Using cheap coax on long runs. RG-58 loses 3 dB per 100 feet at 30 MHz — half your power gone before it reaches the antenna. Use LMR-400 for runs over 50 feet.
• Ignoring common-mode choke. A 1:1 current balun at the antenna feedpoint prevents coax shield radiation and keeps RF out of your shack.

Installation Blunders

• Running coax through a window. Crushed coax has high SWR and eventually fails. Install a proper bulkhead panel or wall feedthrough.
• Daisy-chaining power strips. This is a fire hazard and a noise source. One quality power strip per circuit.
• Mounting antennas too low. A dipole at 15 feet works, but at 35 feet it transforms into a different antenna with far better DX performance. Height matters more than antenna type for HF.
• No RF chokes on power cables. Your switching power supply can push noise back into the house wiring. A few snap-on ferrites solve this.
• Forgetting antenna insurance. Check your homeowner's policy. A tower or large antenna may need a rider or separate coverage.

Ham Shack Myths You Can Safely Ignore

Cost Myths

• "You need $5,000 to get started." A complete VHF/UHF station costs under $300. A functional HF station runs $900–$1,500. Used gear from ham swaps cuts that further.
• "You need a tower and beam antenna." Wire antennas — dipoles, end-feds, random wires with a tuner — work remarkably well and cost under $100. Many DXers run wire antennas exclusively.
• "You need a dedicated room." A 4-foot section of desk in any room works. Closet shacks are a proud tradition in amateur radio.

Technical Myths

• "Higher wattage means better signal." Going from 100W to 1,000W gains you less than two S-units. A better antenna gives you the same gain for a fraction of the cost.
• "Digital modes are killing ham radio." FT8 has brought thousands of new operators into the hobby. It's a gateway, not a replacement for voice operation.
• "You need a General license before building a shack." Technicians have full privileges on VHF/UHF and limited HF access on 10, 15, 40, and 80 meters. Build your shack now and upgrade your license as you grow.
• "Grounding doesn't matter for receive-only." Ground loops cause hum and noise on receive. Proper grounding improves your noise floor regardless of whether you're transmitting.

The best ham radio shack isn't the one with the most expensive gear — it's the one that's set up correctly, grounded properly, and actually gets used.
