How to Set Up a Mesh Wifi System Step by Step

Learning how to set up mesh wifi is simpler than most guides suggest: connect the primary node to your modem via Ethernet, run the manufacturer's app, and follow the node-pairing sequence. That is the entire process. Before committing to a system, read our comparison of mesh wifi vs a traditional router to confirm the architecture suits your floor plan and traffic profile.

Mesh networks distribute multiple access points — called nodes — across your space under a single unified SSID. Your devices roam between nodes without manual switching. The system handles band steering and handoffs automatically. This is what separates true mesh from the extender-and-repeater patchwork most homes still run.

The networking section on PalmGear covers routers, switches, and access points in depth. This guide covers the setup process exclusively — from unboxing to verified whole-home coverage.

What Mesh Wifi Actually Is

The Technology Behind Distributed Nodes

Mesh wifi uses a mesh network topology in which each node acts as both a client and a relay. Traffic routes dynamically through whichever path offers the lowest latency and highest throughput at any given moment. Consumer systems — Eero Pro, Google Nest Wifi Pro, Netgear Orbi — abstract this complexity behind a single mobile app. You never configure routing tables or channel plans manually.

The backhaul is the channel nodes use to communicate with each other. It is the most critical performance variable in any mesh deployment. Dedicated backhaul — provided by a separate tri-band radio or a wired Ethernet run — outperforms shared backhaul by a wide margin. A shared 2.4 GHz backhaul cuts client throughput by roughly 50% at each hop. Always choose a system with dedicated backhaul.

How Mesh Differs from Extenders and Repeaters

Extenders create a second SSID. You switch between networks manually. Mesh does not operate this way. The entire fabric runs under one SSID; the system handles node handoffs automatically. Repeaters retransmit every packet twice on the same channel, halving effective bandwidth. Mesh avoids this penalty entirely with dedicated backhaul radios. The architectures are fundamentally different — not cosmetically different.

Getting Started Fast: The First Steps That Matter

Pre-Setup Checklist

Complete every item on this list before opening the app:

• Your ISP modem configured in bridge mode
• An Ethernet cable for the primary node connection to the modem
• Power outlets identified at each planned node location
• ISP account credentials available if PPPoE authentication is required
• The manufacturer's app installed and an account created

Bridge mode is non-negotiable. Skipping it produces double NAT — two devices simultaneously performing network address translation. Double NAT degrades VoIP quality, breaks peer-to-peer gaming connections, and makes port forwarding unreliable. Most ISPs enable bridge mode on request. Call yours before proceeding if you are unsure.

Put your ISP modem in bridge mode before connecting the primary mesh node. Double NAT causes subtle, persistent problems that repositioning nodes will never fix.

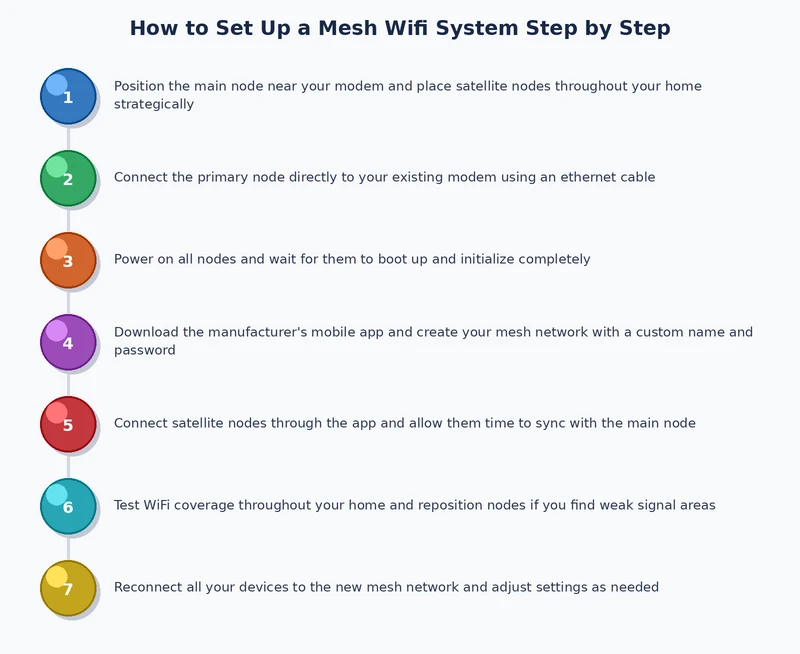

Step-by-Step Setup for Maximum Performance

Placing Your Nodes Strategically

Placement determines 80% of your mesh system's real-world performance. Follow these rules precisely:

• Place the primary node within 10 feet of your modem
• Position satellite nodes at the midpoint between the primary and the coverage edge — not at the edge
• Keep nodes elevated, in open areas, away from microwaves and cordless phone bases
• Never place a node inside a cabinet, behind a concrete wall, or in a closet
• Maintain line-of-sight between nodes whenever the floor plan allows

In a two-story home, one node per floor is the baseline. In a single-level home over 2,000 square feet, use three nodes in a triangular arrangement. The geometry matters because backhaul signal degrades predictably with distance and physical obstructions.

Configuring the Primary Node

Connect the primary node to your modem via Ethernet. Power it on. Open the app and sign in. The app locates the node via Bluetooth or Wi-Fi Direct. Select your WAN connection type — DHCP for most ISPs, PPPoE if your provider requires credential-based authentication. Set your SSID and password. Avoid special characters in the SSID name; certain legacy clients misparse them and fail to associate.

Adding Satellite Nodes

Power each satellite node within range of the primary during initial pairing. The app detects and onboards each unit sequentially. After pairing completes, carry each node to its permanent location. Run a speed test at each final position using the app's built-in diagnostic or an external tool. Backhaul signal strength between nodes should read above -67 dBm. Anything below -70 dBm is unstable under load.

System Specs Comparison

The four systems below represent the current top tier for residential mesh deployment. Compare them against your coverage requirements before purchasing.

If you manage wired devices behind the mesh — a NAS, smart home hub, or gaming console — review our guide on managed vs unmanaged switches to determine whether a switch behind your primary node is warranted.

When Mesh Wifi Makes Sense — and When It Does Not

Use Mesh When

• Your home exceeds 2,000 square feet
• You have multiple floors or thick masonry walls between areas
• Seamless roaming is required for VoIP calls or video conferencing
• You want unified device management through a single interface
• You rent and cannot run Ethernet through walls or ceilings

Do Not Use Mesh When

• Your home is under 1,200 square feet — a single high-performance router outperforms mesh at lower cost
• You already have CAT6 runs to every room — a wired access point system is the superior architecture
• Your modem cannot enter bridge mode — resolve that first
• You need VLAN segmentation, custom QoS policies, or BGP — consumer mesh apps do not provide these controls

Common Mesh Wifi Misconceptions, Corrected

More Nodes Is Always Better

This is false. Excessive nodes on a shared backhaul create congestion. Roaming handoffs become erratic when nodes are positioned too close together. Use the minimum number of nodes required to cover your space. Add nodes only after speed tests confirm a persistent dead zone that repositioning cannot resolve.

Mesh Eliminates the Need for Ethernet

Wired Ethernet backhaul — physically connecting nodes via Ethernet cable rather than wirelessly — is the single largest performance upgrade available in any mesh system. Every current system supports it. If you can run even one Ethernet cable to a satellite node, run it. Wireless backhaul is a compromise dictated by installation constraints, not a feature you should prefer.

All Wi-Fi 6E Systems Are Equivalent

They are not. Processor speed, RAM, antenna configuration, and firmware quality vary significantly between manufacturers and price tiers. A budget Wi-Fi 6E system with a weak CPU and poor software delivers worse real-world performance than a premium Wi-Fi 6 system with dedicated backhaul and a capable routing engine. Evaluate total system architecture, not the Wi-Fi generation label alone.

Diagnosing and Fixing Mesh Wifi Problems

Slow Speeds at Satellite Nodes

Run a speed test at the primary node first. If speeds are low there, the problem is your ISP connection or modem — not the mesh fabric. If speeds are acceptable at the primary but degraded at satellites, the backhaul signal is the bottleneck. Move the satellite closer to the primary, or establish a wired backhaul connection. Do not add more nodes before diagnosing the existing signal path.

Devices Failing to Roam

Sticky clients — devices that refuse to hand off to a closer node — are the most common complaint in mesh deployments. Most systems implement 802.11r, 802.11k, and 802.11v to facilitate roaming, but client-side implementation varies. Force a reconnection by toggling airplane mode on the affected device. If the problem persists, locate the roaming sensitivity or band steering setting in your mesh app and increase the aggressiveness.

Intermittent Drops

Check for firmware updates before investigating hardware. Outdated firmware accounts for the majority of intermittent drop reports. If firmware is current, inspect backhaul signal strength in the app's diagnostic view. Readings below -70 dBm indicate an unstable backhaul link. Reposition the affected node or introduce a wired backhaul segment. Never treat node rebooting as a permanent solution — it masks the symptom without addressing the signal path.

Maintaining and Scaling Your Mesh Network

Firmware and Security Hygiene

Enable automatic firmware updates immediately after setup. Mesh systems receive active security patches; manual update cycles create vulnerability windows. Change your admin credentials from the manufacturer defaults on day one. Default credentials are publicly documented and actively exploited in residential network attacks. Use a unique, complex password for the admin interface — separate from your Wi-Fi passphrase.

Scaling as Your Footprint Grows

Purchase a system with a large, actively maintained ecosystem. Eero, Google, and Netgear Orbi all support backward-compatible node additions years after initial purchase. Avoid discontinued product lines — they offer no upgrade path when your coverage requirements expand. When adding nodes, re-run a full signal strength audit across the entire mesh fabric. New nodes affect backhaul routing for existing nodes, and the optimal placement geometry changes with each addition.

Understanding how to set up mesh wifi correctly the first time prevents the cascading configuration debt that plagues most home networks. Every device you add — from a home theater system to a smart appliance — performs better on a properly designed mesh foundation than on a patched-together legacy setup.
