How to Set Up a Subwoofer with Your Soundbar
by William Sanders
Nearly 65% of soundbar owners report dissatisfaction with their bass output — and the root cause is almost always improper subwoofer integration. Knowing how to set up a subwoofer with your soundbar correctly transforms an average listening experience into genuine home theater performance. For a broader look at audio and video gear, the audio and video category on PalmGear covers everything from soundbars to streaming adapters. This guide walks through every phase of the process, from hardware selection through long-term calibration, so the subwoofer earns its place in any room.
Modern soundbars ship with wireless subwoofers as the default configuration. Brands like Samsung, Sonos, LG, and Bose have streamlined the pairing process — but standardization doesn't eliminate the setup variables that define bass quality. Placement, crossover frequency, phase alignment, and room acoustics all shape the final result. A subwoofer positioned against the wrong wall or tuned to the wrong crossover point delivers muddy, disconnected low-end regardless of price point.
The process follows a clear sequence: connect, position, calibrate, then optimize. Each stage builds on the previous one. Most problems home theater users report — bass that booms without definition, or a subwoofer that sounds detached from the soundbar's midrange — trace back to rushing through these steps or skipping them entirely.
Contents
What You Need Before Getting Started
Required Hardware and Cables
Most current soundbar-subwoofer combos communicate wirelessly over a proprietary 2.4GHz or 5.8GHz radio link. That means the primary hardware requirement is power — both units plug into a standard wall outlet. For wired setups, the connection runs through a single RCA cable to the soundbar's dedicated LFE (Low Frequency Effects) output. Checking which output the soundbar uses before purchasing a cable prevents a wasted trip.
A few tools simplify the calibration phase significantly. A free SPL meter app on a smartphone measures output levels at the listening position accurately enough for home theater work. A tape measure helps with subwoofer placement calculations. Some soundbar systems — Sonos Arc, Samsung HW-Q series, LG SP9YA — include automated room correction via a companion app, which replaces manual SPL measurement for those platforms entirely.
Users who experience persistent audio drop issues after setup should also check how to fix no sound on Windows if the soundbar connects to a PC source, since driver conflicts can mimic hardware-level subwoofer problems and send users chasing the wrong fix.
Understanding Crossover Frequency
The crossover frequency determines where the soundbar's woofers hand off bass duties to the subwoofer. Most manufacturers recommend 80Hz as a starting point — this is the THX reference standard for home theater audio. Smaller soundbars with limited low-end extension benefit from a higher crossover, often 100–120Hz. Larger soundbars with 3.1 or 5.1 configurations can reach down to 60Hz before handing off duties.
Setting the crossover too low creates a gap in the frequency response — the soundbar can't reproduce the frequencies below its limit, and the subwoofer isn't picking them up either. Setting it too high causes overlap, producing a thick, slow bass response. Both errors are immediately audible and fully correctable.
How to Set Up a Subwoofer with Your Soundbar Step by Step

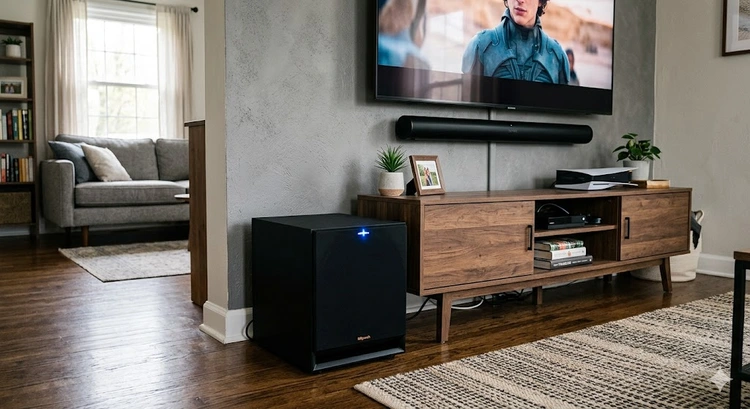

Wireless Pairing Procedure
Wireless subwoofers from the same brand as the soundbar pair automatically in most cases. Power both units on. The subwoofer enters pairing mode — indicated by a flashing LED — and links within 10–30 seconds. If auto-pairing fails, holding the pairing button on the subwoofer's rear panel while the soundbar is in standby triggers a manual link sequence.
Third-party wireless subwoofers require a transmitter module connecting to the soundbar's LFE output via RCA. The transmitter converts the analog signal to wireless. Latency on quality transmitters like the Monoprice SSVC-6 or SVS SoundPath stays under 30ms — below the threshold of perceptual audio-video sync issues at normal viewing distances.
Wired Subwoofer Connections
Wired connections deliver zero-latency signal transmission and eliminate wireless interference entirely. The soundbar's dedicated subwoofer output — labeled "Sub Out" or "LFE" — runs a single RCA cable directly to the subwoofer's LFE input. No Y-splitters, no adapters. One cable handles the full bandwidth required.
Active (powered) subwoofers have the amplifier built in — the vast majority of consumer soundbar-paired subs fall into this category. Passive subwoofers require a separate amplifier in the signal chain. Connecting the source device to the soundbar first, then the soundbar to the subwoofer, keeps signal routing clean and simplifies troubleshooting. For users connecting the soundbar to a TV for streaming from a phone or tablet, mirroring an Android screen to a TV without Chromecast covers source connectivity options that feed directly into this kind of audio chain.
Initial Level and Crossover Settings
After pairing, set the subwoofer volume dial to its 12 o'clock position. Set the crossover to 80Hz. Play a calibration tone or a bass-heavy music track at reference listening volume. Measure output at the primary listening position with an SPL meter app. The subwoofer level should match the soundbar's output within ±3dB. Adjust the subwoofer's gain dial until the levels align at that position.
| Soundbar Configuration | Recommended Crossover | Subwoofer Gain Start | Target Level Difference |
|---|---|---|---|
| 2.0 (no built-in sub driver) | 100–120Hz | 50% (12 o'clock) | ±3dB from soundbar |
| 2.1 (built-in sub driver) | 80–100Hz | 40–50% | ±2dB from soundbar |
| 3.1 or 5.1 (wide-range) | 60–80Hz | 50% | ±2dB from soundbar |
| Dolby Atmos (height channels) | 80Hz (THX standard) | 50% | ±1dB from soundbar |
Placement and Calibration Mistakes That Hurt Performance
Room Placement Errors
Subwoofer placement defines the bass character of the entire room. Corner placement amplifies output by up to 6dB due to boundary reinforcement — impressive in isolation, but it creates standing waves that make bass uneven across the room. Front-wall placement, on the same wall as the TV and soundbar, keeps bass timing coherent with the soundbar's midrange drivers.
The subwoofer crawl method is the most reliable placement technique available without measurement software. Place the subwoofer at the primary listening position and play a continuous low-frequency tone between 40–80Hz. Walk slowly along the front wall and side walls while listening. The position where bass sounds most even and defined is the optimal subwoofer location. It consistently outperforms guesswork and matches results from professional acoustic measurement tools.
Never place a subwoofer directly against a rear wall in a rectangular room — bass buildup at the back wall creates a one-note, boomy sound that no amount of EQ correction fully resolves.
Crossover and Phase Missteps
Phase inversion is a silent performance killer. When the subwoofer's driver moves out of sync with the soundbar's woofers, bass cancellation occurs at the crossover frequency. Most powered subwoofers include a 0°/180° phase switch on the rear panel. Play the system at the crossover frequency, toggle the switch, and select whichever position sounds louder. That's the correct phase alignment — no guesswork required.
Running subwoofer gain too high is the most common calibration mistake home theater users make. Excess bass output masks midrange detail and fatigues listeners within an hour. Most enthusiasts run subwoofer levels at +2 to +4dB above reference for movies and return to ±0dB for music. Modern soundbar DSP modes — "Movie," "Music," "Night" — adjust this balance dynamically, but the base calibration level still matters.
Keeping the System at Peak Performance
Periodic Recalibration
Room conditions change. Furniture additions, seasonal humidity shifts, and new floor coverings all affect room acoustics measurably. Recalibrating subwoofer levels twice a year maintains consistent performance without requiring professional intervention. Room correction tools like Dirac Live, available on select soundbar platforms, automate this entirely — a microphone sweep recalculates EQ curves and delay settings for the current room state.
Users building out a complete home AV setup — adding an over-the-air antenna for broadcast content, for example — should revisit bass calibration after any significant room change. The best TV antenna for basement apartments guide covers placement principles that also apply to subwoofer positioning in below-grade spaces, where room modes behave differently than in above-ground rooms.
Firmware and App Updates
Firmware updates frequently include wireless stability improvements, EQ preset refinements, and Dolby/DTS decoding patches. Samsung, Sonos, and LG push these updates through companion apps on a regular cycle. Checking for updates every 90 days covers the standard release cadence for major brands. Sonos in particular pushes updates that directly affect subwoofer level calibration algorithms — skipping them means missing real performance gains, not just bug fixes.
The companion app also unlocks features unavailable through hardware controls — parametric EQ, room correction microphone calibration, and individual driver level adjustments. These tools move bass performance well beyond what physical dial adjustments can achieve on any configuration.
Frequently Asked Questions
Does a subwoofer have to match the soundbar brand?
No — but matched systems pair more reliably and offer tighter DSP integration. Third-party subwoofers connected via LFE cable or a wireless transmitter module work with any soundbar that has a dedicated subwoofer output, regardless of brand compatibility.
What is the best crossover frequency for a soundbar subwoofer?
80Hz is the THX-recommended starting point and works well for most 2.1 and 3.1 soundbar configurations. Smaller soundbars with limited bass extension benefit from 100–120Hz. Larger full-range soundbars can drop to 60Hz before the subwoofer takes over low-frequency duties.
Why does the subwoofer cut out intermittently during playback?
Wireless interference from nearby 2.4GHz devices — routers, microwaves, and Bluetooth speakers — causes most dropout issues. Moving the subwoofer closer to the soundbar or switching the soundbar's wireless channel in the companion app resolves the majority of intermittent cutout cases.
Should the subwoofer be placed in front of or behind the listening position?
Front-wall placement on the same side as the TV and soundbar produces the most coherent bass timing. Rear placement creates a perceptible delay between direct sound from the soundbar and bass from the subwoofer, which the brain registers as disconnected or slow low-end.
How loud should the subwoofer be relative to the soundbar?
Subwoofer output should measure within ±2–3dB of the soundbar's reference level at the primary listening position. Calibrating with an SPL meter app at the listening seat gives a reliable, objective measurement rather than relying on ear perception alone, which tends to favor excess bass.
Can a soundbar subwoofer work effectively in a small room?
Yes, but placement and gain settings require more careful attention in compact spaces. Small rooms amplify bass dramatically due to room modes. Keeping the subwoofer away from corners and setting the crossover to 80Hz or lower prevents the exaggerated bass buildup that makes small rooms sound muddy and undefined.
Next Steps
- Run the subwoofer crawl technique to identify the optimal placement position along the front and side walls before permanently positioning the unit.
- Set the crossover to 80Hz and the gain dial to 50%, then measure SPL at the listening position with a free meter app to calibrate levels objectively.
- Toggle the 0°/180° phase switch while playing a steady tone at the crossover frequency — choose the position that produces higher SPL output to eliminate phase cancellation.
- Download the soundbar's companion app, check for pending firmware updates, and explore any parametric EQ or room correction features the model supports.
- Schedule a recalibration check every six months, particularly after any significant changes to room furniture, flooring, or layout.
