How to Use a Walking Foot Attachment for Even Stitches

A friend once spent an entire afternoon trying to quilt a thick cotton layer cake, watching the regular presser foot drag the top fabric forward while the bottom layer lagged behind. Every seam came out wavy and puckered. That's the exact problem that knowing how to use a walking foot sewing machine attachment solves — reliably, every single time. A walking foot grips both layers of fabric from above and below simultaneously, so the needle hits each stitch exactly where it should. For anyone exploring the world of sewing and crafts, this attachment earns its place in the toolkit fast.

The walking foot goes by a few names — dual feed foot, even feed foot — but the job is always the same. It adds a second set of feed teeth on top of the fabric to work alongside the feed dogs (the metal teeth beneath the needle plate that normally do all the pulling). That synchronized top-and-bottom grip eliminates the uneven stitch problems that frustrate sewists working with thick or slippery materials. It's a relatively simple attachment, but the difference it makes is immediately obvious the first time it gets used.

This guide covers everything needed to get started: what the walking foot actually does, how to attach and use it correctly, which projects benefit most, and the common pitfalls worth knowing before sitting down to sew.

What a Walking Foot Is and How It Works

Before attaching any new presser foot, it helps to understand what's actually happening at the needle. A standard presser foot holds fabric down against the feed dogs, which grip the fabric from below and push it backward with each stitch cycle. That system works fine for a single layer of quilting cotton. Add a second layer, or switch to fleece or denim, and the bottom layer moves faster than the top. The result? Puckered seams, wavy edges, and skipped stitches that have no obvious cause.

A walking foot solves this by adding a mechanical arm and a second set of feed teeth that grip the top of the fabric. As the machine sews, those teeth move in sync with the lower feed dogs, pulling both layers forward at the same rate. According to Wikipedia's overview of presser feet, the walking foot is one of the more specialized attachments available for home sewing machines, originally developed for industrial use with heavy materials like leather and upholstery.

Anatomy of a Walking Foot

Most walking feet share the same basic design regardless of brand:

• Upper feed dogs: The small teeth on the underside of the foot body that contact the top of the fabric
• Ankle or shank: The bracket that connects the foot to the presser foot bar on the machine
• Fork arm: A small U-shaped arm that hooks onto the needle clamp screw, allowing the foot's feed teeth to move in sync with the needle cycle
• Guide groove: A center channel that keeps the needle properly centered during straight stitching

The fork arm is the key component. It's what makes the walking foot actually "walk" — it hooks onto the needle bar and uses the machine's up-and-down motion to drive the top feed teeth in time with the lower feed dogs. Without that connection seated correctly, the foot is just dead weight on the presser bar.

Pro tip: Always check that the fork arm is seated fully onto the needle clamp screw before sewing. A loose connection is the most common reason a walking foot fails to feed fabric evenly.

How to Use a Walking Foot Sewing Machine Attachment: Step by Step

Knowing how to use a walking foot sewing machine is mostly about the setup. Once the foot is attached correctly and the machine is configured, using it is as natural as sewing with any other foot. Here's the full process from start to finish.

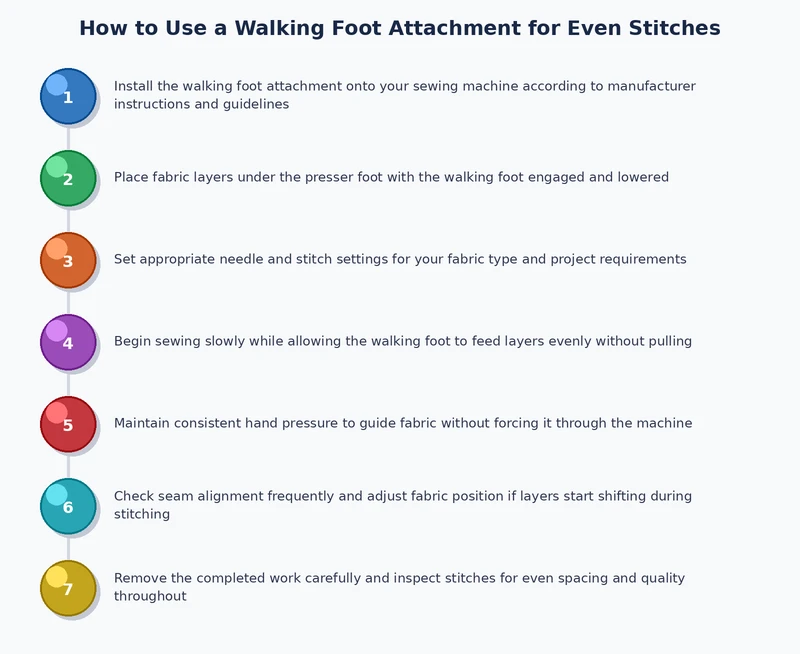

Attaching the Foot

1. Raise the needle to its highest position using the handwheel and power off the machine before touching any attachments.
2. Remove the current presser foot by releasing the ankle lever or unscrewing the foot holder, depending on the machine model.
3. Slide the walking foot's shank onto the presser foot bar from the rear and tighten the ankle screw firmly.
4. Hook the fork arm around the needle clamp screw — the small screw that holds the needle in place. The fork arm should sit snugly over it without force.
5. Lower the presser foot lever and visually confirm the foot sits flat and level against the feed plate before sewing.

Most walking feet are sold as universal-fit for low-shank machines, which covers the majority of home sewing machines on the market. High-shank and slant-shank machines may need a specific adapter or a manufacturer-matched foot. For a detailed breakdown of how different feet fit different machines, this guide to sewing machine feet types and uses covers shank differences clearly.

Setting Up the Machine

• Set stitch length to 2.5–3.5 mm for most projects. Heavier fabrics handle longer stitches; delicate fabrics do better shorter.
• Use the correct needle for the fabric — a quilting needle (75/11 or 90/14) for quilt sandwiches, a stretch needle for knit fabrics.
• Confirm the bobbin is wound evenly and seated correctly. An unevenly wound bobbin can create tension inconsistencies that look exactly like feed problems. Knowing how to wind a bobbin correctly prevents a lot of that confusion before it starts.
• Leave thread tension at the machine's default setting. Resist the urge to increase tension dramatically to compensate for thick layers — the walking foot should handle that.

Sewing With the Walking Foot

Once everything is set up, the actual sewing technique stays relaxed. Keep fabric layers flat and smooth as they approach the foot — don't stretch or tug them forward. Let the machine do the feeding naturally. For quilting, place pins perpendicular to the seam line so they slide out easily before reaching the needle. For long seams on heavy material like denim, maintain a steady medium speed rather than flooring the pedal.

Fabrics and Projects That Benefit Most

Not every sewing project needs a walking foot. But for certain fabrics and tasks, it moves from helpful to practically essential. Here's where it makes the clearest difference.

Thick and Layered Fabrics

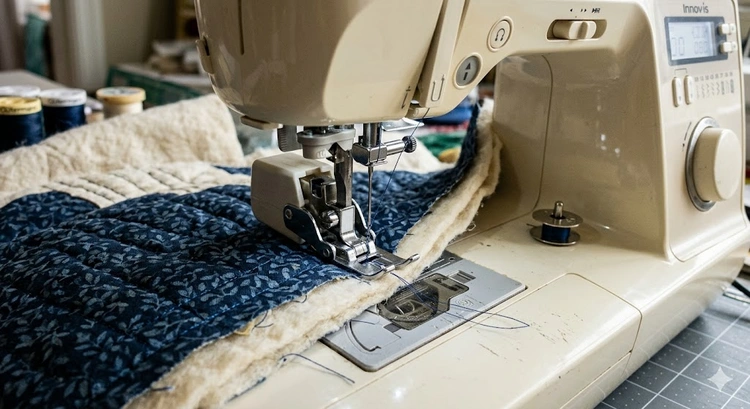

Quilting is the classic use case. When sewing through a quilt sandwich — top fabric, batting, and backing — three layers need to move together without any of them creeping or shifting. The walking foot keeps them synchronized through even the longest diagonal quilting lines. The same logic applies to other layered projects:

• Denim and canvas bag making
• Faux leather and vinyl craft projects
• Upholstery work with interfaced panels
• Multiple-layer fleece or wool blankets

Slippery and Stretchy Fabrics

Silky fabrics like charmeuse or satin tend to shift under a standard foot, leading to wavy seams that can't be ironed out. The even pressure of a walking foot helps control that movement. For stretchy knit fabrics, the walking foot pairs well with a stretch stitch setting — it won't replace a serger for hems, but it handles long seams in jersey or ponte cleanly. For more on that topic, this guide on sewing stretch fabric without puckering covers complementary techniques in depth.

Pro Tips for Even Stitches Every Time

The walking foot handles the mechanics of even feeding, but a few extra habits make results consistently cleaner across different projects and fabric types.

• Press seams flat before crossing them. Sewing over a bulky seam intersection at full speed can still cause a skip or small pucker. Pressing it flat first reduces the height the foot has to climb.
• Use a seam guide or tape. The walking foot has a guide groove but lacks the close-edge visibility of a standard foot. A strip of masking tape applied at the desired seam allowance provides a clear reference line without marking the fabric.
• Slow down at seam intersections. Even with a walking foot, where multiple seam allowances stack up — like quilt block corners — dropping speed slightly gives the machine time to process the extra thickness without skipping.
• Fine-tune upper thread tension. Walking foot sewing can sometimes produce slightly looser-looking stitches. A small tension bump (from 4 to 4.5 on most machines) usually tightens them without causing puckering.
• Use a seam roller, not an iron, for faux leather and vinyl. Heat from pressing can damage those surfaces before the needle even touches them.

Tip: For quilting, placing pins perpendicular to the seam line — at right angles rather than parallel — lets them slide out easily without stopping mid-seam, and the walking foot passes over them without catching.

Some walking feet include a seam guide bar accessory — a thin metal rod that attaches to the foot body and holds a fixed distance from an existing stitching line. This is especially useful for channel quilting, where parallel rows spaced evenly across a quilt surface would otherwise require constant measuring. It's a small addition that removes a lot of tedious work.

Common Mistakes to Avoid

Even experienced sewists run into frustrating results with a walking foot when they skip a few fundamentals. These are the most common issues and what actually causes them.

Forgetting the Fork Arm Connection

This is the single most common mistake — and the easiest to miss. If the fork arm isn't properly hooked over the needle clamp screw, the top feed teeth don't move at all. The foot looks correctly installed from every angle, but it performs exactly like a regular presser foot with no upper feeding action. The fix takes ten seconds: power off, raise the needle, and reseat the fork arm completely before sewing.

Using the Wrong Stitch Type

A standard walking foot is designed for straight stitches only. Selecting a zigzag stitch with a narrow-groove walking foot will cause the needle to strike the foot's edge on its sideways swing, breaking the needle immediately. Some walking feet come with a wider groove specifically rated for zigzag stitching — the product packaging will state this clearly. Understanding which foot matches which stitch is part of the broader question of how different machine setups serve different sewing goals.

Pushing or Pulling the Fabric

The entire purpose of the walking foot is synchronized feeding. Tugging fabric forward to keep it from drifting, or holding it back to maintain a straight line, disrupts the synchronized action and introduces exactly the kind of unevenness the foot is designed to prevent. The right technique is to guide the fabric lightly — just enough to keep it square — and trust the foot to move it through at the correct rate.

A dull or bent needle is also worth mentioning here. Heavy fabrics dull needles faster than lighter ones, and a dull needle causes skipped stitches regardless of which presser foot is attached. Starting any major project — especially a full quilt or thick denim work — with a fresh needle is a habit that pays back quickly.

When to Use a Walking Foot — and When to Skip It

The walking foot is excellent for specific situations, but it's not a universal replacement for every presser foot in the kit. Knowing when it's the right tool — and when another foot will do the job better — saves real time and frustration.

Reach for It When...

• Quilting through batting and multiple fabric layers where any shift creates mismatched seams
• Sewing long seams in fleece, faux leather, stretch knits, or other fabrics prone to creeping
• Matching plaid or stripe patterns across a seam line — even feeding keeps the repeats aligned
• Top-stitching through thick or reinforced sections where one layer would otherwise move faster
• Sewing over existing seams where multiple layers stack up at intersections

Leave It in the Case When...

• Sewing curves, arcs, or circles — the foot's directional feed works against curved guidance
• Doing free-motion quilting or embroidery, which requires disengaged feed dogs
• Sewing a single layer of lightweight woven fabric — a standard foot gives better visibility and control
• Gathering or deliberately easing fabric — the walking foot actively prevents the differential feeding that creates gathers

Note: Free-motion quilting requires a completely different setup — feed dogs dropped or covered, and a darning or free-motion foot attached. A walking foot and free-motion quilting are mutually exclusive techniques.

Frequently Asked Questions

Key Takeaways

• A walking foot adds synchronized upper feed teeth that prevent layer shift, puckering, and skipped stitches on thick, slippery, or multi-layer fabrics.
• Correct attachment means seating the fork arm fully onto the needle clamp screw — skipping this step makes the foot perform no better than a standard presser foot.
• It excels at quilting, denim, fleece, faux leather, and knit fabrics, but should not be used for curved sewing, free-motion work, or deliberate gathering.
• Small setup details — needle freshness, appropriate stitch length, and an evenly wound bobbin — have as much impact on stitch quality as the foot itself.
