How to Use a GMRS Repeater for Extended Range

To use a GMRS repeater, a radio must be programmed with the repeater's input frequency, output frequency, and CTCSS/DCS tone — then the repeater automatically rebroadcasts the signal from its elevated position, often multiplying effective range by five to ten times. That is the short answer. The longer answer involves understanding how to use a GMRS repeater properly, from finding available repeaters to configuring offset and tone settings, and our team has spent considerable time testing various setups across open terrain, mountain passes, and dense suburban areas. For anyone exploring the radio gear category for the first time, GMRS repeaters represent one of the most practical upgrades available in land-mobile radio communication.

Our previous coverage of how GMRS repeaters work and how to find one near you laid the groundwork. This guide focuses on the hands-on process — the equipment needed, the programming steps, real-world performance expectations, and what to do when things go wrong.

What GMRS Repeaters Do and Why They Matter

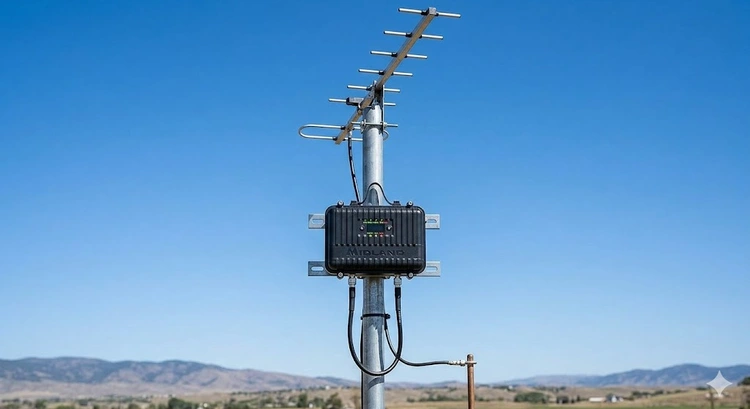

A GMRS repeater is a fixed station — typically mounted on a tower, hilltop, or tall building — that receives signals on one frequency and simultaneously retransmits them on another. This process, called duplex operation, overcomes the fundamental range limitation of handheld and mobile radios: line of sight. Most handheld GMRS radios manage 1–3 miles in realistic conditions. Through a well-placed repeater, that same radio can reach 20–50 miles depending on terrain and repeater elevation.

Simplex vs. Duplex Operation

Simplex means both radios transmit and receive on the same frequency. It works fine for short distances. Duplex splits the conversation across two frequencies — the repeater listens on one (the input) and broadcasts on another (the output). The standard GMRS repeater offset is +5 MHz, meaning the input frequency sits 5 MHz above the output. This separation prevents the repeater's powerful transmitter from interfering with incoming signals.

Pro Tip: Most consumer-grade GMRS radios (like the Midland GXT series) have repeater channels pre-programmed. Channels 15R–22R are the dedicated repeater pairs — no manual offset entry needed on these models.

FCC Licensing Requirements

The FCC requires a GMRS license for repeater use. The license costs $35, covers an entire household, and lasts ten years. No exam is required. Our detailed walkthrough on how to get a GMRS license covers the application process step by step. Operating on repeater frequencies without a license carries fines up to $100,000 per violation — a risk that simply is not worth taking given the low barrier to legal operation.

Essential Equipment for Repeater Access

Compatible GMRS Radios

Not every GMRS radio supports repeater operation. FRS-only radios and many budget blister-pack models lack the ability to set frequency offsets or CTCSS tones. Here is a breakdown of common radio categories and their repeater compatibility:

The sweet spot for most users is an enthusiast-grade handheld paired with a mobile unit in the vehicle. The handheld serves as a backup and walk-around radio; the mobile provides enough power to reliably hit distant repeaters.

Antennas and Accessories

A radio is only as capable as its antenna. The stock rubber-duck antenna on most handhelds is a compromise — compact but inefficient. Upgrading to a half-wave whip antenna (like the Nagoya NA-771G tuned for GMRS frequencies) can improve effective range by 30–50%. For mobile installations, a 5/8-wave mag-mount antenna on the vehicle roof delivers the best balance of gain and practicality.

• Handheld antenna upgrade: Nagoya NA-771G or Diamond SRH77CA — expect 2–4 dB gain improvement
• Mobile antenna: Browning BR-180 or Tram 1185 — magnetic mount, easy install, 5+ dBi gain
• Coax cable: Keep runs under 25 feet with RG-8X or better to minimize signal loss
• External speaker-mic: Keeps the radio stationary while allowing movement — critical in vehicle setups

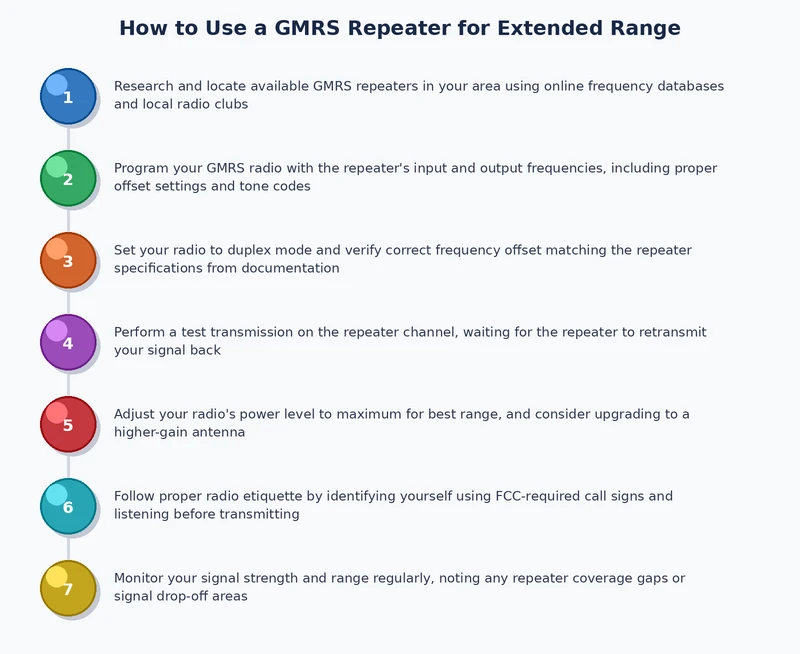

Programming a Radio for Repeater Use

This is where most newcomers get stuck. The concept is straightforward, but every radio model handles menus slightly differently. The core process, however, remains the same across all programmable GMRS radios.

Setting Frequency Offset

GMRS repeater channels occupy 462.550–462.725 MHz (output) with corresponding inputs at 467.550–467.725 MHz. The eight designated repeater pairs are:

• Channel 15R: 462.550 / 467.550 MHz
• Channel 16R: 462.575 / 467.575 MHz
• Channel 17R: 462.600 / 467.600 MHz
• Channel 18R: 462.625 / 467.625 MHz
• Channel 19R: 462.650 / 467.650 MHz
• Channel 20R: 462.700 / 467.700 MHz
• Channel 21R: 462.725 / 467.725 MHz
• Channel 22R: 462.750 / 467.750 MHz (proposed — not yet authorized everywhere)

On programmable radios like the Wouxun KG-805G, the process involves entering the output frequency (462.XXX), then setting the transmit offset to +5.000 MHz. The radio automatically calculates the input frequency. On consumer models with pre-set repeater channels, this step is already handled — just select channel 15R through 22R.

Warning: Entering the offset backward (negative instead of positive) means the radio transmits on the output frequency, which will not trigger the repeater and may interfere with other users listening on that frequency.

CTCSS and DCS Tone Configuration

Nearly every GMRS repeater requires a CTCSS (Continuous Tone-Coded Squelch System) tone to activate. Without the correct tone, the repeater ignores incoming transmissions entirely. CTCSS tones are sub-audible frequencies between 67.0 Hz and 254.1 Hz — the human ear cannot detect them, but the repeater's receiver filters for them.

Finding the correct tone requires checking a repeater directory. myGMRS.com maintains the most comprehensive database of GMRS repeaters in North America. Each listing includes the channel, CTCSS tone, location coordinates, and often the repeater owner's contact information. Some repeaters use DCS (Digital-Coded Squelch) instead — same concept, different encoding method. The radio's programming menu will have separate fields for CTCSS and DCS.

For radios that support computer programming, tools like CHIRP simplify the process considerably. Our team regularly uses CHIRP to batch-program multiple repeater channels at once — far faster than menu-diving on the radio itself.

Real-World Range Tests and Use Cases

Terrain and Performance Variables

Our testing across different environments revealed significant variation in repeater-assisted range. In flat agricultural land with a repeater at 200 feet elevation, a 5-watt handheld consistently reached 25–30 miles. In mountainous terrain with valleys and ridgelines, the same setup dropped to 8–15 miles depending on the specific path geometry. Urban environments fell somewhere in between — buildings attenuate signal, but elevated repeater sites partially compensate.

The single biggest factor is the repeater's antenna height above average terrain (HAAT). A repeater at 500 feet HAAT on a ridge will outperform a 1,000-foot tower in a valley surrounded by higher terrain. Elevation matters, but relative elevation matters more.

Common Deployment Scenarios

• RV caravans: Groups traveling in convoy benefit enormously from repeater access. Simplex range between vehicles is often limited to 2–5 miles on highways. Through a repeater, the lead and tail vehicles can stay in contact across an entire county.
• Off-road groups: Trail riding, overlanding, and hunting parties use GMRS repeaters to maintain communication across canyon walls and dense forest — terrain that kills simplex signals. Our comparison of CB radio vs GMRS for off-road use explores this in greater detail.
• Emergency preparedness: Many community emergency response teams (CERT) maintain GMRS repeaters as backup communication when cellular networks fail. After hurricanes and wildfires, these repeaters have proven their value repeatedly.
• Property and ranch management: Large rural properties spanning thousands of acres use GMRS repeaters to coordinate work crews, track equipment, and maintain safety contact across the property.

Pro Insight: Mounting a mobile GMRS radio with a rooftop antenna in a parked RV at a high campsite effectively creates a temporary base station — useful when no public repeater covers the area.

Troubleshooting Repeater Connection Issues

Common Problems and Fixes

When a repeater does not respond, the cause is almost always one of these four issues:

• Wrong CTCSS tone: The most frequent problem. Double-check the tone against the repeater directory listing. Some repeaters change tones periodically.
• Offset direction: Must be positive (+5 MHz) for GMRS. A negative offset means the radio is transmitting on the wrong frequency entirely.
• Out of range: Even with a repeater, there are limits. If the signal path between the radio and repeater is blocked by terrain, no amount of power helps. Try moving to higher ground.
• Repeater down: Repeaters are electronic equipment exposed to weather. Lightning, power outages, and component failures take them offline. Check the repeater directory or contact the owner for status updates.

Advanced Diagnostics

If basic checks pass and the repeater still does not respond, more advanced troubleshooting may be necessary. Monitoring the repeater's output frequency in receive-only mode (no tone squelch) can reveal whether the repeater is active — other users' transmissions will be audible. If the repeater is clearly working for others but not responding to a particular radio, the issue is almost certainly on the transmit side: power output, antenna connection, or tone encoding.

A simple field test involves transmitting on simplex to a nearby radio first. If simplex works at short range, the radio's transmitter is functional and the problem lies in the repeater configuration. If simplex also fails, the radio itself may have a hardware issue — a damaged antenna connector is the most common culprit, especially after drops or rough handling.

Frequently Asked Questions

Key Takeaways

• Using a GMRS repeater requires three settings programmed into the radio: the repeater's output frequency, a +5 MHz transmit offset, and the correct CTCSS or DCS tone.
• A valid FCC GMRS license ($35, no exam, ten-year term) is legally required before transmitting on any repeater channel.
• Repeater-assisted range typically reaches 15–30 miles with a handheld and 30–50 miles with a mobile radio, depending primarily on the repeater's antenna elevation above surrounding terrain.
• When a repeater fails to respond, the fix is almost always correcting the CTCSS tone or verifying the offset direction — both are quick checks that resolve the vast majority of connection issues.
