RV Skirting: How to Insulate the Bottom of Your RV for Winter

The first winter Jake spent in his travel trailer near Flagstaff, he burned through two propane tanks in a single week trying to keep his floors warm. Pipes nearly froze, the furnace ran nonstop, and he still woke up every morning with cold feet on the linoleum. That's when he discovered rv skirting winter insulation — the one upgrade that changed his entire cold-weather camping experience. If you're losing heat through the open gap beneath your rig, skirting is the fix. This guide covers everything you need to choose the right type, install it correctly, and stop burning money on propane every winter.

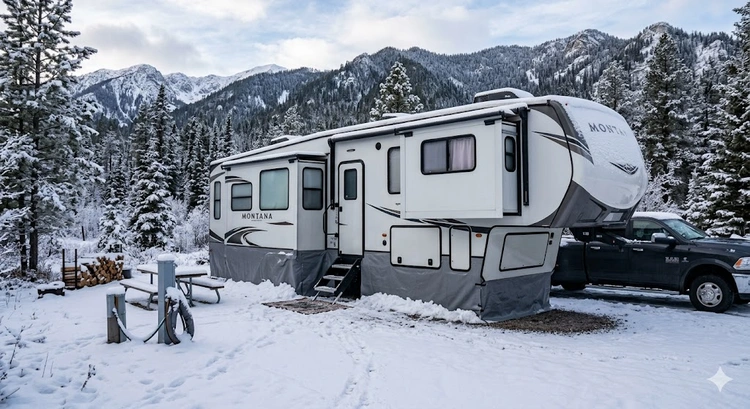

RV skirting works by sealing the open space between the bottom of your rig and the ground. Without it, frigid air circulates continuously under your RV, attacking your water lines, holding tanks, and underbelly insulation. With it, you trap a pocket of still, warmer air that acts as a thermal buffer. The result: less propane use, warmer floors, and protected plumbing. You can explore the full range of cold-weather options at the PalmGear RV Gear hub to find accessories compatible with your setup.

Whether you're a full-timer wintering in Montana or a weekend warrior camping in the Northeast, the principles are the same. The right skirting material combined with a solid installation delivers a measurable difference — we're talking 30–50% reductions in underbelly heat loss depending on your rig's design and ground clearance.

What RV Skirting Actually Does to Your Heat Loss

Most RVs have several inches — sometimes a foot or more — of open air space between the floor frame and the ground. That gap is a direct pathway for cold outdoor air to attack everything vulnerable underneath your rig.

Here's what happens without skirting when temperatures drop below freezing:

• Cold air circulates continuously beneath the entire length of the rig
• Water in your fresh, gray, and black tanks can freeze solid within hours
• Your furnace runs longer and burns more propane trying to compensate for floor-level heat loss
• Floor surfaces stay cold no matter how high you crank the thermostat
• Underbelly insulation loses effectiveness when it's wind-exposed or moisture-wicked from below
• Tank dump valves freeze and become inoperable

Skirting eliminates the air circulation problem entirely. It doesn't add intrinsic R-value to your walls or floor — it creates a dead air space underneath your rig that resists convective heat loss. According to the U.S. Department of Energy, eliminating air infiltration is one of the most cost-effective weatherization strategies available — and that principle applies directly to RV underbellies.

Paired with heat tape on exposed water lines and a quality RV water pressure regulator to protect your plumbing from pressure spikes when lines thaw, skirting forms the foundation of a complete cold-weather defense system.

When You Need RV Skirting — and When You Don't

Conditions That Demand Skirting

Skirting moves from "nice to have" to non-negotiable in these situations:

• Temperatures consistently below 20°F (-7°C) — at this threshold, exposed pipes and tank valves freeze fast without protection
• Extended stays of more than 3 days in freezing weather — a few overnight dips are manageable, but sustained cold demands a solution
• Full-timing in northern states or Canada — skirting is a core component of your winter setup, not an afterthought
• High wind conditions at any cold temperature — wind chill dramatically accelerates heat loss under the rig even at 30°F
• RVs without enclosed or heated underbellies — if your rig isn't rated for all-season camping, skirting bridges the gap
• Sites without shore power — when you can't run electric heat tape continuously, skirting buys time

When You Can Skip It

Skirting isn't always necessary. You can reasonably skip it if:

• Overnight temperatures stay consistently above 35°F
• You're on a 1–2 night stay with no forecast freeze
• Your RV has a factory-sealed, heated four-season underbelly rated for sub-zero temps
• You're parked at a campground with heated water pedestals and electric hookups to run heat tape

Even in milder cold, skirting improves comfort by warming your floors and cutting propane burn. It's almost never a bad move — but it's most critical when temperatures are serious and stays are long.

Types of RV Skirting That Work Best in Winter

Material choice affects insulation value, durability, installation ease, and total cost. Here are the main categories with honest assessments of each:

Foam Board (Rigid XPS Insulation)

This is the default DIY option for a reason. Pink or blue extruded polystyrene (XPS) foam board is inexpensive, available at any hardware store, and genuinely effective at creating an insulating barrier.

• R-value: R-3.8 to R-6.5 per inch of thickness — real, meaningful insulation
• Cost: $30–$60 per 4×8 sheet at standard thickness
• Pros: High insulation value, easy to cut with a utility knife, rigid enough to stand without support
• Cons: Bulky to store, panels can crack in high wind if not anchored, requires cutting around slide-outs and utility access points

Vinyl and Fabric Kits

Pre-manufactured vinyl skirting panels offer a cleaner appearance and pack down to a manageable bundle between seasons. Many are sized for common RV widths and include attachment hardware.

• R-value: Minimal on its own — the insulation benefit comes entirely from the dead air space it creates
• Cost: $200–$700 for a complete kit depending on rig length
• Pros: Reusable for many seasons, compact storage, cleaner aesthetic
• Cons: Less insulating than foam board without an inner foam layer, wind can breach the bottom edge without proper anchoring

Custom-Fit and Inflatable Options

Premium options at the top of the market include custom-measured fabric skirting from specialty manufacturers and inflatable tube systems. These are the easiest to set up and handle irregular ground contours better than rigid panels.

• AirSkirts: Inflatable tube sections that conform to uneven terrain — extremely popular with full-timers who move frequently
• Custom vinyl: Panels measured to your exact rig dimensions, including slide-outs — no on-site cutting required
• Cost: $600–$2,000+ depending on rig size and system type
• Best for: Full-timers, large fifth wheels, and anyone who values fast, repeatable setup

How to Install RV Skirting Step by Step

Tools and Materials

For a foam board DIY installation, gather these before you start:

• 2-inch XPS foam board panels (calculate your rig's perimeter + 20% for waste and irregular cuts)
• Utility knife and straight edge, or a circular saw for faster cuts
• Measuring tape and a marker
• Foam board adhesive tape or reflective foil tape for sealing seams
• Bungee cords, heavy-duty zip ties, or panel clips for securing to the rig frame
• Rocks, sandbags, or ground stakes to anchor the base edges
• A headlamp for inspecting gaps at ground level

Installation Steps

1. Level your RV first. Skirting performs best when your rig is stable and level. Uneven parking creates large irregular gaps at the base that are hard to seal.
2. Measure the perimeter height and length. Walk every side of your rig with a tape measure. Record the height from the ground to the bottom of the frame or existing skirt rail, and the total run length of each side.
3. Cut panels to height. Standard 4×8 sheets need to be cut down to your measured height. Add 1–2 inches if you plan to bury the bottom edge in snow — it creates a natural ground seal.
4. Start at a corner. Position your first panel at one corner, leaning it against the rig or clipping it to the frame rail. Work in one direction around the perimeter.
5. Butt panels tightly and tape seams. Foam tape or foil tape at every seam closes the gaps that cold air finds immediately.
6. Cut around slide-outs and obstacles. This is the most time-consuming part. Measure each irregular section and cut smaller pieces to fill the gaps around jacks, slide-out extensions, and utility compartments.
7. Anchor every panel at the base. This is the step most people skip — and then regret. Rocks, sandbags, or stakes hold the bottom edge down. Wind exploiting a loose panel edge defeats the entire purpose.
8. Inspect at ground level with a light. Shine a headlamp along the base seam. Any light coming through from the other side marks a gap that needs sealing.
9. Create a removable access panel. Don't seal your water inlet, power connections, or gray tank valves behind permanent foam. Cut a panel piece that lifts away easily so you can access utilities without tearing down your whole skirt.

While you're handling your winterization checklist, think through your electrical load management too. Running heat tape, a space heater, and your regular appliances simultaneously can exceed your service capacity — understanding your RV's 30-amp vs 50-amp power configuration helps you plan which circuits can safely handle the additional draw.

Best Practices for Maximum RV Skirting Winter Insulation

Skirting alone is the foundation — not the whole structure. These practices stack on top of it to get you through the coldest nights reliably:

• Combine skirting with self-regulating heat tape. Wrap all exposed pipe runs and tank valve assemblies. Skirting reduces ambient temperature under the rig; heat tape directly prevents line freeze.
• Add a small supplemental heat source under the rig. A 100-watt incandescent bulb, a small milk-house electric heater, or a catalytic propane heater positioned safely away from foam panels can maintain above-freezing temperatures inside the skirted cavity on even the coldest nights.
• Pay extra attention to slide-out gaps. The junction between your slide-out and main body is one of the most significant thermal weak points on any RV. Foam rope caulk or custom-cut panel pieces fill these gaps effectively.
• Don't neglect the roof and windows. Underbelly insulation only contributes so much if you're hemorrhaging heat through single-pane windows or roof vent covers. Insulated vent covers and reflective window inserts make a significant difference.
• Re-inspect after every wind event. One shifted panel that lets cold air in undermines the entire system. A 5-minute check after any significant wind saves you from waking up to frozen tanks.
• Assess foam board condition each fall. XPS foam compresses and cracks over multiple seasons. Replace any panel that shows visible damage — degraded foam loses R-value and creates hidden gaps.
• Use a thermometer under the rig. A cheap wireless remote thermometer with the sensor placed inside your skirted space tells you exactly what temperature you're maintaining. It removes the guesswork and helps you decide whether you need additional heat.

Real RV Owners on What Worked (and What Didn't)

Theory is useful. Real results from real rigs in real cold are more useful. Here's a cross-section of experiences from campers who've been through it:

• Full-timer in Wyoming (40-foot fifth wheel): Switched to AirSkirts inflatable skirting after years of foam board. Setup time dropped from 3 hours to under 25 minutes. Propane consumption fell by roughly 35–40% compared to the previous season without skirting. The biggest difference was floor temperature — finally comfortable in socks instead of layered wool.
• Weekend camper in Vermont (24-foot travel trailer): Built a DIY foam board skirt using 2-inch XPS panels from a local home improvement store. Total materials cost: $115. Survived five nights at temperatures ranging from 8°F to 18°F without a frozen pipe or valve failure.
• Snowbirder in New Mexico (28-foot Class A): Started with a cheap polyester fabric skirt that wasn't anchored at the bottom. Two panels blew loose on the first windy night, and the open gap let cold air run freely underneath. Rebuilt the system using foam board with sandbag anchors along the base — no problems in the six weeks that followed.
• Full-timer in Montana (32-foot fifth wheel): Combined 2-inch foam board skirting with two 100-watt bulbs inside the skirted cavity. Even during a week where overnight temperatures dropped to -18°F, pipes remained functional and all tank valves operated normally every morning.

The consistent pattern across these experiences: foam board or properly anchored inflatable skirting outperforms lightweight fabric options. And in genuine extreme cold — anything below -10°F — supplemental heat inside the skirted cavity is what separates functional mornings from frozen disasters.

RV Skirting Winter Insulation Costs: What to Budget Per Season

Here's a realistic comparison across the main skirting options, including what you actually spend when you account for total system cost:

Factor these additional costs into your total budget:

• Self-regulating heat tape: $25–$70 per line — essential for pipe protection regardless of your skirting choice
• Supplemental heater: $35–$110 for a small electric milk-house heater or catalytic propane unit to place under the rig in extreme cold
• Skirt rail hardware: $40–$150 if your RV doesn't have existing attachment points for vinyl systems
• Foam tape and panel connectors: $10–$30 for sealing seams and bridging gaps in foam board builds
• Wireless thermometer: $15–$40 — optional but useful for monitoring the temperature inside your skirted cavity

For most RVers facing their first cold-weather season, foam board DIY is the right starting point. If you like the results and plan to winter camp regularly, upgrade to a quality vinyl or inflatable system the following year — the time savings compound quickly over multiple installations and breakdowns.

Frequently Asked Questions

Key Takeaways

• RV skirting winter insulation works by eliminating cold air circulation under your rig, creating a dead air space that protects pipes, tanks, and your furnace efficiency.
• Foam board XPS is the most cost-effective DIY option, delivering genuine R-value insulation for under $160 on most rigs — start here if you're new to cold-weather camping.
• Always anchor your skirting panels firmly at the base — a single panel that lifts in wind defeats the insulation value of the entire perimeter.
• In temperatures below -10°F, skirting must be combined with heat tape on all exposed lines and a supplemental heat source inside the skirted cavity for reliable protection.
