How to Set Up a VPN on Windows

Last winter, I was parked at an RV resort in Arizona, trying to access my home office files over the campground's shared Wi-Fi. I had set up a VPN on my Windows laptop the week before — the whole process took under twenty minutes — and it worked without a hitch. If you have been putting off learning how to set up a VPN on Windows, this guide ends that delay. You will find more practical networking guides in the Tech Tips section to round out your Windows toolkit.

A Virtual Private Network routes your internet traffic through an encrypted tunnel, masking your IP address and protecting your data from anyone watching the network. Windows supports VPN connections natively through its built-in settings, and third-party apps make the process even faster. Either way, you end up with a secure, private connection that follows your laptop wherever you take it.

This guide covers exactly what you need, the fastest setup method, the real-world scenarios where a VPN proves its worth, a hands-on walkthrough of the native Windows client, smart usage habits, and how to keep everything running long-term. By the end, your machine is VPN-ready.

What You Need Before You Set Up a VPN on Windows

A VPN Service or Server Credentials

You need one of two things: a subscription to a commercial VPN service, or the credentials to a VPN server your employer controls. Commercial providers like Mullvad, NordVPN, or ProtonVPN give you an app, a list of server addresses, and login credentials. Corporate setups give you a server address, VPN type, and authentication details from your IT department. Both work cleanly with Windows — the path to configuration just differs slightly.

If you go the commercial route, download the provider's Windows app directly from their official website before doing anything else. It handles the heavy lifting. If you are configuring a manual connection for work, gather the server hostname, VPN protocol type, and your username and password before you open Settings.

Choosing the Right Protocol

The protocol determines how your encrypted tunnel is built. Your choice affects speed, security, and compatibility. Here is how the major options stack up:

IKEv2 is the strongest choice for the built-in Windows client. It reconnects automatically when you switch from Wi-Fi to a mobile hotspot, which makes it ideal for anyone who works on the move. WireGuard and OpenVPN outperform IKEv2 on raw speed and privacy but require a dedicated app to run on Windows.

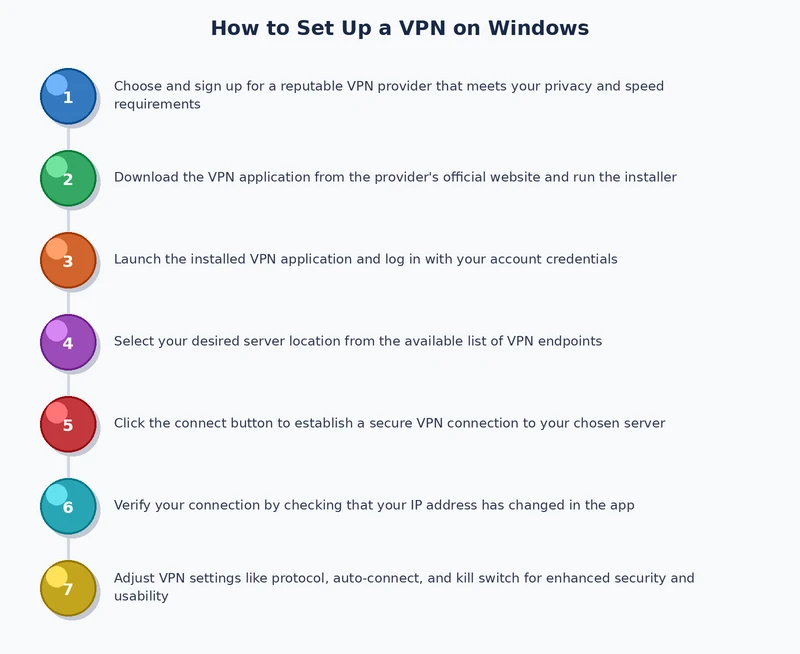

The Fastest Route: Setting Up a VPN App on Windows

Installing a Third-Party VPN Client

Download your provider's Windows client from their official site. Run the installer and sign in with your account. The app automatically discovers servers, selects the optimal protocol, and configures DNS leak protection so your real IP stays hidden. It also sets Windows Firewall rules in the background — a step you would otherwise need to handle manually with a native configuration.

Connecting in Under Two Minutes

Open the app, choose a server location, and click Connect. That is the entire process for most users. The app displays your new IP address and connection status in real time. Before you close the settings panel, locate the kill switch option and turn it on. A kill switch cuts your internet connection if the VPN drops unexpectedly, which prevents your real IP from leaking mid-session. It is a critical safeguard if you handle anything sensitive.

When a VPN on Windows Actually Pays Off

Remote Work and Corporate Access

If your employer requires VPN access to internal resources, Windows handles it well. Once you configure the connection, you reach shared drives, internal dashboards, and network printers exactly as if you were sitting in the office. If you also use Remote Desktop to control another machine, pairing it with a VPN is the secure way to go — our guide on how to enable Remote Desktop on Windows walks through the full configuration so both tools work together correctly.

Public Wi-Fi and Travel

Hotel networks, airport lounges, and campground hotspots are high-risk environments. Anyone on the same network can intercept unencrypted traffic using freely available tools. A VPN eliminates that vulnerability completely by encrypting everything leaving your device. If you have ever battled an unstable public connection, read our guide on how to fix WiFi keeps disconnecting on Windows first — a stable base connection is what your VPN needs to function reliably.

Pro tip: Always activate your VPN before logging into any account on public Wi-Fi — connecting after means your credentials may have already traveled over the unencrypted network.

Configuring Windows VPN Settings: A Real Walkthrough

Using the Built-In Windows VPN Client

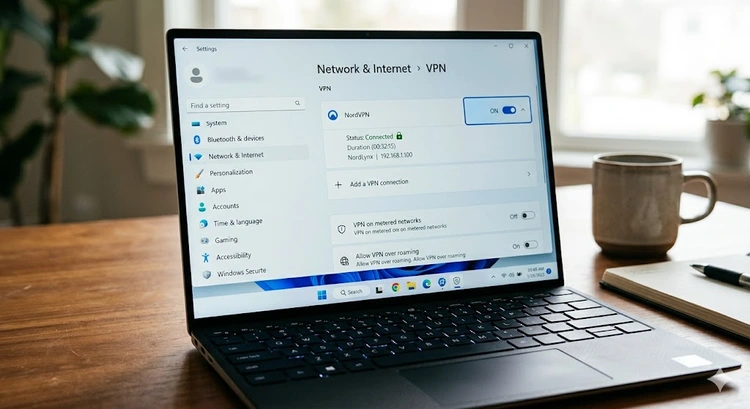

Open Settings and navigate to Network & Internet, then select VPN. Click Add a VPN connection. Set the VPN provider to Windows (built-in), give the connection a descriptive name, and enter the server address your provider or IT team supplied. Select the VPN type — IKEv2 is the recommended choice for new setups — then enter your username and password. Save the connection and click Connect. Windows negotiates the handshake and you are online through the encrypted tunnel within seconds.

This method works natively for IKEv2 and L2TP/IPSec connections. If your provider uses OpenVPN or WireGuard, you need their dedicated app — the Windows client does not support those protocols without additional software.

Manual IKEv2 Setup for Corporate Networks

Corporate IKEv2 configurations often require a certificate rather than a simple password. Your IT team provides a .pfx or .cer file. Import it through the Windows Certificate Manager by pressing Win+R, typing certmgr.msc, and following the import wizard. Then configure your VPN connection as described above, but under Authentication choose Certificate instead of a username and password. Windows manages the certificate validation automatically once it is in the store, and your connection behaves identically to a password-based setup from that point forward.

Warning: Never configure a new VPN using PPTP — its encryption was broken years ago and offers no meaningful protection against current attack methods.

When to Use Your VPN — and When to Switch It Off

Situations That Call for a VPN

Turn your VPN on any time you are on a network you do not control: coffee shops, hotels, airports, campgrounds, shared office Wi-Fi. Turn it on when you access banking or financial accounts away from home. Turn it on when your work policy requires it for internal access. These situations all share the same trait — traffic passing over infrastructure you cannot verify — and encryption is the correct response every time.

When the VPN Can Work Against You

A VPN adds latency because your traffic takes a longer path through an intermediary server. For competitive gaming or real-time video calls, that overhead is noticeable. Some streaming platforms block known VPN IP ranges, which can break access rather than improve it. Local network tasks — printing to a home printer, accessing a NAS, using Chromecast — route poorly through a VPN tunnel and often stop working entirely while it is active. Know which tasks need the VPN and which do not, and toggle accordingly.

Keeping Your VPN Running Smoothly on Windows

Updates and Regular Checks

VPN apps update frequently to close security vulnerabilities and improve server compatibility. Enable automatic updates in your client's settings, or check for updates manually once a month. Your provider also rotates server infrastructure over time — outdated app versions can lose access to newer servers, resulting in slower speeds or outright connection failures that have nothing to do with your own setup.

Diagnosing Common Connection Issues

When your VPN refuses to connect, work through this checklist: verify your base internet connection works without the VPN active, confirm your credentials have not expired (corporate VPN accounts often reset on a schedule), check whether your chosen protocol is blocked by a firewall or router, and try switching to a different server location. If the app shows a connected status but your traffic is not routing correctly, run a DNS leak test — it tells you immediately whether your real IP address is escaping the tunnel. For stubborn connection hangs, restarting the VPN service directly through Windows Services (services.msc) is more reliable than a full system reboot and gets you back online faster.

Frequently Asked Questions

Final Thoughts

Learning how to set up a VPN on Windows is one of those skills that pays off immediately and keeps paying off every time you connect from an unfamiliar network. Pick a reputable provider, enable the kill switch, and make IKEv2 or WireGuard your default protocol — then connect today and browse with confidence knowing your traffic is encrypted and your IP is your own business.
