Sewing Machine Stitch Types Explained: When to Use Each

Have you ever stared at your machine's stitch panel and felt genuinely unsure which option to pick for your current project? Mastering sewing machine stitch types removes that uncertainty entirely, and you'll be making sharper decisions on every fabric you touch within minutes of finishing this guide. Whether you're just beginning to explore the projects in our sewing and crafts section or you've been sewing confidently for years and still defaulting to straight stitch out of habit, the right stitch for every situation is completely within your reach.

Choosing the wrong stitch is one of the most common and most easily preventable mistakes in home sewing. You run a straight stitch down a jersey knit seam and the seam pops the first time the garment stretches under normal wear. You skip finishing raw edges on a woven dress and watch the fabric fray well past the seam allowance after three washes. Both problems disappear the moment you match the right stitch to the right fabric — and that is exactly what this guide teaches you to do, backed by a full reference table and real project scenarios you can apply immediately.

The Stitches Your Machine Already Has

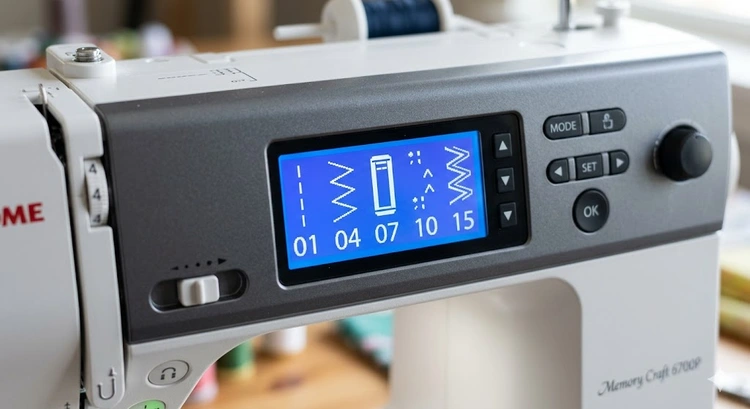

Most domestic sewing machines ship with between 10 and 100 built-in stitch programs, but the practical reality is that almost all home sewing projects rely on a focused set of six to eight. According to Wikipedia's overview of textile stitches, machine stitches fall into standardized international classes based on how the thread interlocks — and that interlock pattern is exactly what determines which fabrics and applications each stitch handles reliably.

Straight Stitch

The straight stitch is the foundation of all sewing machine stitch types and the one you'll reach for most often on woven fabrics like cotton, denim, linen, and canvas. It creates a clean, fixed seam with no stretch, which is exactly what structured woven fabrics need to hold their shape under normal use. Set your length to 2.0–2.5 mm for standard seams, drop to 1.5 mm for curves and fine topstitching, and increase to 4.0 mm for basting rows you intend to remove later.

Zigzag Stitch

The zigzag moves the needle from side to side as it advances forward, creating a stitch with built-in stretch that also functions as a raw edge finish in a single pass. You'll use a narrow zigzag at 1.5–2.0 mm width for light stretch fabrics and appliqué work, and a wider 3.0–5.0 mm setting for finishing seam allowances on wovens when you don't have a serger available.

• Width: Controls how far the needle swings — wider means more stretch capacity and better edge coverage on fraying fabrics.
• Length: Controls stitch density — a very short length (0.2–0.5 mm) produces a satin stitch effect suitable for appliqué borders and embroidered elements.

Pro tip: Never use a straight stitch on knit fabrics for structural seams — the thread has no elongation and the seam breaks the first time the fabric is pulled beyond its resting state.

Overcasting and Overlock Stitches

Overcasting stitches combine a forward seam with edge finishing in a single pass, closely mimicking what a serger produces using your standard needle and foot. They're the best option for clean, professional-looking seam allowances when a dedicated serger isn't part of your setup. If you're evaluating whether a second machine makes sense for your workflow, our guide on what a serger is and how it differs from a regular sewing machine covers the key distinctions thoroughly. These stitches run slightly slower and use more thread than a plain zigzag, but the finished seam allowance looks considerably more polished and holds up through repeated washing.

Matching Sewing Machine Stitch Types to Fabric

Fabric type drives every stitch decision you make, and this principle separates consistently clean, durable work from seams that fail within the first few uses. Your fabric's fiber content, weave structure, and stretch percentage all determine which stitch creates a seam that holds without distorting the material or breaking under stress.

Woven Fabrics

Woven fabrics — cotton, linen, denim, canvas, and quilting fabric — have minimal stretch along the straight grain, so straight stitches and clean seam finishes produce the best results. Use a straight stitch at 2.2 mm for main seams, an overcast or three-step zigzag stitch to close the raw edge, and a 3.5 mm straight stitch for gathering or easing along curved seams. Feed the fabric flat and let your machine's feed dogs control the pace without you stretching the material forward.

Stretch and Knit Fabrics

Knit and stretch fabrics need a stitch that elongates with the material, because a fixed seam breaks the moment the fabric is stretched beyond the thread's limit under normal wear. Your options range from the zigzag (the minimum viable choice) to the lightning bolt stitch, jersey stitch, and purpose-built stretch stitch — each offering progressively more controlled elongation and recovery. For a detailed strategy on managing these fabrics without puckering or skipped stitches, our guide on how to sew stretch fabric without puckering covers every variable.

• Lightweight jersey: Narrow zigzag (1.5 mm width, 2.5 mm length) or machine-built stretch stitch
• Heavy knit and activewear: Triple stretch stitch or wide zigzag at 3.0 mm width
• Ribbing and waistbands: Lightning bolt stitch for seams, twin needle for a professional hem finish

Quick Reference Table

Common Myths About Machine Stitches

A surprising number of sewing misconceptions circulate in online communities and older printed guides, and following bad advice here costs you real time and real material. Two myths in particular cause more failed seams than all others combined, and both are worth addressing directly so you can stop second-guessing your settings on every project.

The Zigzag-for-Everything Myth

Many beginners assume that a zigzag is always the right answer for stretch fabrics, but a wide zigzag on lightweight knits distorts the material because the needle punches an aggressive row of holes across the fabric width with each stroke. The better choice for fine jersey is a narrow zigzag at 1.5 mm width or a purpose-built stretch stitch, which achieves the necessary elongation without producing visible, wavy seam lines that drag the fabric out of shape. The wide zigzag belongs on heavy knits, edge finishing, and appliqué work — not on everything that stretches.

Warning: A wide zigzag on thin jersey causes the seam to tunnel and wave — always test your stitch width on a scrap before committing to your final fabric piece.

The Shorter-Is-Stronger Myth

Shorter stitch length does produce stronger seams on precision tailoring and tight curves, but on heavy fabrics like denim and canvas, an excessively short stitch actually weakens the material by perforating it too densely along the seam line. The correct approach is to match stitch length to fabric weight: 1.8–2.0 mm for lightweight materials, 2.2–2.5 mm for mid-weight fabrics, and 2.5–3.0 mm for anything heavy. The goal is a seam that grips the fabric securely, not one that creates a controlled perforation waiting to tear under load.

Pro Techniques That Make Every Stitch Count

Selecting the right stitch is half of the equation, and dialing in tension and pairing your stitch with the correct presser foot is the other half. Even the best stitch selection produces puckered, uneven seams when the tension is off or the foot is working against the way the fabric feeds through your machine.

Tension and Stitch Length Settings

• Balanced tension: Both bobbin and top thread should be visible only on their respective sides of the fabric — loops on either side mean you correct tension before continuing further.
• Basting rows: Set length to 4.0–5.0 mm and reduce top tension slightly so the thread pulls out cleanly without breaking the fabric fibers along the seam line.
• Topstitching: Increase length to 3.0–3.5 mm and use dedicated topstitching thread or double regular thread through the needle for a bold, defined decorative line.
• Buttonholes: Test on the exact fabric you're sewing before cutting the final buttonhole — fabric thickness changes how the stitch width behaves, and the hole must match button diameter precisely.

Pairing Stitches with the Right Foot

The presser foot you attach changes how fabric feeds and how the stitch forms, and mismatching foot to stitch is a reliable path to uneven results regardless of how carefully you've set your tension. Our complete guide to sewing machine feet types and when to use each one covers the full library of attachments, but these pairings have the most direct impact on stitch accuracy:

• Straight stitch: Single-hole needle plate and matching foot for the cleanest formation on light and mid-weight fabrics
• Stretch stitch on heavy knits: Walking foot to prevent the upper layer from feeding ahead of the lower layer and distorting the seam
• Overcast stitch: Overcast foot with a side guide wire that keeps the fabric edge from rolling under as the stitch forms
• Blind hem: Blind hem foot with an adjustable guide that maintains perfectly consistent catch depth along the entire hem length

Pro tip: When starting a stretch seam with a walking foot, hold both thread tails behind the foot for the first several stitches to prevent the fabric from bunching at the beginning of the seam.

Stitch Selection in Real Projects

Stitch theory becomes intuitive the moment you apply it to a specific project with real constraints, because the requirements of the build force you to think clearly about what each seam needs to accomplish structurally. These three project types represent the scenarios where stitch selection has the most measurable impact on how long the finished item holds up under real use.

Making a Tote Bag

A tote bag built from canvas or heavy cotton duck needs a straight stitch at 2.5 mm for the main side seams, with a second reinforcing row stitched 3 mm away in high-stress areas like the base corners and handle attachment points. For a complete build from cutting to finishing, our tutorial on how to make a tote bag with a sewing machine walks through every step in sequence. Use a triple straight stitch at the handle bar tack to multiply the attachment strength at that critical stress point without adding visible bulk to the design.

Zippers and Hems

Zippers always take a standard straight stitch sewn close and parallel to the tape, and your hem choice depends on the fabric weight and how visible you want the finished hem to be from the right side of the garment. A blind hem stitch on tailored trousers or a skirt creates a nearly invisible catch when you dial the catch width down to 1 mm with matching thread in the needle and bobbin. For canvas bags, aprons, and utility items, a double-turned straight stitch at 3.0 mm is the most durable finish available on any domestic machine.

• Invisible hem on wovens: Blind hem stitch at 1 mm width, matching thread, guide set for shallow catch depth
• Knit hem: Twin needle straight stitch creates two parallel rows on the right side with zigzag interlocking on the back, preventing hem breakage under stretch

Stretch Garments

Activewear, swimwear, and spandex-blend garments demand stretch stitches throughout the entire construction — including at the hem — and this is the area where home sewists most frequently use the wrong stitch and discover the mistake only after wearing the garment once. Use a stretch stitch or narrow zigzag for side seams, a triple stretch stitch at the crotch and underarm for maximum reinforcement at the highest-stress seams, and a twin needle for hems that flex without breaking under repeated movement. There is no structural location in a stretch garment where a plain straight stitch belongs, and the finished results will reflect that discipline immediately.

Frequently Asked Questions

Next Steps

1. Pull out your machine's manual or stitch reference chart and identify every stitch type covered in this guide — mark the ones you haven't tried yet as your immediate practice targets before your next project begins.
2. Sew a stitch sampler on scraps of both woven and knit fabric: run the straight stitch, zigzag, overcast stitch, and stretch stitch back to back so you can see exactly how each one looks and performs before applying them to a finished piece.
3. On your next project, identify your fabric type before cutting a single piece, then use the reference table above to confirm your stitch selection for every seam type that project requires.
4. Match each stitch to the correct presser foot using our guide to sewing machine feet types and uses — the right foot pairing prevents most stitch quality issues before they start and saves you from ripping out seams.
5. If you're working with knits and stretch fabrics on a regular basis, evaluate whether a serger belongs in your sewing setup by reading our breakdown of what a serger is and how it compares to a regular sewing machine.
