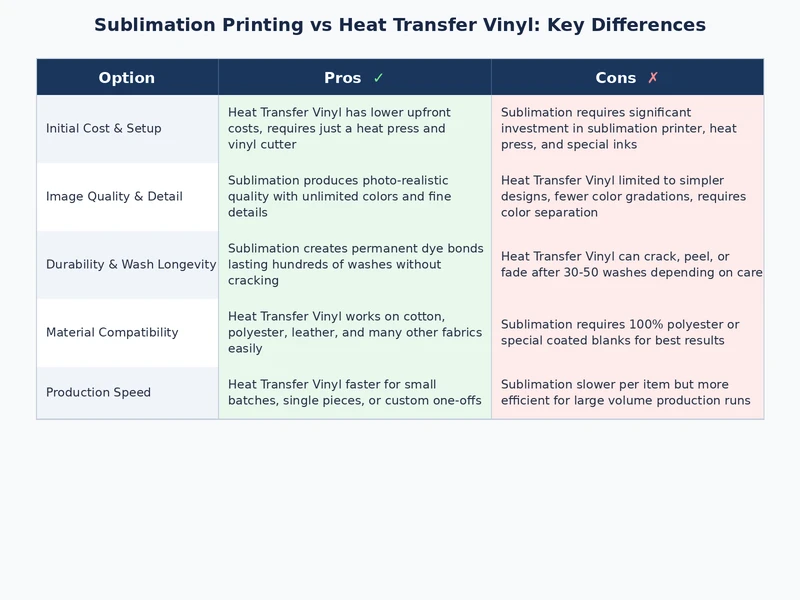

Sublimation Printing vs Heat Transfer Vinyl: Key Differences

The global custom apparel decoration market surpassed $6.5 billion in recent valuation — and the core purchase decision for anyone entering that space is sublimation vs heat transfer vinyl. Our team has tested both methods across dozens of substrate types, and the performance gap between them is wider than most people expect. Anyone building a heat press setup should review our full heat press and vinyl resource hub before locking in a workflow.

Sublimation bonds dye directly into polymer fibers at a molecular level. HTV presses a vinyl film layer onto the fabric surface using heat and adhesive. These are chemically and mechanically distinct processes. Conflating them leads to wasted blanks, failed prints, and mismatched equipment purchases. Our team recommends choosing a primary method based on substrate mix before investing in either system.

Both methods require a heat press. Both produce durable, full-color decoration. But fabric compatibility, per-unit ink cost, washability over time, and production scalability diverge sharply — and committing to the wrong one means scrapped inventory. This guide covers exactly where each method wins, where each fails, and how to troubleshoot both when output goes wrong.

The Technology Behind Sublimation and HTV

Understanding sublimation vs heat transfer vinyl starts with chemistry. The two processes share a heat press and almost nothing else.

Sublimation Mechanics

Sublimation printing uses dye-sublimation technology — solid dye converts to gas under heat and pressure, then re-solidifies inside polymer fibers at the molecular level. The dye becomes part of the fabric itself, not a film sitting on top.

• Press temperature: 380–400°F (193–204°C)
• Press time: 45–60 seconds typical for soft goods
• Substrate requirement: minimum 65% polyester, or polyester-coated hard goods
• Color capability: unlimited — full photographic-quality CMYK output
• Hand feel: zero — fabric surface texture is completely unchanged
• Washability: excellent — embedded dye cannot peel, crack, or lift

Our team considers sublimation the definitive choice for photorealistic designs, gradients, and all-over prints. No vinyl process matches its color depth or long-term durability. The limitation is absolute: polyester substrates only.

HTV Mechanics

Heat transfer vinyl is a polyurethane (PU) or PVC film cut with a vinyl plotter, then heat-pressed onto the fabric surface. The adhesive backing activates under heat, fusing the vinyl layer to the garment.

• Press temperature: 275–320°F (135–160°C) — significantly lower than sublimation
• Press time: 10–15 seconds typical
• Substrate compatibility: cotton, polyester, blends, nylon, denim, canvas
• Color limit: one solid color per layer; multi-color designs require layering
• Hand feel: distinct vinyl texture, visible and tactile on the garment surface
• Washability: good — edges can lift over time if initial adhesion was imperfect

HTV's core advantage is substrate flexibility. Cotton is a dead substrate for sublimation. For 100% cotton blanks, HTV is the only viable heat press option. Our team uses PU HTV for soft-hand applications and PVC HTV where glitter, metallic, or specialty finishes are required.

Tip: For sublimation, any fabric blend below 65% polyester will produce faded, washed-out output — our team uses 100% polyester blanks exclusively for production runs to eliminate this variable entirely.

Getting Sellable Results Fast

Most people want production-ready output within days, not weeks. Here is the direct path for each method.

Sublimation Quick Start

Sublimation has a steeper initial calibration curve. Once dialed in, output is consistent across hundreds of identical prints with minimal variation.

1. Print transfer using a sublimation printer — Epson EcoTank converted or a dedicated Sawgrass SG500/SG1000
2. Mirror all designs before printing — non-negotiable for text and asymmetric artwork
3. Use substrate-specific ICC profiles from the ink vendor for accurate color rendition
4. Tape transfer to polyester blank with heat-resistant tape on all four edges
5. Press at 395°F, firm pressure, 55 seconds
6. Peel while still hot for most applications — verify the ink manufacturer's specification first

Our team runs the Sawgrass SG500 for small-format and sample work. Full setup takes under two hours from unboxing to first saleable print. Investing in substrate-matched ICC profiles on day one eliminates the most common color accuracy complaints before they start.

HTV Quick Start

HTV has the lowest barrier to entry in the decorated apparel space. A Cricut Maker 3 or Silhouette Cameo 4 handles reliable production cuts from day one.

1. Design in vector format — SVG or AI; most HTV does not require mirroring (confirm by product type)
2. Set blade depth to match vinyl thickness — overcutting damages the carrier sheet
3. Weed excess material with a weeding hook; fine detail work requires good overhead lighting
4. Position on garment with carrier sheet face-up on the platen
5. Press at 305°F, medium pressure, 12 seconds
6. Peel carrier sheet per product spec — hot, warm, or cold peel depending on the line

Efficient workspace organization accelerates HTV production significantly. Our team found that keeping weeded transfers flat, labeled, and job-sorted — the same discipline outlined in guides like organizing fabric and craft supplies at home — reduces job errors and rework across the board.

Transfer Failures: The Most Costly Errors

Wasted blanks represent the real financial cost in both methods. Our team has documented the most frequent failure points across active production environments.

Sublimation Mistakes

• Wrong substrate: Pressing onto cotton or low-poly blends. Output is pastel and unusable — no post-press correction exists.
• Skipped mirroring: Text and asymmetric designs are unreadable. Mirror before every single print run without exception.
• Damp blanks: Moisture in the garment creates ghost marks and color banding across the transfer. Pre-press all blanks for 5–10 seconds before applying the transfer.
• Standard inkjet paper: Sublimation dye bleeds laterally on regular paper. Use only dedicated sublimation transfer paper.
• Calibration drift: Budget heat presses drift 10–20°F low over months of use. Verify platen temperature with a laser thermometer monthly.
• Expired ink: Most sublimation inks degrade 12–18 months after opening. Faded or off-hue output is frequently an ink age issue, not a press problem.

Warning: Never substitute standard inkjet ink for sublimation ink — the chemistry is incompatible and will permanently clog or damage sublimation print heads.

HTV Mistakes

• Wrong peel timing: Hot-peel vinyl pulled cold will lift. Cold-peel vinyl pulled hot will stretch and distort. Read the product data sheet every time.
• Over-pressing: Scorching vinyl causes permanent adhesive breakdown and surface discoloration. Excess press time is more damaging than insufficient time for most PU HTV products.
• Incomplete weeding: Vinyl remnants outside the design area create visible artifacts after pressing. Inspect every piece under direct light before loading the press.
• Incompatible layer stacking: Not all HTV brands bond cleanly to each other. Test multi-color layer combinations before any production run.
• Soft pressing surface: Foam pads and thick mat underlays create uneven pressure distribution. Use a hard platen or firm Teflon-covered surface.

Material selection errors at setup are always more expensive than the time spent verifying specifications upfront. This discipline applies across all precision craft work — whether selecting the correct needle for a specific fabric type (choosing the right sewing needle for each fabric follows identical logic) or confirming vinyl grade compatibility with a substrate before committing to a run.

Diagnosing Washed-Out Colors and Peeling Edges

Most sublimation vs heat transfer vinyl failures trace back to temperature miscalibration or substrate mismatch. Our team uses a structured diagnostic approach to isolate root cause quickly rather than guessing.

Sublimation Fixes

Washed-out or pastel output:

• Verify polyester percentage — below 65% produces this result without exception
• Confirm press temperature with a contact or laser thermometer; analog gauges drift
• Increase press time in 5-second increments — most budget presses run 10–15°F below stated temperature

Ghost image or shadow print:

• Transfer paper shifted during pressing — tape all four edges on every run going forward
• Blank had residual moisture — pre-pressing is mandatory in humid environments and for stored blanks

Color cast or hue shift:

• ICC profile is mismatched to current ink and paper combination — re-profile with the active consumables
• Ink is past shelf life — replace the cartridge and reprint a test
• Platen pressure is uneven — check distribution with a pressure test sheet

HTV Fixes

Edges lifting after first wash:

• Insufficient initial pressure — add a second press pass at the same temperature and time
• Fabric has a silicone or moisture-wicking coating — specialty adhesion HTV or primer required
• Stretch garment pressed with non-stretch vinyl — use stretch-rated HTV for spandex and Lycra blends

Vinyl cracking after multiple washes:

• Over-pressed initially — adhesive layer was compromised during application
• Rigid PVC HTV applied to a high-stretch garment — switch to PU or stretch-grade product

Carrier sheet not releasing cleanly:

• Press temperature was too low — the adhesive did not fully activate
• For cold-peel products: allow a full 30-second cool-down period before attempting peel

Scaling a Profitable Custom Print Operation

Long-term method selection in the sublimation vs heat transfer vinyl debate comes down to product catalog mix and weekly order volume. There is a clear right answer for each business model.

Sublimation at Scale

Sublimation's per-unit cost drops sharply as volume increases. Ink and transfer paper cost per 11×17 print runs $0.50–$1.50 at standard retail ink pricing. For shops running 100+ units per week on polyester-heavy catalogs — performance shirts, mugs, tumblers, mousepads, aluminum panels — sublimation is the clear economic winner.

• Move to a wide-format printer (Epson F570 or Sawgrass SG1000) for 13-inch output that covers XL garments in a single pass
• Invest in a rotary mug press — hand-wrapping produces inconsistent contact and banding at production volume
• Batch press by platen size — changing platens mid-run is the single largest time cost in a sublimation workflow
• Source blanks from consistent vendors — polyester percentage and weave variation across suppliers causes visible color inconsistency across same-design runs
• Run a monthly color consistency check against a reference print to catch ink or calibration drift early

HTV at Scale

HTV scales differently from sublimation. Labor — specifically weeding and alignment — is the production bottleneck, not equipment cost. At volume, HTV operations typically transition to DTF (direct-to-film) to eliminate the weeding step while retaining full cotton compatibility.

• Add an auto-contour vinyl cutter with optical registration (Graphtec CE7000 series) — eliminates manual registration for printed HTV and spot color work
• Pre-weed in batches during press downtime to maintain continuous throughput at the press
• Build a repeat-order design library — eliminating re-cut time on returning customer artwork recovers margin immediately
• Evaluate DTF as the logical scale upgrade — same heat press, no weeding requirement, compatible with cotton and blends like HTV

Our team's firm recommendation: start with HTV for cotton-dominant product lines. Run sublimation in parallel for polyester and hard goods from day one. Graduate to DTF when weekly volume makes manual weeding the primary labor cost. This is not a binary choice — the most profitable small shops run both processes simultaneously and route orders by substrate.

Frequently Asked Questions

The substrate decides the method — not the other way around.
