How Much Pressure Should a Heat Press Use?
by William Sanders
The first time a crafter watches a perfectly designed vinyl transfer peel off a freshly pressed shirt, the frustration is immediate. Temperature was checked, the timer was set correctly, and everything seemed fine. What went wrong almost always comes down to pressure — the one setting most beginners overlook entirely.
Heat press pressure settings determine how firmly the heated platen (the flat metal surface) contacts the transfer and fabric beneath it. Get this wrong and adhesion fails, edges lift, or fabrics suffer permanent damage. Pairing the right pressure with the right heat and time is the foundation of good results, and consulting a reliable heat press temperature and time guide builds that foundation fast. This guide covers everything needed to understand, set, and maintain proper pressure across different materials and project types.
Contents
What Heat Press Pressure Settings Actually Control

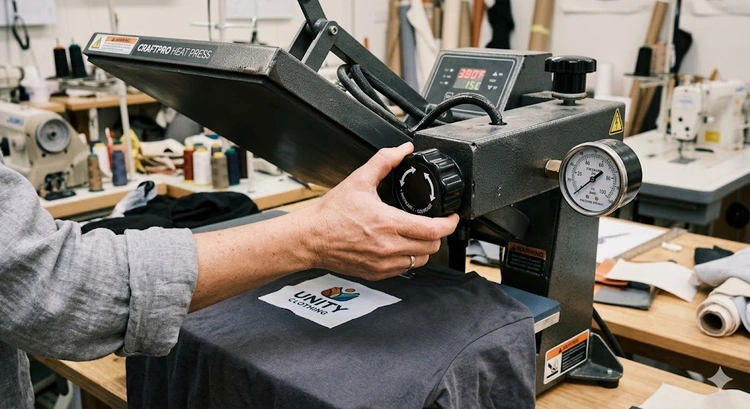

Pressure is the compressive force the upper platen applies to the material and transfer resting on the lower platen. On most machines, a knob on top controls it. The scale typically runs from 1 to 9, or uses labels like light, medium, and heavy. Exact markings vary by brand, but the underlying principle is the same: more turns of the knob means more downward force on whatever is being pressed.
The Pressure Scale Explained
A setting of 1 or "light" means the platens are barely in firm contact. A setting of 9 or "heavy" means significant compressive force is being applied. Medium pressure — around 4 to 5 — is the standard starting point for most transfers on cotton T-shirts. Iron-on transfers, the precursor to modern heat press vinyl, established early on that consistent contact between heat source and material is critical for bonding. Contemporary HTV and sublimation workflows build on exactly that same principle.
How Pressure Works Alongside Heat and Time
These three variables are interdependent. Slightly lower pressure can sometimes be offset by a modest increase in dwell time, but pushing any single variable too far creates new problems — scorched fabric, brittle transfers, or adhesion that fails after the first wash. Most transfer manufacturers publish recommended settings for all three variables. Those numbers reflect real testing on real materials and serve as a calibrated starting point. Treating them as optional suggestions is a reliable path to wasted supplies.
How Different Materials React to Pressure
Not every fabric behaves the same way under a press. A setting that produces clean results on a standard cotton tee can crush the pile of a velvet or leave a permanent shiny mark on thin polyester. Recognizing how different substrates respond to compression is central to dialing in heat press pressure settings correctly the first time.
Cotton and Standard Blends
Cotton is the most forgiving material for heat pressing. Medium to medium-high pressure — roughly 4 to 6 on a standard dial — works well for most HTV and transfer paper applications on 100% cotton or 50/50 blends. The weave is sturdy enough to handle compression without distortion. Thicker items like hoodies, structured hats, or canvas totes often need slightly higher pressure to ensure full platen contact across their uneven surfaces. For canvas work specifically, pressure interacts with the weave differently than it does with knit apparel; a practical walkthrough is available in this guide on how to heat press canvas bags.
Delicate and Stretch Fabrics
Stretchy fabrics, thin polyesters, and athletic moisture-wicking materials require noticeably lower pressure. Heavy compression on these can cause the fabric to stretch under the press and then snap back, distorting the transfer. Synthetic fibers develop a permanent shiny heat mark when too much force is combined with high heat. Fine mesh and open-weave fabrics can get crushed flat at platen contact points. A lighter setting — around 3 to 4 — paired with a thin pressing pillow generally produces the cleanest results on stretch knits and performance fabrics.
| Material Type | Recommended Pressure (1–9 scale) | Key Notes |
|---|---|---|
| 100% Cotton | Medium–High (5–6) | Most forgiving; standard starting point for HTV |
| 50/50 Cotton-Poly Blend | Medium (4–5) | Watch for polyester shine at higher settings |
| 100% Polyester | Medium-Low (3–4) | Lower heat + pressure reduces dye migration risk |
| Stretch / Athletic Knit | Light–Medium (3–4) | Use a pressing pillow to prevent distortion |
| Canvas / Heavy Duck | Medium–High (5–7) | Thick weave needs firm, consistent contact |
| Neoprene / Foam | Light (2–3) | Permanent compression occurs at high pressure |
| Velvet / Flock-backed Fabric | Light (2–3) | Heavy pressure crushes texture irreversibly |
| Hard Sublimation Substrate | Medium–High (5–6) | Firm, even contact prevents ghosting |
The Case for Higher vs. Lower Pressure
There is a natural instinct to press harder — more pressure surely means better bonding. In some situations, that instinct is correct. In others, it is the fastest way to ruin a project. Understanding the real trade-offs gives users the ability to make deliberate, informed adjustments instead of defaulting to maximum force.
When Higher Pressure Helps
Thick or specialty transfers genuinely benefit from firm compression. Glitter HTV, puff vinyl, and multi-layer designs all need solid, even contact across their entire surface area to bond uniformly. Sublimation transfers on ceramic-coated substrates require consistent, firm pressure to prevent ghosting — a blurring effect caused by microscopic movement during the press cycle. Items with seams, button plackets, or internal pocket edges also call for higher pressure to bridge the gaps and achieve full contact. The thicker or more textured the transfer, the more important it is that pressure is adequate rather than minimal.
When Lower Pressure Protects the Project
Lower pressure is the correct choice for thin or textured materials. It also matters with fine-detail transfers — intricate linework, small lettering — where too much compressive force can spread the edges of the design slightly, reducing crispness. Foam and neoprene compress permanently under heavy pressure and will never recover their original thickness. Flock transfers, which have a soft velvet finish, lose that texture entirely when pressed too hard. The goal with these materials is finding the minimum effective pressure — just enough contact for adhesion, nothing beyond that.
Practical Tricks for Dialing In the Right Pressure
Understanding theory and actually setting the press correctly on an unfamiliar material are two different challenges. Several hands-on methods help users find the right heat press pressure settings without burning through stock on test runs.
The Paper Test Method
The most reliable technique is the paper resistance test. A dollar bill or sheet of standard copy paper is placed flat on the lower platen, then the press is closed. When pulled out, there should be moderate resistance — the paper slides free with noticeable effort but without tearing. If it slides out too easily, pressure is too low. If it tears or will not move at all, pressure is too high. This test provides a consistent, objective reference point before any material or transfer touches the machine. Many experienced users run it at the start of every pressing session as a quick sanity check.
Reading the Transfer After Pressing
A finished transfer communicates a great deal about what happened during the press cycle. Edges that lift immediately after peeling indicate insufficient pressure or uneven platen contact. The choice of peel method can also affect how problems appear — peeling too early on a cold-peel transfer, for example, can mimic the look of a pressure failure. For a clear breakdown of how each method interacts with transfer quality, the comparison of cold peel vs hot peel transfer paper covers the key differences in detail. On the other end, crushed design detail, shiny marks on surrounding fabric, or transfers that stick aggressively to the carrier sheet usually point to excess pressure. A properly executed press shows clean edges, uniform adhesion, and no visible fabric distortion.
Quick Adjustments That Deliver Immediate Results
Sometimes the fix does not require touching the pressure dial at all. A few simple physical adjustments can resolve adhesion problems more quickly than recalibrating the machine from scratch.
Padding the Platen
Adding a thin silicone pad, heat-resistant foam pad, or a few layers of folded felt to the lower platen changes the effective pressure of the press without moving the dial. This is particularly useful when pressing items with uneven surfaces — shirt hems, zipper areas, or garments with thick internal seams — where the flat platen cannot make consistent contact. The padding fills gaps and distributes force more evenly across the pressing surface. Many experienced crafters keep pads in two or three different thicknesses to handle different garment constructions on the fly.
Checking Platen Levelness
An unlevel platen is one of the most overlooked causes of inconsistent adhesion. If the upper platen applies more force on one side than the other, half the transfer bonds cleanly while the other half lifts. Testing is straightforward: place folded paper strips at each corner of the lower platen and close the press. If one strip pulls out more easily than the others, the platen is not level. Most machines include adjustment screws on the upper platen for exactly this purpose. Users deciding between machine styles may find this comparison of clamshell vs swing away heat press useful for understanding how each design affects platen contact geometry.
Building a Consistent Pressure Routine
Getting heat press pressure settings right once is a good start. Maintaining that consistency across hundreds of presses — over different materials, different transfer types, and the full lifespan of the machine — is what separates occasional crafters from reliable producers.
Keeping a Press Log
A simple notebook or spreadsheet recording material type, transfer type, pressure setting, temperature, dwell time, and result is one of the most underrated tools available. When a transfer comes out perfectly, logging those settings makes repeating that result straightforward. When something fails, the log helps isolate which variable changed. Over time, this record becomes a personal reference guide calibrated to the specific machine and the materials in regular use. It is far more reliable than memory, especially when returning to a material that has not been pressed in several months.
Maintaining the Pressure Mechanism Over Time
The pressure adjustment mechanism on most heat press machines — a threaded rod and spring assembly — can loosen or drift with regular use. A setting that felt like medium a year ago may have shifted noticeably. Running the paper test periodically and comparing results against logged sessions reveals drift before it starts causing adhesion failures. Keeping the lower platen clean matters too: adhesive residue from transfer carrier sheets can build up and effectively raise the platen surface height, altering actual pressure without any dial change. A consistent cleaning routine preserves the accuracy of every setting on the dial.
Frequently Asked Questions
What is the standard heat press pressure setting for cotton T-shirts?
For most HTV and standard transfer paper applications on 100% cotton, medium to medium-high pressure — roughly 4 to 6 on a 1-to-9 scale — is the accepted starting point. The exact setting depends on the specific transfer type and the thickness of the garment, so it is always worth verifying against the transfer manufacturer's recommendations.
How can users tell if heat press pressure is too low?
The most obvious sign is transfer edges that lift or peel immediately after pressing, even before the first wash. Incomplete adhesion across the design — where some areas bond well but others look dull or loose — also indicates insufficient pressure. Running the paper resistance test before pressing is the fastest way to catch a low-pressure setting before any material is wasted.
Can too much heat press pressure damage fabric?
Yes. Excessive pressure on delicate or synthetic fabrics can cause permanent shiny marks around the pressed area, crush the texture of materials like velvet or flock, and distort stretch fabrics that compress under force and then rebound. Foam and neoprene are especially vulnerable — they will permanently lose thickness under heavy pressure and will not recover.
Why does one side of a heat press transfer lift after pressing?
Uneven adhesion across a transfer is almost always caused by an unlevel platen. If the upper platen applies more force on one side than the other, the well-pressed side bonds and the under-pressed side lifts. Checking levelness with folded paper strips at each corner of the platen — and adjusting the machine's leveling screws if needed — corrects this problem directly.
Do heat press pressure settings differ for HTV versus sublimation transfers?
Yes, though the differences are moderate. Standard HTV on cotton typically uses medium-high pressure. Sublimation on hard substrates like ceramic-coated mugs or aluminum panels benefits from firm, consistent pressure to prevent ghosting from any movement during the press. Sublimation on fabric, on the other hand, often requires lower pressure similar to standard HTV to avoid fabric distortion, especially on polyester blends.
Final Thoughts
Pressure is the variable most crafters adjust last and understand least — but getting it right consistently is what turns good-looking transfers into durable, wash-proof results. Start with the paper resistance test to establish a reliable baseline, build a simple press log to capture what works, and revisit platen levelness any time adhesion becomes uneven. Small, methodical adjustments to heat press pressure settings pay off in fewer failed transfers and better output from every press session.
