Heat Press Pressure Settings: A Complete Guide

Getting your heat press pressure settings right is what separates a transfer that lasts for years from one that peels after the first wash. For most standard heat transfer vinyl on 100% cotton, medium pressure is your starting point — but the real skill is knowing when and how to move away from that baseline.

Pressure is the most underrated variable on your heat press. Temperature and time get all the attention, but pressure is what physically bonds the adhesive layer to your fabric. Too little and the transfer lifts at the edges. Too much and you crush delicate materials or permanently distort stretchy garments. For a complete look at how all three variables work together, our heat press temperature and time guide is the perfect companion to this one.

What Heat Press Pressure Actually Does

Before you touch the adjustment knob, you need to understand the mechanics. Pressure isn't just squeezing things together. It's creating uniform, complete contact between your transfer material and the fabric surface so the adhesive or dye can bond properly under heat. Miss that contact anywhere and you get a patchy, partial transfer.

The Three Variables That Work Together

Every heat press transfer depends on three variables working in sync:

• Temperature — activates the adhesive layer or sublimation dye
• Time — gives the heat enough duration to fully work
• Pressure — ensures total, even contact across the entire design surface

Think of it like cooking on a pan. You can have the right temperature and the right time, but if the pan isn't making contact with the food, nothing cooks evenly. Pressure is your contact guarantee. Most transfer failures that people blame on temperature are actually pressure problems in disguise.

According to Wikipedia's article on heat transfer vinyl, HTV uses a thermoplastic adhesive that requires both heat and physical pressure to fully bond to textile fibers. That's the science behind why uneven pressure creates patchy or incomplete transfers — even when your temperature dial is perfectly set.

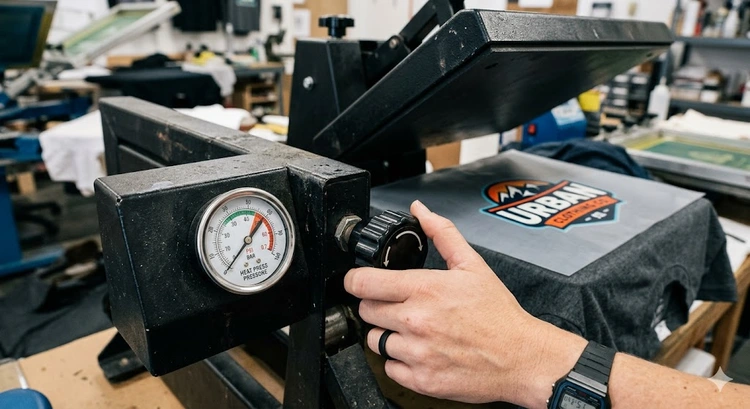

How Pressure Is Measured on Your Machine

Most consumer-grade heat presses don't display pressure in pounds per square inch (PSI). You typically get one of these:

• Numbered dial (1–10 scale) — 4 to 6 is usually medium pressure on most machines
• Thumbscrew mechanism — clockwise increases pressure, counterclockwise decreases it
• Spring-loaded handle — resistance you feel when closing tells you the pressure level
• Industrial press with PSI gauge — most HTV transfers need 40–60 PSI; sublimation needs 60–80 PSI

Don't assume the middle of your scale equals medium pressure. Calibrate it yourself using the dollar bill test: slide a dollar bill under the closed platen. At medium pressure, you feel resistance pulling it out but can still move it without ripping. Too easy to pull = too light. Can't move it at all = too heavy.

Setting Heat Press Pressure Settings by Material Type

This is where most people go wrong. They find one setting that works for cotton HTV and apply it to everything. Every material has different thickness, texture, and adhesive chemistry. One pressure setting will not cover all of them.

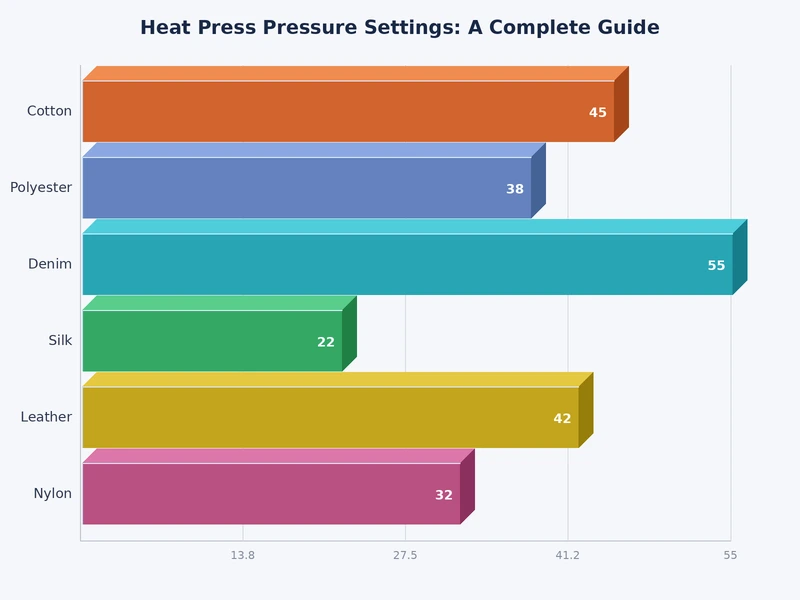

Pressure Settings Reference Table

If you're working with glitter HTV, its thicker construction means you need more pressure than you'd expect. Our breakdown of glitter HTV vs regular HTV explains exactly why the structural differences affect how you press — and why the same settings used for standard vinyl will often leave glitter transfers with lifted edges.

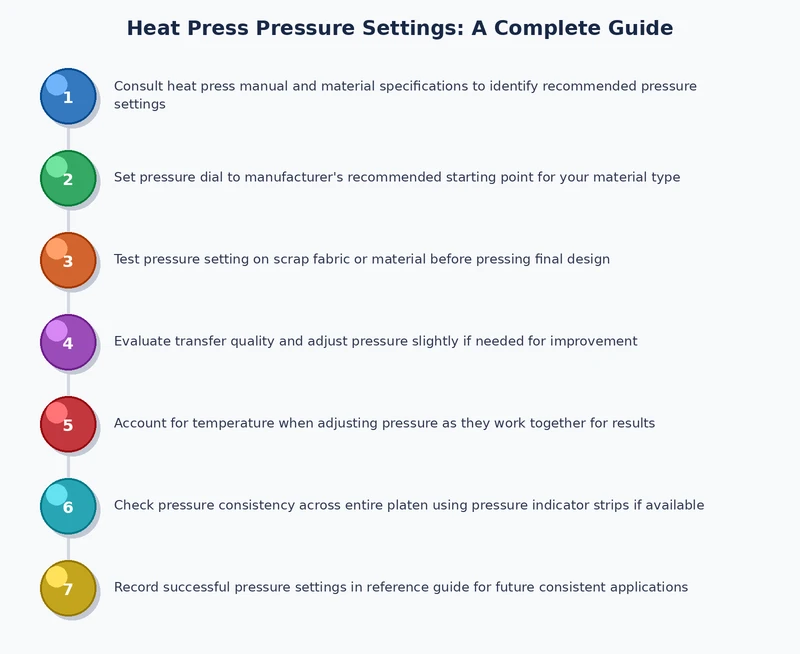

Step-by-Step Pressure Adjustment Process

Follow these steps every time you switch materials, change garment thickness, or start a new batch:

1. Heat your machine to operating temperature first. The platen expands slightly as it heats — pressure set on a cold machine will be different once it's hot.
2. Place your transfer material on the fabric. Add a Teflon cover sheet on top.
3. Close the press slowly and feel for resistance as the handle comes down.
4. Do the dollar bill test. Slide a bill under the edge of the platen. You want clear resistance — not free movement, not immovable.
5. Adjust one increment at a time if needed. Close, test again. Repeat until it feels right.
6. Press a scrap piece of the same fabric and transfer material before touching your actual garment.
7. Peel the carrier sheet and inspect the result. Look for complete adhesion with no lifted corners, bubbles, or uneven shine.

For a full walkthrough of the application process from weeding through pressing, our guide on how to apply heat transfer vinyl step by step covers everything you need.

Best Practices for Getting Consistent Results

Knowing the right settings is only half the battle. Applying them consistently — every press, every session — is what actually produces reliable results. These habits eliminate the guesswork.

Always Do a Test Press First

Never skip the test press. Not even when you're in a hurry. Not even when you've used this same material a hundred times. Here's why:

• HTV adhesive formulations vary between brands — even the same color from a different roll can behave differently
• Garment construction changes with every style — same fabric, different weave density
• Your platen wears unevenly over time and calibration drifts without you noticing
• Humidity and ambient temperature subtly affect how adhesives bond

Use scrap fabric. Press a 2-inch square of your transfer. Peel it, inspect the adhesion, and do one quick hand-wash before trusting the setting for a full run. This single habit will save more garments than any other tip in this guide.

Pro tip: Always test on the exact fabric you're pressing — not something similar. Even fabrics labeled identically can vary in weave density and thickness between brands, and that difference directly affects how much pressure you need.

Mistakes That Wreck Your Transfers

These pressure mistakes are responsible for the vast majority of transfer failures:

• Using one setting for every material. Cotton HTV pressure will under-press sublimation on polyester and over-press spandex. You need different settings for different jobs.
• Setting pressure on a cold machine. Always wait until your press reaches operating temperature before adjusting pressure.
• Ignoring uneven platen pressure. One corner consistently lifting is a sign your platen isn't applying even force. Fix this before running a batch.
• Over-pressing foam or puff materials. Heat-activated puff HTV expands under heat — crush it first with too much pressure and the effect is gone permanently.
• Skipping the Teflon sheet. A cover sheet distributes pressure more evenly and prevents scorching on sensitive surfaces. Our guide on how to use a Teflon sheet with a heat press explains the right way to use one.

If you're dealing with recurring failures and aren't sure of the root cause, our roundup of common heat press problems and fixes includes a dedicated pressure troubleshooting section with specific solutions.

When to Increase or Decrease Your Pressure

Your baseline settings are a starting point, not a rule. Knowing when to break from them — and in which direction — is what separates confident pressers from people who keep ruining garments and wondering why.

Materials and Situations That Need Heavier Pressure

• Thick or structured fabrics — canvas, denim, heavy fleece. The dense weave doesn't compress as easily, so you need more force to create full contact.
• Sublimation on polyester — the dye must physically penetrate the fiber. Soft pressure gives you faded, washed-out colors.
• Screen print transfers — thick ink layers require firm, even pressure to bond completely without cracking at the edges.
• Old or improperly stored HTV — the adhesive can dry out slightly in storage. A modest pressure increase helps compensate.
• Layered multi-color designs — each additional vinyl layer adds thickness. Bump your pressure slightly when layering to account for the extra height under the platen.

Materials and Situations That Need Lighter Pressure

• Stretch fabrics — spandex, Lycra, performance wear, compression garments. Heavy pressure permanently distorts the fabric's elasticity.
• Foam and puff HTV — designed to expand during pressing. Over-pressing crushes the foam before it can activate.
• Rhinestone and embellishment transfers — excessive pressure shatters or flattens decorative elements beyond repair.
• Thin or sheer fabrics — too much pressure forces adhesive through the weave and onto the back of the garment.
• Dark garments with specialty finishes — high pressure creates unwanted sheen marks or permanently flattens the fabric texture. For dark fabric specifics, our guide on how to heat press on dark shirts breaks down the adjustments you need to make.

Quick Wins for Better Transfers Starting Today

You don't need a new machine or expensive upgrades to improve your results immediately. These adjustments take minutes and make a noticeable difference from your very next press.

Check Your Platen for Even Pressure Distribution

An uneven platen is the silent killer of transfers. Your machine might feel fine, but one corner could be applying 20% less pressure than the rest — and you'll see it as lifted edges or incomplete adhesion on one consistent side of your designs.

Here's how to check in two minutes:

1. Place a single sheet of regular copy paper across the full platen surface.
2. Close the press at your normal operating pressure for a few seconds.
3. Open and inspect the paper. Look for consistent compression marks across the whole sheet.
4. Uneven marks or blank spots indicate uneven pressure — one side of your platen isn't making full contact.

If you find uneven pressure, a silicone platen pad (a foam or silicone insert that sits on the lower platen) adds a slight give to the surface. This dramatically improves contact uniformity on garments with seams, zippers, or pockets that create high spots under the platen.

Tools That Make Pressure Easier to Get Right

These aren't optional extras. They're essential if you want reliable results:

• Teflon cover sheet — distributes pressure more evenly across the design, protects delicate surfaces, prevents scorching on heat-sensitive materials
• Silicone platen pad — fills the gaps created by seams, buttons, and pockets so the platen makes full contact with the design area
• Heat-resistant pillow inserts — essential for pressing hoodies, hats, and bags where internal seams create pressure dead zones
• Infrared thermometer — verifies that your platen is reaching the actual temperature shown on the dial (most consumer presses run 10–20°F off calibration)
• Spare dollar bills — the fastest, cheapest way to verify pressure before every session

Frequently Asked Questions

Final Thoughts

Mastering heat press pressure settings is simpler than it sounds — start with medium pressure on cotton, use the dollar bill test every session, test on scrap fabric before every batch, and adjust incrementally based on your specific material. Pick one project this week, follow the steps in this guide, and you'll immediately see the difference in transfer quality and durability. If you run into issues along the way, bookmark our heat press problems and fixes guide — it's the fastest way to diagnose what's going wrong and get back to pressing confidently.
