How to Use a Teflon Sheet with a Heat Press

The first time an adhesive transfers to a bare platen, the repair process is neither quick nor cheap. Scrubbing baked-on HTV glue from a lower platen takes time and risks permanent surface damage. One tool prevents the entire scenario. A proper teflon sheet for heat press work is non-negotiable — not optional, not a beginner shortcut, but a core component of every professional setup. For a full overview of protective practices, visit the heat press maintenance tips resource page.

This guide covers sheet selection, placement technique, failure diagnosis, and long-term care. You will finish with a clear, actionable system for every substrate type you press.

Choosing the Right Teflon Sheet for Heat Press Work

The teflon sheet sits between your heat element and the substrate. That position is deceptively simple. The wrong sheet — wrong thickness, wrong material — creates as many problems as it solves. Selection is the first decision, and it affects everything downstream.

Sheet Thickness and Material Options

Polytetrafluoroethylene (PTFE) is the core material in most teflon sheets. It withstands sustained temperatures above 500°F. That thermal ceiling is critical for shops running sublimation cycles repeatedly at 400°F. PTFE does not degrade, discolor, or off-gas at normal decorating temperatures — which is exactly why it became the industry standard.

• Standard PTFE sheets (0.08mm–0.13mm): Correct for everyday HTV, screen-printed transfers, and flat garment substrates.
• Heavy-duty sheets (0.25mm and above): Required for sublimation, full-bleed designs, and extended high-temperature press runs.
• Silicone-coated sheets: Add cushioning. Useful for uneven or foam-backed substrates. Less precise in heat transfer than bare PTFE.
• PTFE-coated glass fabric: Maximum durability. The commercial standard for high-volume production environments.

Supporting Tools

The teflon sheet does not operate in isolation. Pair it with these items on every press station:

• Heat-resistant tape for holding registration on delicate or slippery substrates.
• Nomex padding for uniform pressure distribution beneath the lower platen.
• A lint roller to remove debris before every press cycle — debris prints under heat.
• A plastic scraper for lifting adhesive buildup without scratching the PTFE surface.

Beginner Placement vs. Advanced Layering Technique

Not all operators deploy the teflon sheet for heat press work the same way. The gap between beginner and advanced technique is wider than most expect, and the difference shows up directly in transfer quality.

The Beginner Setup

New operators typically use one teflon sheet on top of the transfer. Single-layer coverage. The goal is to prevent scorching and stop adhesive from contacting the upper platen. This is correct — but incomplete.

Beginners also frequently skip consulting a proper heat press pressure guide before their first session. Pressure miscalibration combined with a misplaced teflon sheet still produces failed transfers, even with the barrier in place. Set pressure correctly first. Then add the sheet.

Common beginner errors in this phase:

• Using a single sheet for all substrates without adjusting placement or coverage area.
• Pressing at maximum pressure, assuming the teflon sheet compensates for technique gaps.
• Ignoring sheet condition between sessions and reusing degraded material.

The Advanced Workflow

Experienced decorators use teflon sheets in layers. A bottom sheet on the lower platen protects against adhesive bleed-through from the underside of the garment. A top sheet sits between the upper element and the transfer. For multi-layer HTV stacks, a third sheet between HTV layers prevents bond contamination during intermediate presses.

Advanced operators also rotate teflon sheets to distribute wear evenly across the surface. Concentrated single-zone use accelerates discoloration and reduces heat uniformity across the platen face over time. Rotation extends sheet lifespan meaningfully without any added cost.

Teflon Sheet Types Compared

The table below compares the four sheet variants across the criteria that matter most in a production environment. Use it to match your sheet specification to your actual workload.

Reading the Comparison

Silicone-coated sheets add cushioning at the cost of heat transfer precision. PTFE-coated glass fabric delivers the highest performance ceiling and the lowest per-press cost at volume. Standard PTFE is the correct starting point for most small operations. Do not overbuy on thickness — but do not underspec for your working temperature either. The table is a specification floor, not a marketing chart.

Techniques That Improve Every Transfer

Using a teflon sheet for heat press work correctly requires understanding placement, layering order, and press sequencing. The mechanics are straightforward. The discipline required to execute them consistently is not.

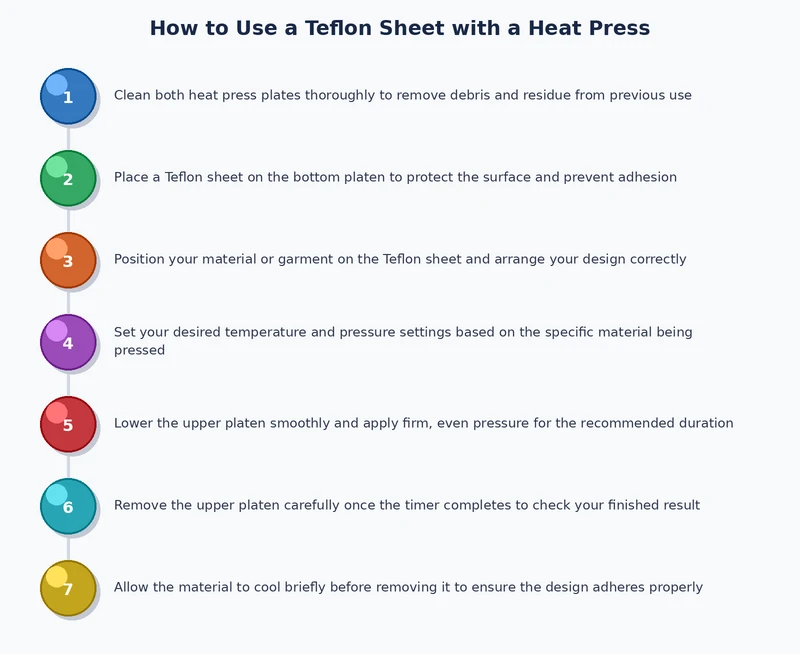

Single-Layer Pressing

1. Pre-press the substrate for 3–5 seconds to evacuate moisture and set the material flat.
2. Position your HTV or transfer paper on the substrate with precise registration.

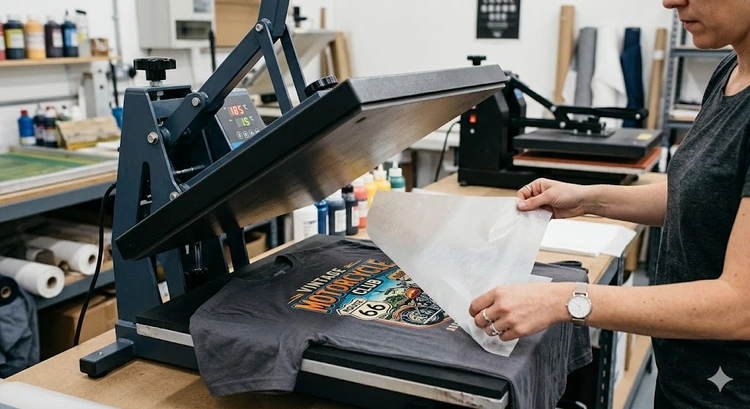

3. Place the teflon sheet flat over the entire design, extending 1 inch beyond the transfer on all sides.
4. Close the press and apply the manufacturer's recommended time, temperature, and pressure.
5. Lift the teflon sheet straight up the moment the press opens — do not slide it.

Always lift the teflon sheet straight up — never drag it sideways. Dragging smears warm adhesive across the transfer surface and destroys edge definition on fine linework and small text.

Layering and Specialty Substrates

For layered HTV stacks, reposition to a fresh zone on the teflon sheet for each layer press. Residual adhesive from a previous layer will contaminate subsequent presses if you reuse the same contact zone. Contamination appears as surface roughness or reduced adhesion on the final layer.

For specialty substrates — faux leather, nylon, performance fabrics — the teflon sheet must cover the entire substrate surface without exception. Partial coverage creates visible pressure marks exactly where the sheet edge meets uncovered material. Those marks are permanent and non-recoverable.

Diagnosing Teflon Sheet Problems

The teflon sheet absorbs significant punishment across its lifespan. Recognizing failure modes early prevents costly transfer losses and protects your equipment.

Ghosting and Residue Buildup

Ghosting — faint outlines of previous transfers appearing on new work — signals adhesive or ink residue accumulation on the sheet surface. Clean the sheet with 90%+ isopropyl alcohol on a lint-free cloth after every 15–20 press cycles. Wipe in one direction only.

Brown or yellow discoloration that does not respond to cleaning indicates thermal degradation of the PTFE coating itself. Surface cleaning will not restore heat transfer uniformity once the coating breaks down. Replace the sheet at that point — continuing to use it costs you transfer quality on every subsequent press.

Uneven Heat Distribution

Transfers showing cold spots — incomplete adhesion concentrated on one side or in one zone — point to a warped or creased teflon sheet. A crease creates an air pocket between the platen and the substrate. That pocket blocks conductive heat transfer and produces inconsistent adhesion across the design area.

If vinyl is lifting after pressing and the teflon sheet appears intact, the root cause may be elsewhere in the workflow. Review the full diagnostic process at How to Fix Heat Transfer Vinyl That Is Peeling before making equipment decisions.

A single crease in a teflon sheet is sufficient to produce cold spots across an entire transfer — do not attempt to flatten a creased sheet and continue pressing with it.

Costly Errors That Ruin Transfers and Equipment

The majority of teflon sheet failures trace back to two categories of operator error: reuse without inspection and specification mismatch. Both are entirely preventable.

Reuse Without Inspection

A teflon sheet that looks intact is not the same as one that is functional. Microscopic surface degradation accumulates with every press cycle. Run a finger across the surface before each session. Rough texture indicates material breakdown. A smooth, slightly waxy feel confirms healthy PTFE coating. Replace at the first sign of surface roughness — not after the next failed transfer.

Never fold a teflon sheet for storage. Folding creates permanent crease lines. Those creases disrupt heat distribution on every press that follows. Store sheets rolled loosely or flat between press pads. Hanging storage is also acceptable for large-format sheets.

Wrong Sheet for the Application

Running a standard 0.08mm sheet through sublimation cycles at 400°F accelerates thermal degradation dramatically. The sheet's rated temperature ceiling and its optimal operating range are not the same value. Run sheets at 80% of their rated maximum for consistent longevity.

Sublimation-specific teflon sheets also resist dye migration. Standard PTFE can absorb sublimation dyes over time. That absorbed dye migrates onto subsequent substrates as ghost images — a cross-contamination failure that visual inspection of the sheet will not catch until you see the artifact on a finished piece. Use the right sheet for the right process, without exception.

Maintaining and Replacing Your Teflon Sheet

A teflon sheet for heat press work is a low-cost consumable with a high impact on output quality. Treat maintenance as a scheduled discipline — not a reactive response to visible failure.

Cleaning Protocols

Clean teflon sheets after every session, not every individual press. Use 90%+ isopropyl alcohol on a lint-free cloth. Wipe in one direction only — circular scrubbing embeds particulate debris into the sheet surface. For adhesive buildup common when pressing HTV on high-pile or textured fabrics, use a plastic scraper to lift the adhesive mass before wiping with alcohol. Metal scrapers and abrasive pads scratch PTFE coatings permanently.

Store clean sheets in a dust-free sleeve or flat between press pads. Airborne dust and lint on the sheet surface will print directly onto transfers under heat and pressure. A contaminated teflon sheet actively damages output — it is worse than no barrier at all in that condition.

Knowing When to Replace

Replace teflon sheets when you observe any of the following conditions:

• Visible discoloration (brown, yellow, or gray) that does not clear with isopropyl cleaning.
• Surface roughness detectable by touch along any portion of the pressing zone.
• Any crease that cannot be smoothed flat by hand pressure.
• Ghost transfer images appearing on new substrates after the sheet contacts them.

A quality PTFE sheet, used correctly, lasts 1,000–2,000 press cycles. Budget-grade sheets fail at 200–400 cycles. The per-press cost difference between them is negligible. Buy quality once and replace proactively on a cycle schedule — not reactively after a transfer failure.

Frequently Asked Questions

Key Takeaways

• The teflon sheet for heat press work protects the platen from adhesive contamination and the substrate from scorching — use one on every press, without exception.
• Match sheet thickness and material to your working temperature: standard PTFE for HTV and transfer paper, heavy-duty PTFE or glass fabric for sublimation and high-volume production.
• Advanced technique requires layered placement — a bottom sheet on the lower platen plus a top sheet over the transfer — not single-layer coverage alone.
• Inspect your teflon sheet before every session and replace it at the first sign of discoloration, surface roughness, or creasing; reactive replacement after a transfer failure always costs more than proactive replacement on a cycle schedule.
