How to Heat Press on Hats and Caps

My neighbor pulled me aside at a cookout last summer, holding up a baseball cap with a crinkled, half-peeled vinyl logo on the front. He'd pressed it on a flat platen and couldn't understand why it looked like it had survived a washing machine spin cycle. I knew the problem immediately — he'd treated it like a T-shirt. If you want to learn how to heat press hats and caps the right way, the first thing to accept is that curved surfaces play by completely different rules. Once you understand that, everything else clicks into place.

Hats are among the most requested custom items in the heat press world. People wear them constantly, they're visible, and a clean transfer on a well-made cap looks professional for years. But the curved front panel, structured materials, and tight design real estate make caps genuinely challenging. Before you press a single hat, you need the right equipment, the right transfer type, and a clear process. This guide gives you all three. Start by bookmarking our heat press temperature chart for beginners — you'll refer to it constantly as you dial in your settings.

Why Hats Aren't Like Any Other Blank

The Curved Surface Problem

A flat platen applies even pressure across a flat surface. A hat is not flat. The front panel of a structured baseball cap curves both horizontally and vertically, which means a flat press leaves pressure gaps across the entire transfer area. Those gaps translate directly into incomplete adhesion — edges that lift, centers that bubble, and transfers that peel after the first wash. This is not a temperature problem or a time problem. It is a geometry problem, and no amount of tweaking your settings will fix it.

Hat press attachments exist specifically to solve this. A curved lower platen cradles the cap's front panel while the upper platen descends and applies firm, consistent pressure across the entire design area. The two surfaces conform to each other, eliminating the gaps that destroy transfers on standard platens. If you're pressing caps regularly and skipping this attachment, you're working against yourself every single time.

Hat Materials and What They Mean for You

Caps come in cotton, polyester, poly-cotton blends, and structured fabrics with foam or buckram backing in the front panel. Each material behaves differently under heat. Pure cotton tolerates higher temperatures without issue. Polyester blends require you to stay on the conservative end of your range — push too high and you risk color migration, where the dye in the fabric bleeds up into your transfer and ruins it permanently. Structured caps with foam front panels are the most heat-sensitive of all: excess temperature deforms the foam and collapses the panel's shape.

Always read the hat's label before pressing. If there's no label or the composition is unclear, treat it like a poly-cotton blend and start at the lower end of your temperature range. You can always re-press to improve adhesion. You cannot un-melt a foam front panel or reverse color migration.

The Right Equipment for Heat Pressing Hats and Caps

Hat Press Attachments and Platens

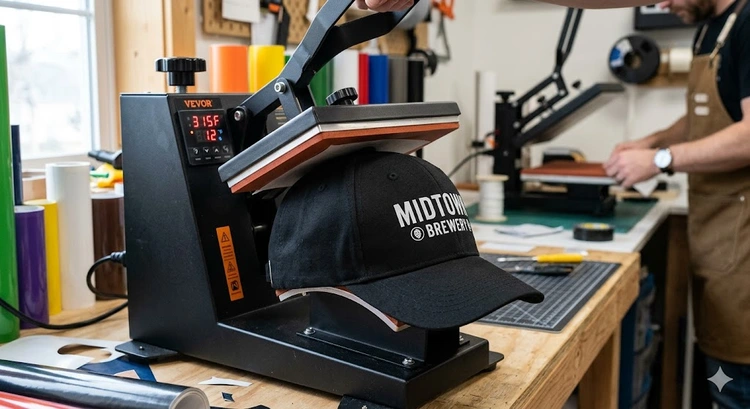

Most mid-range and commercial heat presses accept interchangeable platens, and a hat attachment is one of the most useful additions you can make to your setup. A standard hat platen set includes a curved lower cradle and a matching upper platen, typically measuring around 4" × 5". Some brands sell combination kits with multiple lower platen sizes to handle fitted hats, snapbacks, and beanies, all of which have slightly different curves and panel dimensions.

Your press style matters here too. If you've been weighing the clamshell vs. swing-away heat press decision, hats are one area where swing-away has a clear edge. The arm swings completely out of the way, giving you unobstructed access to the platen when loading and positioning a cap. With a clamshell, the upper platen descends directly above the lower, which makes loading a structured cap without bumping or misaligning it noticeably more difficult.

Vinyl and Transfer Options for Hats

Heat transfer vinyl is the dominant transfer method for caps, and it works well when you choose the right type. Smooth HTV is the most forgiving on hats. It bonds cleanly to both cotton and poly blends, conforms well to the curved surface, and holds up through repeated washing. Flock vinyl delivers a raised, velvet-textured finish that looks premium on fitted caps. Glitter HTV works too, though you need to weed carefully given the typically small design sizes used on hat panels.

One thing to keep off hats: heavy multi-layer stacks. The added thickness fights the curved geometry and increases the odds of lifting at the edges. If you do want to layer HTV vinyl on a cap, cap it at two layers and press each one fully before adding the next. Anything beyond that is asking for edge failures. Keep your hat designs flat and your layers minimal — the curved substrate doesn't give you the same forgiveness you get on a T-shirt.

Hat Press vs. Flat Platen: A Side-by-Side Look

When a Flat Press Still Works

A flat platen does have a place in hat pressing — on unstructured hats. Dad hats, beanies, and soft canvas bucket hats lie completely flat when you remove them from your head, and they press cleanly on a standard platen with no curved attachment required. You still need to position them carefully and apply even manual pressure across the design area, but the geometry isn't fighting you. For anything with a rigid structured front panel, skip the flat platen entirely.

The same principle applies to other flat flexible substrates. If you've worked through heat pressing canvas bags, you know that flat, pliable materials behave predictably on flat platens. Curved, structured ones simply don't, and no technique workaround changes that underlying fact.

Recommended Settings by Material

These are starting points, not fixed rules. Always run a test press on scrap material before committing to a finished cap. Your press's calibration, the specific vinyl brand, and ambient humidity all influence your actual results. The table gets you in the ballpark; testing gets you dialed in.

Starting Simple vs. Going Pro

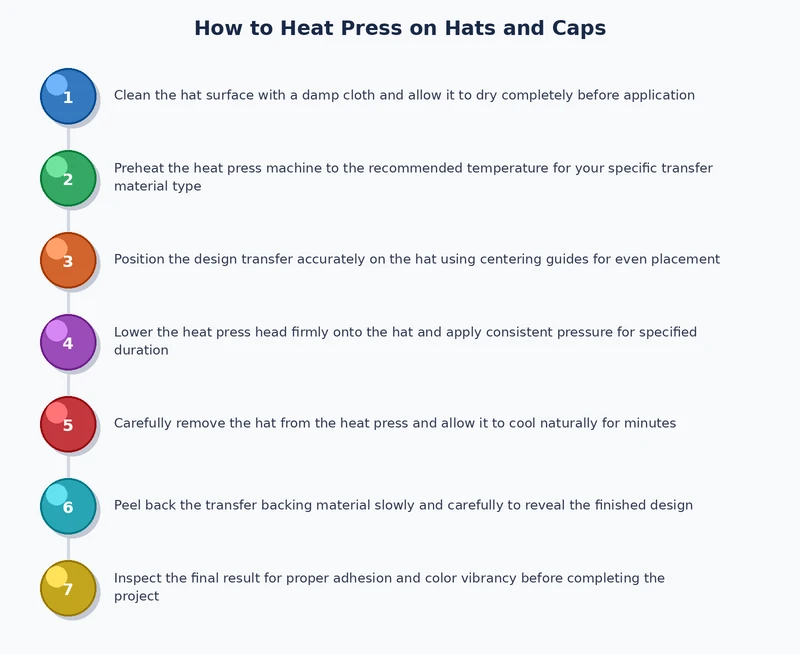

Your First Hat Project

Start with an unstructured cotton dad hat and smooth HTV. This combination is the most forgiving available. Keep your design no larger than 3" × 2" — hat panels are smaller than they look, and a design that runs off the edge ruins both the transfer and the cap. Before applying your vinyl, pre-press the hat for five seconds to drive out moisture and flatten any wrinkles. Moisture trapped under the panel is a silent adhesion killer, and skipping the pre-press is one of the most common beginner mistakes.

Cut and weed your design, find the center of the front panel using a fabric ruler, and position your transfer. Press according to your material settings, let the cap cool fully, and peel. Don't peel hot unless your vinyl specifically instructs it. Inspect all four edges of your transfer — if any edge hasn't bonded, press again for five additional seconds with a Teflon sheet protecting the surface. That's your whole first process. It isn't complicated. It just demands precision.

Stepping Up Your Game

Once basic smooth HTV feels routine, move into specialty vinyls. Glitter HTV on hats works particularly well because glitter vinyls tend to be more flexible than standard finishes, which helps them conform to the curved panel without lifting at the edges. Flock vinyl gives a raised texture that reads as high-end on fitted caps and snapbacks. Both open up design options that smooth HTV simply can't match.

Advanced pressing means understanding when sublimation makes more sense than HTV. According to Wikipedia's overview of heat transfer in printmaking, heat transfer methods have been commercially refined since the 1960s, and modern sublimation on polyester substrates produces photographic-quality results that become part of the fabric itself — no layer, no edge to lift. The full comparison of when to use each method is covered in the HTV vs. sublimation guide, and it's worth reading before you decide which workflow to invest in for caps.

Real Hats, Real Results: What the Process Looks Like

HTV on Snapbacks and Structured Caps

Snapbacks are the most common hat type you'll press commercially. They have a firm poly-cotton front panel, a flat brim, and a structured buckram backing that holds the panel shape. Load the cap onto your curved lower platen so the front panel sits flat and centered against the upper platen surface. The cradle should support the cap's natural shape — if you're forcing it into position, your platen size doesn't match the hat's curve and you'll get uneven pressure.

Position your transfer centered on the front panel, typically about a half inch down from the top seam. Press, release, and immediately check all four edges of the design. Edge adhesion failure shows up right after the press, not later. Catch it now and re-press. Don't wait until you've packaged and shipped the caps to discover lifting edges.

Sublimation on Performance Caps

Performance caps — the lightweight, moisture-wicking styles used in running and athletics — are almost universally 100% polyester, which makes them ideal sublimation substrates. Full-front-panel sublimation, where the entire panel becomes one seamless printed image, requires caps specifically constructed with seam placement that doesn't interrupt the transfer area. These are sold as sublimation-ready blanks by most wholesale hat suppliers and are worth the modest price premium over generic blanks.

Sublimation on caps requires higher heat and significantly longer dwell time than HTV. Tape your transfer paper securely before pressing — any movement during the press creates a ghost double image. The finished result, when done correctly, is a photographic-quality design that cannot peel because it is chemically bonded to the polyester fibers. It's the most durable hat decoration method available.

Mistakes That Ruin Every Hat Press Job

Temperature and Time Errors

Running too hot is the single most common error with hats. Unlike T-shirts, caps contain structural elements — foam, buckram, plastic brims — that react badly to excess heat. A scorch mark on a structured front panel is permanent and visible immediately. There's no salvaging it. Set your temperature conservatively, especially on structured and foam-front caps, and only increase it if the transfer fails to adhere after a proper dwell time.

Under-pressing is equally destructive, just slower. Insufficient dwell time means the adhesive hasn't fully activated, and the transfer will peel within a few wash cycles. If you're uncertain between pressing hotter or longer, adjust time first. It's the safer variable. A few extra seconds at the right temperature is far less risky than a temperature spike on a structured cap.

Positioning and Alignment Failures

Off-center designs are a rite of passage in hat pressing. Everyone does it once. After that, measure every single time. The front panel of a cap has a visible center point at the top seam — use a fabric ruler and chalk marker to find it and measure down from there. Sixty seconds of measuring prevents a ruined cap and wasted vinyl. Don't skip it.

Pressure inconsistency is the other major positioning issue, and it's directly tied to using the wrong platen. If you're pressing structured caps on a flat platen, the center of your design might bond while the edges lift because the curved surface never made contact with even pressure. No number of re-presses fixes this. The solution is the curved hat attachment. Eliminate the root cause and the problem disappears entirely.

What It Costs to Get Into Hat Pressing

Entry-Level Setup

If you already own a mid-size swing-away press, a hat platen attachment adds $30 to $80 to your setup depending on brand and included accessories. That's your primary cost. Blank caps from wholesale suppliers run $3 to $8 each for cotton and poly-cotton styles. HTV costs $5 to $15 per foot depending on finish, and you'll use significantly less material per hat than per shirt given the smaller design area. Your first month of hat pressing — assuming you already have the press — stays comfortably under $150 when you include blanks, vinyl, and the platen attachment.

Mid-Range and Pro Setups

Dedicated hat press machines are a different category entirely. Purpose-built units from brands like Hotronix and Stahls feature rotating platens, precision pressure dials, and ergonomics designed specifically for cap production. These machines run $400 to over $1,000. If hat pressing is your primary product line, a dedicated machine pays for itself in consistency and throughput. If hats are one of several substrates you press, the platen attachment on your existing press is the smarter financial decision by a wide margin.

• Hat platen attachment: $30–$80 — ideal for mixed-substrate shops or occasional hat orders
• Dedicated hat press machine: $400–$1,000+ — right for volume cap production as a primary product

Your weekly hat volume is the deciding factor. Ten hats a week doesn't justify a dedicated machine. Fifty hats a day does. Be honest about your actual volume and buy accordingly.

Final Thoughts

Heat pressing hats and caps is one of the most rewarding skills you can add to your craft setup — demand for custom headwear is consistent, the margins are solid, and a clean cap looks sharp on anyone who wears it. Pick up a hat platen attachment this week, grab a dozen blank caps, and press your first batch before the weekend. Start with a simple smooth HTV design on a dad hat, measure everything twice, and let the results show you exactly where to improve from there.
