How to Port Forward on Your Router (Any Brand)

Our team spent an afternoon trying to stand up a game server for a group of remote players, only to find that every inbound connection timed out without explanation. The router was silently dropping everything — a textbook NAT firewall situation. That experience is exactly why knowing how to port forward on a router is one of the most practical networking skills anyone managing a home setup can develop. For a deeper foundation on home networking gear and configuration, our networking guides cover everything from switches to mesh systems.

Port forwarding instructs a router to pass incoming traffic on a specific port number directly to a designated device inside the local network. Without this rule, routers use Network Address Translation — NAT — to shield all internal devices behind a single public IP. NAT is a real security asset, but it also blocks every unsolicited inbound connection by default. Port forwarding punches a controlled, deliberate hole in that shield.

The workflow is consistent across every major consumer router brand. Netgear, TP-Link, ASUS, Linksys, and D-Link all implement the same underlying logic. Admin interfaces look different, but the required fields — internal IP, port number, protocol — are always identical. Our team has configured port forwarding on over a dozen router models, and the core process never deviates in any meaningful way.

What Port Forwarding Actually Does

NAT and the Firewall Problem

Modern home routers use Network Address Translation (NAT) to assign private IP addresses — typically in the 192.168.x.x or 10.0.x.x range — to every device on the local network. From the internet's perspective, all those devices share one public IP address. Incoming traffic arrives at the router and hits a wall. The router has no built-in reason to forward that traffic to any specific device, so it drops it.

Port forwarding creates a permanent rule that changes this behavior. The router sees incoming traffic on a specified port and routes it to a specific internal IP address instead of discarding it. The rule is permanent, deterministic, and operator-controlled — which is exactly what distinguishes it from UPnP's automatic approach. This is the core mechanism behind how to port forward on a router: define the port, define the destination, and the router handles the rest automatically from that point forward.

The NAT table gets a manual entry that persists until the rule is explicitly deleted or the router resets to factory defaults. Every major router firmware — from consumer-grade to prosumer — implements this mechanism using the same underlying protocol. The brand on the label makes no practical difference to how the rule functions.

Ports, Protocols, and the Numbers That Matter

Ports are logical channels numbered from 0 to 65535. Each number separates different types of network traffic. Port 80 carries HTTP web traffic. Port 443 handles HTTPS. Port 3389 is Windows Remote Desktop. Port 25565 is Minecraft's default server port. Applications document their required port numbers, so identifying the right number is rarely a guessing exercise — it takes one documentation lookup.

Two protocols govern how data moves across those ports: TCP (Transmission Control Protocol) and UDP (User Datagram Protocol). TCP is connection-oriented and guarantees delivery of every packet in order — reliable, but carrying a small latency overhead. UDP is connectionless and faster, with no delivery guarantee. Game servers frequently use UDP for low-latency responsiveness. Remote desktop and file transfer applications prefer TCP. Many services require both protocols simultaneously, which is why most router admin panels offer a "Both" option when defining a forwarding rule.

Port numbers below 1024 are well-known ports governed by IANA standards. Ports 1024 through 49151 are registered ports used by specific documented applications. Ports 49152 and above are dynamic or ephemeral, used for short-lived client-side connections. The vast majority of port forwarding scenarios involve registered ports in that middle range, and our team rarely encounters a use case requiring anything outside it in a home or small-office environment.

How to Port Forward on Any Router

Step 1: Assign a Static Local IP Address

Before creating a port forwarding rule, the target device needs a permanent local IP address. DHCP assigns addresses dynamically — the device may receive a different IP each time it reconnects if no reservation is in place. A forwarding rule pointing to 192.168.1.105 becomes useless the moment the target device reconnects and receives 192.168.1.112 instead. The connection failure is silent and confusing, and it trips up even experienced users who forget this step.

The cleanest solution is DHCP reservation, available in virtually every consumer router. Navigate to the DHCP settings, find the device by its MAC address — a unique hardware identifier printed on the device or visible in its network settings — and assign it a fixed IP within the local subnet. The router will always hand that device the same address regardless of when or how it connects. Our team uses this method consistently over manually configuring a static IP on the device itself, because it keeps all network IP management centralized in one location.

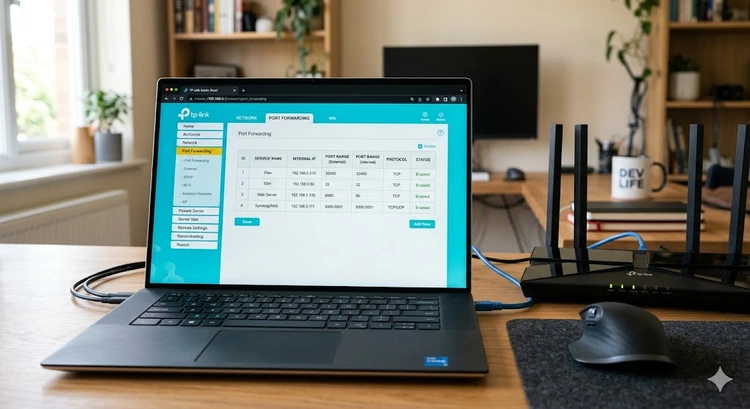

Step 2: Access the Router Admin Panel

Open a web browser on any device connected to the local network. Type the router's gateway IP address directly into the address bar. The most common addresses are 192.168.1.1, 192.168.0.1, and 10.0.0.1. This address is printed on a sticker on the router's underside and is also visible in the network connection details of any connected device under "Default Gateway."

Log in with admin credentials. Default usernames and passwords — typically admin/admin or admin/password — are printed on the router label alongside the gateway IP. Our team strongly recommends changing these defaults during initial router setup. Anyone on the local network can access the admin panel using factory defaults, and on networks where a guest Wi-Fi network is active, that exposure becomes significantly broader without proper credential management.

Step 3: Create the Port Forwarding Rule

The port forwarding section sits in different menu locations depending on brand, but the configuration fields are always the same regardless of where they appear in the interface:

• Netgear: Advanced → Advanced Setup → Port Forwarding / Port Triggering
• TP-Link: Advanced → NAT Forwarding → Virtual Servers
• ASUS: WAN → Virtual Server / Port Forwarding
• Linksys: Security → Apps and Gaming → Single Port Forwarding
• D-Link: Advanced → Port Forwarding

Fill in the internal IP address of the target device, the external and internal port numbers (usually identical), the protocol (TCP, UDP, or Both), and toggle the rule to enabled. Save the configuration and reboot the router if the interface requests it.

Pro tip: If UPnP is currently enabled on the router, disable it before adding manual forwarding rules — active UPnP mappings can override manual entries and create unpredictable routing behavior that is difficult to diagnose.

Step 4: Verify the Port Is Open

After saving the rule, external reachability needs confirmation. Free browser-based port-checking tools test whether a specific port is accessible from outside the local network. Searching "open port checker" surfaces several reputable options. Enter the current public IP address and the forwarded port number — a successful result confirms the rule is active and the port is reachable from the internet.

When a test fails after the rule appears correct, three checks resolve the majority of cases. First, examine the target device's local firewall — Windows Defender and macOS's built-in firewall can block inbound traffic even after the router has successfully forwarded it. Second, check whether the ISP blocks specific ports at the carrier level; some ISPs restrict ports 25, 80, and 443 on residential connections. Third, confirm the forwarding rule's internal IP address matches the device's current local IP, especially if a DHCP reservation hasn't been set up yet.

Where Port Forwarding Makes the Biggest Difference

Gaming and Dedicated Game Servers

Gaming is the scenario that drives most home users to learn how to port forward on a router for the first time. Hosting a dedicated game server — Minecraft, Valheim, Palworld, or any title with self-hosted multiplayer — requires external players to reach the host machine directly. That requires a forwarded port. Without it, every connection attempt times out before reaching the server application, and the experience is indistinguishable from the server not existing at all.

Online gaming on consoles also benefits from port forwarding in specific situations. Strict NAT types — common on consoles operating behind double-NAT configurations or certain ISP setups — limit who can join a lobby, degrade party voice quality, and slow matchmaking. Forwarding the console's documented service ports often resolves strict NAT classification and restores full multiplayer functionality. For anyone who has invested in quality gaming headphones or a well-tuned surround sound system, getting the network side optimized is an equally important part of the complete gaming setup.

Remote Access and NAS Devices

Network Attached Storage devices, home media servers, and remote desktop endpoints all require open, forwarded ports for external access. NAS devices from Synology and QNAP include guided setup that identifies which ports need forwarding, but the router configuration still happens manually. The NAS walks through what to forward — the router has to be configured directly.

Remote desktop access from a different location is another consistent use case. Port 3389 for Windows Remote Desktop, port 22 for SSH on Linux machines, and port 5900 for VNC all require active forwarding rules to be reachable externally. Pairing port forwarding with a dynamic DNS service keeps the connection working even when the public IP address rotates, which happens frequently on residential ISP accounts. For anyone building out a more capable home infrastructure, understanding how to properly configure a network switch alongside port forwarding creates a significantly more organized and capable home lab environment.

Home Security Cameras and Smart Home Hubs

IP cameras and smart home hubs default to cloud relay services in most consumer configurations. Those services introduce latency, depend on third-party uptime, often carry subscription fees, and route private video footage through external servers. Direct port forwarding eliminates the cloud middleman entirely and gives the operator full control over remote access.

Security cameras supporting RTSP (Real-Time Streaming Protocol) typically use port 554. Forwarding that port allows live feed access from any location without routing through the vendor's infrastructure. Our team views this approach as both technically cleaner and meaningfully more privacy-respecting than cloud-dependent alternatives. The tradeoff is that the operator assumes responsibility for securing that open port — strong authentication on the camera's firmware is non-negotiable in this configuration.

Port Forwarding vs. UPnP: A Direct Comparison

Universal Plug and Play (UPnP) is the alternative to manual port forwarding. Applications that support UPnP can request port mappings from the router automatically, without any administrator configuration. The convenience is genuine — gaming consoles handle NAT resolution without a single manual step. But the tradeoff is significant enough that our team considers UPnP inappropriate for any service that requires persistent, secure external access.

Security warning: UPnP has no authentication mechanism whatsoever — any application on any connected device can silently open a port on the router, including malware, making manual port forwarding the only defensible choice for sensitive or long-running services.

When UPnP Is Sufficient

For casual gaming on a console — Xbox, PlayStation, Nintendo Switch — UPnP handles NAT type resolution automatically and reliably enough for the purpose. The console requests a port mapping, the router grants it, and multiplayer connectivity improves without a single manual step. On networks where every connected device is a trusted household device, UPnP delivers an acceptable result with nearly zero administrative overhead.

Understanding the router's broader role in home networking performance adds useful context to this decision. Whether a network runs on a traditional single router or a distributed mesh system affects how NAT behaves and where port forwarding rules need to be configured. Our coverage of mesh Wi-Fi versus traditional router setups explores how topology choices affect latency, NAT behavior, and the complexity of port forwarding configuration — a worthwhile read before committing to either approach long-term.

When Manual Port Forwarding Wins

For anything that requires a persistent, predictable, and secure connection — a home server, NAS, IP camera system, or remote desktop endpoint — manual port forwarding is the definitive choice. UPnP mappings expire. They can be overridden by other devices on the network. They do not survive router reboots on all firmware versions. Manual rules, once saved, work every single time without intervention.

Network operators managing multiple services on the same infrastructure benefit enormously from the visibility that manual forwarding provides. Every open port is documented in the admin panel. Nothing is hidden or ambiguous. Security audits become straightforward, and the attack surface stays knowable. For networks running more than two or three forwarded services, our guide on setting up a mesh Wi-Fi system explains how to identify and configure the correct gateway device in a distributed network — a step that confuses many first-time mesh users when they attempt port forwarding.

Common Mistakes That Break Port Forwarding

Using Dynamic Instead of Static IPs

This is the most frequent failure mode our team encounters when troubleshooting port forwarding for others. The rule is syntactically correct, the port number matches the application's documentation, but the connection drops unpredictably — usually after a router reboot or after the target device reconnects to the network. The device's local IP changed. The forwarding rule now points at an empty address slot, and nothing works until someone manually updates the rule or finally sets up a DHCP reservation.

Setting up a DHCP reservation takes under three minutes on any modern consumer router. It eliminates this failure mode permanently and costs nothing in performance or complexity. Our team treats it as a prerequisite step — not an optional follow-up. Every port forwarding configuration should begin with a confirmed static local IP address on the target device before a single forwarding rule is created.

Selecting the Wrong Protocol

A TCP-only forwarding rule does nothing for a service that communicates over UDP, and vice versa. Game servers, VoIP applications, and video streaming protocols frequently use UDP. File transfers, remote desktop sessions, and web servers use TCP. When in doubt about which protocol a specific application requires — and the documentation doesn't make it immediately clear — selecting "Both" is the safe, comprehensive default. It opens the port for both transport protocols simultaneously, covers every possible case, and requires no additional rules.

The application's official documentation always specifies protocol requirements. Our team checks this before writing any rule and treats it as a non-negotiable step. A port forwarding rule using the wrong protocol behaves exactly like no rule at all from the application's perspective — the port appears closed, the connection fails, and the diagnostic process loops back to the beginning unnecessarily.

Opening More Ports Than Necessary

Each open port represents an additional entry point into the local network that is reachable from the public internet. Opening large port ranges "just in case" or leaving forwarding rules active for services that no longer run increases the attack surface without providing any benefit. Our team follows the principle of least privilege strictly: open only the specific port or range that the application's documentation requires, and remove the rule when the service is decommissioned.

On networks hosting multiple services — cameras, NAS devices, remote access tools — maintaining a clean, documented inventory of active forwarding rules is essential operational practice. Anyone combining port forwarding with a guest Wi-Fi network should confirm that guest-network clients are isolated on a separate VLAN with no visibility into internal devices exposed via port forwarding. This is precisely where the distinction between managed and unmanaged network switches becomes operationally relevant — managed switches support the VLAN segmentation required for proper isolation, while unmanaged switches do not offer that capability at all.

Frequently Asked Questions

Does port forwarding slow down internet speed?

Port forwarding itself introduces no measurable throughput reduction or latency increase. It only modifies how the router routes specific categories of incoming traffic. The total number of active forwarding rules on a consumer router has no practical effect on overall network performance.

Is port forwarding dangerous?

An open forwarded port is reachable from the public internet, which introduces genuine exposure. Responsible management requires keeping software on the exposed device fully updated, enforcing strong authentication credentials, using non-standard port numbers when possible to reduce automated scan exposure, and closing rules for services that are no longer actively running. Our team never treats any open port as zero-risk, regardless of how obscure the port number appears to be.

What happens when two devices on the network need the same port?

A single router port can only forward to one internal device. If two devices require the same application port — two Minecraft servers, for example — one must be configured to listen on a different port number. The router forwards the alternate external port to that device's internal IP, and the application on that device is configured to listen on the alternate port. Most server applications support custom port configuration natively in their settings.

Does port forwarding work the same way with a mesh Wi-Fi system?

Port forwarding rules are always configured on the primary gateway router, not on satellite mesh nodes. As long as the mesh system uses a single gateway device for WAN traffic — which virtually all consumer mesh systems do — port forwarding configuration is identical to a traditional single-router setup. The key is identifying which device in the mesh handles the WAN connection and logging into its admin panel specifically. Our detailed guide on setting up a mesh Wi-Fi system walks through gateway identification in systems where it isn't immediately obvious.

Port forwarding is the difference between a network that almost works and one that actually delivers — reliably, from anywhere, on any device that needs it.
