How to Program a Baofeng Radio: Step-by-Step Setup Guide

I still remember staring at my first Baofeng UV-5R, completely lost. I'd bought it for a camping trip, powered it on, and got nothing but static. The tiny keypad felt like a puzzle box with no instructions. Sound familiar? You're not alone — and it's way easier than it looks once you know the steps.

Learning how to program a Baofeng radio is one of the most practical skills you can pick up as a handheld radio owner. Whether you're setting up frequencies for ham radio use, GMRS, or emergency monitoring, the process boils down to two main methods: punching in channels by hand on the keypad, or using free CHIRP software on your computer. This guide walks you through both approaches from start to finish, so you can get your radio talking in minutes instead of hours. If you're still deciding which Baofeng model to grab, check out our Baofeng UV-5R vs UV-82 comparison before diving in.

What You Need Before You Program a Baofeng Radio

Before you touch a single button, gather your gear and understand the basics. A little prep work saves you a lot of frustration down the road.

Essential Gear and Downloads

Here's your checklist:

• A Baofeng radio — UV-5R, UV-82, BF-F8HP, or any model in the family
• Fully charged battery — programming on a dying battery can corrupt channel memory
• USB programming cable — the Baofeng-specific Kenwood 2-pin cable (around $8–$12 online)
• CHIRP software — free, open-source, works on Windows, Mac, and Linux
• Correct USB driver — most cables use either the Prolific PL2303 or QinHeng CH340 chipset
• A frequency list — your local repeater frequencies, GMRS channels, or weather frequencies

Pro Tip: Buy your programming cable from a reputable seller. Cheap knockoff cables with counterfeit Prolific chips cause 90% of CHIRP connection headaches.

Understanding Frequencies and Channels

Your Baofeng operates in two frequency bands:

• VHF (136–174 MHz) — better range in open areas, used by most 2-meter ham repeaters
• UHF (400–520 MHz) — better penetration through buildings, used by GMRS and many commercial services

Each "channel" on your radio is just a saved frequency with optional settings like CTCSS tones (privacy codes that filter out other users on the same frequency), offset direction, and transmit power. You can store up to 128 channels on most Baofeng models.

Important: In the United States, you need an FCC amateur radio license to transmit on ham frequencies. GMRS requires a separate FCC license. You can listen to any frequency without a license, but transmitting without one carries serious fines.

How to Program a Baofeng Radio by Hand (Keypad Method)

The keypad method requires no computer, no cable, and no software. It's the fastest way to program a Baofeng radio when you only need a handful of channels.

Entering VFO Mode and Setting Frequencies

Follow these steps exactly:

1. Switch to VFO mode — press the VFO/MR button until you see a frequency on screen (not a channel number)
2. Select the band — press A/B to toggle between the upper display (Band A) and lower display (Band B). Use Band A for VHF, Band B for UHF
3. Enter the receive frequency — type the frequency directly on the keypad. For 146.520 MHz, press 1 4 6 5 2 0
4. Set the CTCSS/DCS tone (if needed):
   • Press MENU
   • Enter 1 3 (menu item 13 = R-CTCS, the receive tone)
   • Press MENU again, scroll with the arrow keys to your tone, press MENU to confirm, then EXIT
5. Set the transmit tone — repeat the process with menu item 1 2 (T-CTCS)
6. Set the offset (for repeaters):
   • Menu item 2 5 — offset direction (OFF, +, or −)
   • Menu item 2 6 — offset amount (typically 0.600 MHz for VHF or 5.000 MHz for UHF)

Saving Frequencies to Memory Channels

Once your frequency and tones are set:

1. Press MENU
2. Enter 2 7 (MEM-CH, the memory channel save function)
3. Press MENU — you'll see a channel number blinking
4. Use the arrow keys to pick your desired channel number (001–127)
5. Press MENU to save
6. Press EXIT to finish

Repeat for each frequency. Yes, it gets tedious after five or six channels — that's where CHIRP comes in.

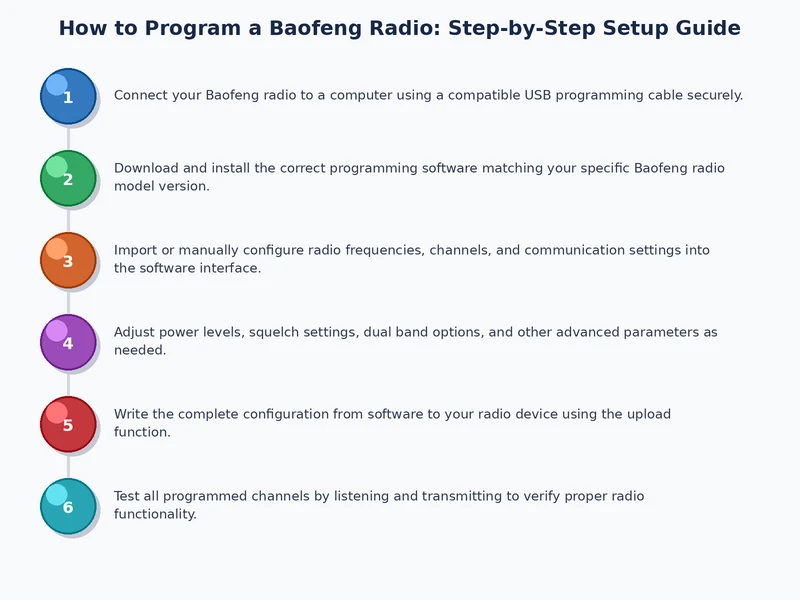

Programming Your Baofeng with CHIRP Software

CHIRP is the gold standard for Baofeng programming. It gives you a spreadsheet-style interface where you can manage all 128 channels at once, copy settings between radios, and import repeater databases automatically.

Installing CHIRP and Connecting Your Radio

1. Download CHIRP from the official CHIRP website (use the "CHIRP-next" version for the latest driver support)
2. Install the USB driver for your programming cable:
   • Plug in the cable without the radio attached
   • Check Device Manager (Windows) or System Information (Mac) for the COM port
   • If the device shows an error, you likely need the CH340 or PL2303 driver installed manually
3. Connect the cable to your radio's speaker/mic port (the 2-pin Kenwood connector on the side)
4. Turn on the radio and set it to the lowest volume
5. In CHIRP, go to Radio → Download From Radio:
   • Select your COM port
   • Vendor: Baofeng
   • Model: your specific model (UV-5R, UV-82, etc.)
   • Click OK and wait for the download to complete

Warning: Never unplug the cable or turn off the radio during a CHIRP upload. Interrupting the process can leave your radio's memory in a corrupted state that requires a full reset.

Adding and Uploading Channels

Once CHIRP reads your radio, you'll see a spreadsheet with columns for each channel:

• Loc — channel number (0–127)
• Name — up to 7 characters displayed on screen (e.g., "2M CALL" or "GMRS1")
• Frequency — receive frequency in MHz
• Offset — transmit offset for repeaters
• Tone — tone mode (None, Tone, TSQL, DTCS)
• rToneFreq / cToneFreq — the specific CTCSS tone values
• Mode — FM or NFM (narrowband)
• Power — High (4–8W) or Low (1W)

Fill in each row like a spreadsheet. You can also bulk-import repeaters:

1. Go to Radio → Import From Data Source → RepeaterBook
2. Filter by your state, county, or band
3. Select the repeaters you want
4. Click OK to add them to your channel list

When you're satisfied with your channel list, upload to the radio via Radio → Upload To Radio. The process takes about 30 seconds.

Keypad vs CHIRP: Which Programming Method Is Right for You?

Both methods get the job done, but they serve different situations. Here's how to decide which approach to use when you program a Baofeng radio.

When the Keypad Method Wins

• You're in the field — no computer available, and you need to add a frequency right now
• Only 1–5 channels — quick and painless for a small number of frequencies
• Emergency situation — you need to reach a repeater immediately and can't wait for software setup
• Learning the radio — manually programming teaches you what every setting actually does

When CHIRP Is the Better Choice

• Programming 10+ channels — spreadsheet entry is dramatically faster than keypad menu diving
• Multiple radios — program one, clone to all others in seconds
• Channel names — CHIRP lets you add alpha-numeric names (you can't do this from the keypad on most Baofeng models)
• Repeater databases — one-click import from RepeaterBook saves hours of manual entry
• Backup and restore — save your entire channel list as a file you can reload anytime

For most people, the answer is both. Use CHIRP for your initial bulk setup at home, and keep the keypad method in your back pocket for field changes. If you use your Baofeng alongside other gear on road trips, you might also want to read about why a surge protector matters for RV electronics — radios and chargers benefit from clean power too.

Fixing Common Baofeng Programming Problems

Even experienced radio users hit snags. Here are the most common issues and exactly how to fix them.

No Audio or Static After Programming

• Wrong CTCSS tone — this is the #1 cause. Double-check your tone matches the repeater's published tone. Many repeaters use different transmit and receive tones
• Offset not set — if you're trying to hit a repeater, you need the correct offset direction (+/−) and amount. Without it, you're transmitting on the receive frequency and the repeater ignores you
• Squelch too high — lower your squelch level (menu item 0) to 2 or 3. A squelch set to 9 blocks weak but perfectly usable signals
• Wrong band selected — make sure Band A is active for VHF channels and Band B for UHF. Press A/B to switch
• Frequency entered incorrectly — a single wrong digit means a completely different frequency. Verify against your source

CHIRP Connection and Upload Errors

• "Failed to communicate with the radio":
  • Confirm the correct COM port in Device Manager
  • Make sure the radio is on and set to lowest volume
  • Try a different USB port (avoid USB hubs)
  • Reinstall the cable driver — counterfeit Prolific chips need the older 3.3.2 driver version
• "An error has occurred" during upload:
  • Close any other programs using the COM port
  • Re-download from the radio first, make changes, then upload
  • Try selecting a slightly different radio model in CHIRP (e.g., UV-5R vs UV-5RA)
• Radio shows garbled channel names:
  • Keep names to 6 characters or fewer
  • Use only uppercase letters and numbers
  • Re-upload the channel list
• Channels disappear after programming:
  • Your battery likely died during upload — always start with a full charge
  • Perform a full reset (menu item 40 → VFO or MR) and reprogram

If you're running into persistent cable issues, the problem is almost always the cable itself. A genuine FTDI or CH340-based cable eliminates most CHIRP connection problems permanently.

Frequently Asked Questions

Key Takeaways

• You can program a Baofeng radio two ways: manually via the keypad for quick field changes, or through free CHIRP software for bulk channel setup, naming, and backup.
• The most common programming mistakes — no audio, can't reach repeaters — almost always come down to wrong CTCSS tones or missing offset settings, both of which take seconds to fix.
• Invest in a quality USB programming cable with a genuine CH340 or FTDI chip to avoid the driver problems that plague cheap knockoffs.
• Always verify you have the proper FCC license before transmitting — programming and listening are unrestricted, but keying up without a license carries serious penalties.
