What Does a Surge Protector for RVs Do? Do You Need One?

A surge protector for your RV monitors incoming shore power and instantly cuts the connection when voltage spikes, sags, or wiring faults threaten your onboard electronics. If you have ever wondered what does surge protector for RV do in practical terms, the answer is straightforward: it acts as a sacrificial gatekeeper between unpredictable campground pedestals and the sensitive appliances inside your rig. Your air conditioner compressor, refrigerator control board, converter, and entertainment system all depend on clean, stable electricity that many older parks simply cannot guarantee. Investing in proper RV gear for electrical protection is one of the most cost-effective decisions you can make before your next trip.

How RV Surge Protection Works Behind the Scenes

Understanding what does surge protector for RV do requires a look at the internal components that make the device function. At its core, every surge protector relies on metal oxide varistors (MOVs) that absorb excess voltage and divert it safely to ground before it reaches your RV's electrical panel. These semiconductor components have a variable resistance that drops dramatically when voltage exceeds a set threshold, creating a low-impedance path that shunts the spike away from your equipment.

Voltage Clamping and MOV Technology

The clamping voltage on most RV-rated units sits between 130V and 140V for 120V service, which means the protector activates the moment incoming power crosses that ceiling. Multiple MOVs are wired in parallel to increase the total energy absorption capacity, measured in joules. A higher joule rating indicates the unit can handle more cumulative surge energy before the MOVs degrade and need replacement.

Response Time and Joule Ratings Explained

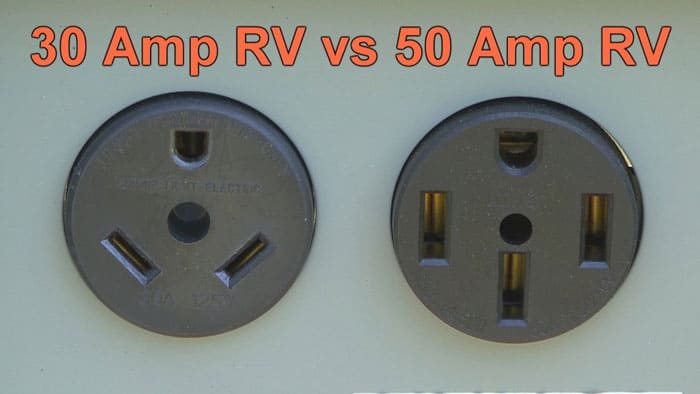

Response time is measured in nanoseconds, and quality RV surge protectors react within 1–5 nanoseconds of detecting an anomaly. According to the National Electrical Manufacturers Association (NEMA), surge protective devices are classified by their intended installation point and energy handling capacity. For RV applications, you want a minimum of 2,000 joules for 30-amp service and 4,000 joules for 50-amp rigs. Anything below those thresholds leaves your coach vulnerable to multi-event degradation over a single camping season.

Surge Protector vs. EMS: Picking the Right Shield

Many RV owners conflate basic surge protectors with full electronic management systems, but they serve overlapping yet distinct functions. A basic surge protector handles voltage spikes and open-ground or open-neutral detection, then disconnects power. An EMS adds continuous voltage monitoring, automatic disconnect and reconnect on a time delay, and protection against sustained low or high voltage conditions that would otherwise damage compressor motors over time. For a deeper comparison, check out our guide on RV EMS vs. surge protector differences.

Feature-by-Feature Breakdown

When a Surge Protector Is Essential and When It Isn't

Not every camping scenario carries the same electrical risk, so knowing when protection matters most helps you prioritize your budget and packing list accordingly.

High-Risk Scenarios

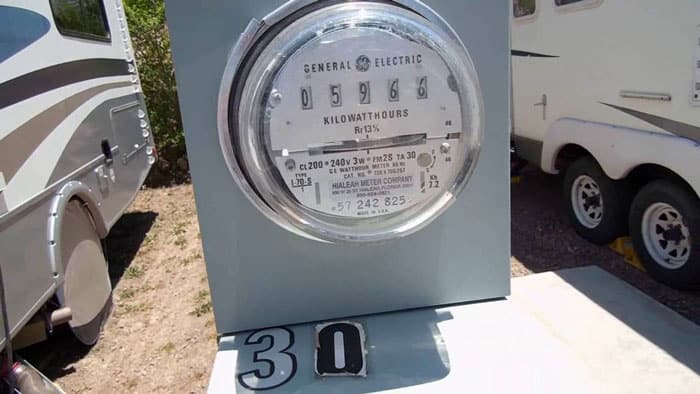

• Older campgrounds — Parks built before the 1990s frequently have corroded pedestals, loose neutral bonds, and undersized wiring that cannot handle peak-season loads.
• Storm-prone regions — Lightning strikes on power lines create transient voltage spikes that travel through campground infrastructure within microseconds.
• Full-hookup boondocking rallies — Temporary power distribution at large events is notorious for voltage drops when hundreds of rigs draw simultaneously.
• Extended stays — The longer your RV sits connected, the higher the cumulative probability of encountering a power anomaly.

Situations Where You Can Skip It

If you are dry camping exclusively on battery and solar with no shore power connection, a surge protector serves no purpose since there is no incoming AC to monitor. Similarly, if you only connect at brand-new facilities with verified electrical inspections and you carry comprehensive RV insurance, the financial risk equation shifts, though most experienced RVers still consider the protection non-negotiable.

Pro tip: Even premium RV parks can develop pedestal faults between inspection cycles — a $100 surge protector is always cheaper than a $1,500 AC control board replacement.

How to Install Your RV Surge Protector Correctly

Proper installation determines whether your surge protector actually functions as intended, and the process differs depending on the form factor you choose.

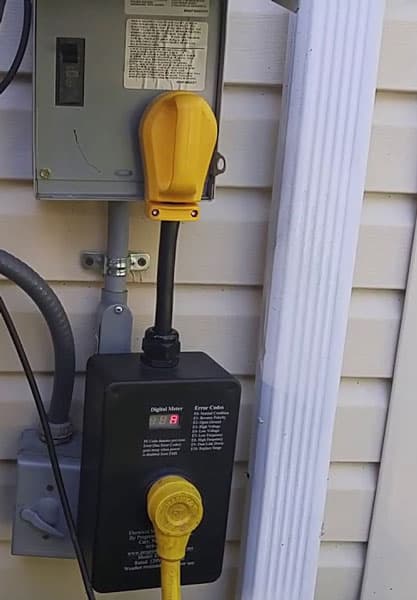

Portable Plug-In Setup

1. Inspect the campground pedestal for visible damage, scorching, or loose receptacles before touching anything.
2. Plug the surge protector directly into the pedestal outlet — never use an extension cord between the pedestal and the protector.
3. Wait for the diagnostic LEDs to cycle through their startup sequence, which typically takes 60–90 seconds on EMS units.
4. Confirm all indicator lights show normal status: proper ground, correct polarity, and acceptable voltage range.
5. Connect your RV power cord to the surge protector's output receptacle and secure it with the locking ring if equipped.
6. Use a cable lock or protective cover to prevent theft, since portable units are a common target at busy parks.

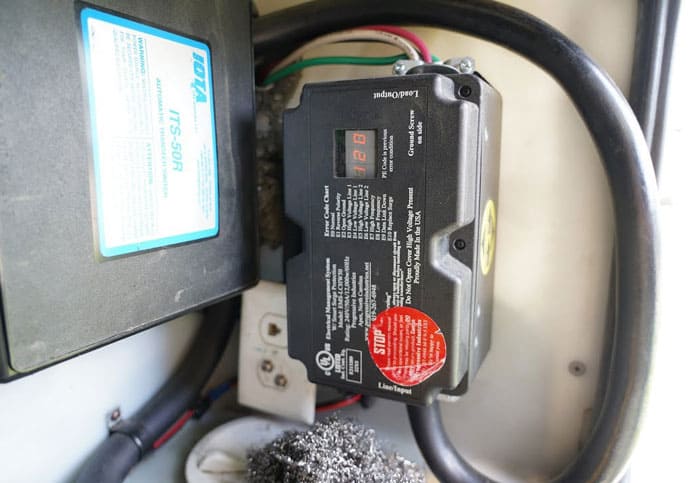

Hardwired Installation

Hardwired units mount inside your RV's electrical compartment between the shore power inlet and the breaker panel, which eliminates theft risk entirely. You need to disconnect all power sources, remove the compartment cover, wire the unit inline following the manufacturer's diagram, and ensure all connections meet the appropriate amperage rating. If you are not comfortable working inside a live electrical panel, hire a certified RV technician — improper wiring voids most manufacturer warranties and can create fire hazards. If your RV is experiencing power issues even when plugged in, a hardwired EMS with diagnostic display simplifies troubleshooting significantly.

Real Campground Power Failures That Fry RV Electronics

Campground electrical failures are not hypothetical edge cases — they happen with documented regularity across every region of the country, and the repair bills add up fast.

Documented Incidents and Costs

An open neutral condition at a pedestal can send 240V through a 120V circuit, destroying every appliance on that leg within seconds. RV forum archives are filled with reports of entire entertainment systems, microwave ovens, and converter chargers fried during a single overnight storm. One commonly cited scenario involves a utility company performing grid maintenance without notifying the campground, causing voltage to swing between 90V and 150V over several hours. At 90V, your air conditioner compressor draws excessive amperage trying to start, overheats, and burns out its windings. At 150V, your microwave transformer saturates and fails.

Your surge protector would have disconnected your RV within nanoseconds of detecting the voltage anomaly, preventing thousands of dollars in damage for the cost of a single unit. Weighing the pros and cons of RV surge protectors against these real-world repair costs makes the value proposition clear.

Low-Cost Upgrades That Boost Your Electrical Safety

Your surge protector is the foundation, but several inexpensive additions create a layered defense that covers scenarios beyond simple voltage spikes.

Complementary Gear Worth Adding

• Multimeter or plug-in voltage monitor — A $15 outlet tester gives you an independent voltage reading to cross-check against your surge protector's display.
• Dedicated RV inverter — Pairing your protector with a quality inverter ensures clean power delivery to sensitive electronics even when shore power fluctuates within the acceptable range. Learn more in our guide on what an RV inverter does and why you need one.
• Heavy-gauge extension cord (if needed) — Use a 10-gauge cord rated for your amperage if the pedestal is far from your rig; undersized cords cause voltage drop that mimics a faulty power source.
• Grounding rod kit — For boondocking setups with generator power, a portable grounding rod ensures your surge protector's ground-fault detection circuit has a proper reference.

Diagnosing Common Surge Protector Problems on the Road

When your surge protector refuses to pass power through, the fault usually lies with the campground pedestal rather than the protector itself, but systematic diagnosis prevents unnecessary returns and replacements.

Reading Error Codes and LED Indicators

• Open ground LED — The pedestal's ground wire is disconnected or corroded. Report it to campground management and request a different site; do not bypass the protector.
• Open neutral LED — The most dangerous fault. Your rig could receive 240V on a 120V circuit. Disconnect immediately and move to another pedestal.
• Reverse polarity LED — Hot and neutral are swapped at the pedestal, which creates shock hazards on metal chassis components. Do not connect your RV.
• Low/high voltage LED (EMS only) — Voltage is outside the safe operating window. The unit will automatically reconnect after a time delay once voltage stabilizes.

When to Replace Your Unit

MOVs degrade incrementally with each surge event, and most manufacturers recommend replacement after a major surge or every three to five years of regular use. If your protector's indicator LEDs no longer illuminate during the startup diagnostic cycle, the internal components have likely reached end of life. Some premium EMS units include a joule counter or MOV health indicator that takes the guesswork out of replacement timing, which justifies the higher upfront cost for frequent travelers who camp more than 60 nights per year.

Frequently Asked Questions

Final Thoughts

You now know exactly what a surge protector does for your RV and why experienced full-timers and weekend warriors alike consider it non-negotiable gear. Pick up a unit rated for your amperage service, install it before your next shore power connection, and treat it as the first line of defense for every appliance and electronic system in your coach. Your future self — and your wallet — will thank you the first time a campground pedestal delivers something other than clean power.
