How to Set Up OpenWRT on Your Router: Step-by-Step Flashing Guide

More than 10 million routers worldwide now run OpenWRT, the open-source firmware that replaces factory software with a fully customizable Linux-based system. For anyone wondering how to install OpenWRT on a router, the process takes less than an hour when approached with the right preparation. Factory firmware locks users out of advanced features — bandwidth controls, VPN servers, and granular firewall rules — that OpenWRT hands over completely. This guide covers every step, from selecting compatible hardware to configuring the admin panel after the flash. Readers interested in building out a complete home network will find a full set of companion guides in the PalmGear networking section.

OpenWRT is a Linux-based open-source firmware project that has been under active development since 2004. What started as a mod for the Linksys WRT54G has grown into a platform supporting hundreds of router models, complete with a full package manager for installing additional software long after the initial setup. Factory firmware is a closed system — what the manufacturer ships is what users get, with updates stopping the moment the product is discontinued. OpenWRT keeps receiving security patches and new features regardless of the hardware manufacturer's decisions.

Home offices, RV setups, and small businesses all benefit from the flexibility OpenWRT provides. Users who have already upgraded their wired backhaul with a solution like those compared in the MoCA Adapter vs Powerline Adapter guide will find that OpenWRT complements those setups nicely, adding the traffic management layer that makes the most of fast wired connections.

What OpenWRT Actually Unlocks for Home Networks

Bandwidth Management and QoS

Quality of Service, shortened to QoS, is the feature most households miss most when stuck on factory firmware. OpenWRT's SQM (Smart Queue Management) package allows the router to prioritize time-sensitive traffic — video calls, gaming — over large background downloads, automatically, without touching individual devices. A household where one person is on a video conference while another streams 4K content will feel the difference within minutes of enabling it. The router handles the prioritization invisibly, and no device-level changes are required.

Bandwidth caps on specific devices are equally practical. OpenWRT lets administrators set hard speed limits on a guest network, a child's tablet, or a smart TV without those restrictions touching any other device. This level of granular control is standard on enterprise equipment. On most consumer routers, it simply does not exist without a firmware replacement.

VPN, Firewall, and Security Features

OpenWRT turns a consumer router into a full VPN (Virtual Private Network) endpoint. With the WireGuard package installed, the router acts as a VPN server, letting users connect securely from anywhere in the world as if they were sitting at home. For remote workers or frequent travelers, this replaces the need for a paid commercial VPN subscription entirely.

The firewall in OpenWRT is built on iptables and nftables — the same tools used in professional Linux server environments. Administrators can block traffic by country, whitelist specific devices, configure precise port forwarding rules, and log all traffic for review. Compared to the basic on/off firewall toggle found in most consumer routers, the difference is considerable.

Everything Needed Before Starting the Flash

Hardware Checklist

The most important step before learning how to install OpenWRT on a router is verifying that the specific model is supported. The OpenWRT Table of Hardware lists every compatible device with its support status, recommended flash method, and known limitations. Any router listed with less than 64 MB of RAM will struggle to run anything beyond the base system. Targeting a device with at least 128 MB RAM and 16 MB flash storage leaves room to install packages comfortably.

An Ethernet cable is non-negotiable. Attempting the flash over Wi-Fi is one of the leading causes of bricked (permanently damaged) routers — a dropped wireless connection mid-write corrupts the firmware. A laptop or desktop with a wired Ethernet port, or a USB-to-Ethernet adapter, is the minimum requirement on the computer side. Having a reliable label maker nearby — like those covered in the best label maker for electricians guide — is helpful for marking cables and ports during larger network builds where keeping track of connections matters.

Software and Files to Download First

Before touching the router, two files need to come from the official OpenWRT website: the factory image (used for the initial flash from stock firmware) and the sysupgrade image (used for updating an existing OpenWRT install later). The file names will include the router's exact model number — cross-checking this against the label on the bottom of the device is not optional. The wrong firmware on the wrong router produces a brick, not a working network device.

Keeping a note of the router's default IP address, admin username, and admin password before starting saves time. Most routers use 192.168.1.1 as the admin interface address, but manufacturers vary. This information appears in the manual or on the device label. Having it at hand before beginning the process avoids an unnecessary search mid-flash.

Beginner Routers vs. Advanced Hardware: Picking the Right Device

Routers That Make Learning Easy

For anyone flashing OpenWRT for the first time, a handful of models stand out for being forgiving and well-documented. The TP-Link TL-WR1043N, the GL.iNet GL-MT300N-V2, and the Linksys WRT1900ACS are among the most recommended starting points in the OpenWRT community. Each has large support threads, clear flashing instructions, and enough memory for comfortable operation. GL.iNet routers deserve a special mention because they ship with a customized OpenWRT build already installed, skipping the initial flash entirely and sending users straight to configuration.

Hardware for Power Users

Users who want to run multiple VPNs, host local servers, or build a mesh network will need more processing power. The Netgear R7800, the Banana Pi R3, and the Dynalink DL-WRX36 are popular choices for demanding setups. These devices carry dual-core or quad-core ARM processors and enough RAM to handle heavy package loads without slowing the network down under real-world conditions.

Picking the right router at the start avoids frustration later. Underpowered hardware limits which packages can be installed and how many simultaneous connections the router handles cleanly. The table above represents a practical starting point, not an exhaustive list — the OpenWRT Table of Hardware is the definitive resource for confirming any specific model.

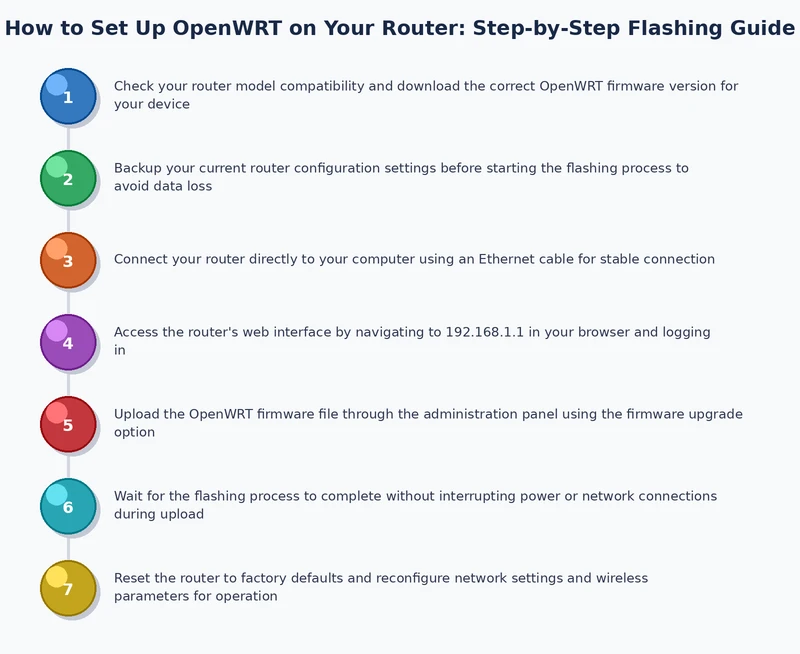

How to Install OpenWRT on Your Router, Step by Step

Accessing the Router's Stock Interface

The first step is connecting the computer directly to the router via Ethernet and opening a browser. Navigating to the router's admin IP address — usually 192.168.1.1 or 192.168.0.1 — brings up the stock firmware interface. After logging in with the default credentials, note down any custom settings: ISP (Internet Service Provider) login credentials, static IP assignments, and DNS (Domain Name System) entries. The flash will wipe every setting on the device.

Some routers require disabling firmware signature verification before accepting a third-party image. This option, when present, typically lives under "Advanced" or "Administration" in the stock firmware menu. Without disabling it first, the router rejects the OpenWRT file outright. The OpenWRT Table of Hardware page for the specific model will flag this requirement when it applies, so checking that page before starting is always worthwhile.

Uploading and Flashing the Firmware

Inside the stock firmware interface, navigate to the firmware update section — commonly labeled "Firmware Upgrade," "Software Update," or "Router Update" depending on the manufacturer. Upload the factory image file downloaded earlier. The sysupgrade image is not for this step; it is reserved for updating an already-running OpenWRT install. Using the wrong file here does not complete a flash — it either fails outright or, in worst cases, leaves the router in a recovery state.

After confirming the upload, the router begins writing the new firmware. This process typically takes between two and five minutes. The status lights on the device will flash rapidly during the write and then stabilize once the process finishes. Unplugging the router during this window is the number one avoidable cause of a bricked device. Once the lights settle, the router reboots into OpenWRT. The admin interface appears at 192.168.1.1, and the default installation has no root password set — setting one immediately is the very first task.

How Real Users Put OpenWRT to Work

Home Networks and Streaming

A persistent complaint in multi-device households is buffering during peak hours — when several people stream simultaneously and one large download pushes everything else aside. OpenWRT's SQM QoS package addresses this directly. After a short configuration session, most users report that buffering drops to near zero even during simultaneous high-definition streams. The router handles prioritization without any changes needed on individual devices.

Guest network segmentation is another high-demand use case. Factory firmware often offers a basic guest Wi-Fi option, but OpenWRT's VLAN (Virtual Local Area Network) implementation creates true network isolation — guest devices cannot see or communicate with printers, NAS drives (Network Attached Storage), smart home hubs, or any other device on the main network. For households with smart TVs, gaming consoles, and IoT (Internet of Things) devices all sharing the same network, this kind of segmentation is a meaningful security improvement. Users building a complete home entertainment system — including audio equipment like that covered in the FM antenna guide for Bose Wave radios — benefit from keeping media devices on a dedicated VLAN separate from the primary network.

RV and Mobile Setups

OpenWRT performs exceptionally well in mobile deployments. RV travelers frequently use compact OpenWRT routers to connect to campground Wi-Fi, cellular hotspots, and Starlink terminals, with the router switching between sources automatically based on signal quality. Paired with a reliable power source — as covered in the best generator for RV guide — a properly configured OpenWRT router keeps a mobile setup connected regardless of location. The failover configuration handles source switching without any manual intervention, which matters most when working remotely from the road.

Smart Moves Most People Miss After Installation

First Changes to Make in LuCI

LuCI is the web-based admin interface included with a default OpenWRT installation. The first stop after flashing should be System → Administration, where a strong root password is set. Skipping this step leaves the router accessible to anyone on the local network. After setting the password, the next priority is refreshing the package list — navigating to System → Software in LuCI or running opkg update in the terminal — which pulls the latest list of available packages from the official repository.

Changing the router's default LAN IP address from 192.168.1.1 to something less common, like 10.0.0.1, reduces exposure to cross-site scripting (CSS) attacks — attempts by malicious websites to send commands to the router's admin interface. This change takes under a minute and closes a well-known vulnerability that most factory firmware users are never warned about.

Packages Worth Installing Right Away

Pro tip: Install luci-app-sqm immediately after flashing — it is the single highest-impact package for household networks, and most users notice a measurable difference in video call and streaming quality within minutes of enabling it.

Beyond SQM, a short list of packages consistently appears on recommended installation lists for new OpenWRT setups. luci-app-statistics adds traffic graphs to the LuCI interface, making it easy to spot which devices are consuming disproportionate bandwidth. adblock turns the router into a network-wide ad blocker, filtering advertisements before they reach any device on the network — no browser extension required. wireguard-tools combined with luci-app-wireguard adds a modern VPN server that outperforms older protocols like OpenVPN in both speed and mobile battery efficiency.

Planning Your OpenWRT Network for the Long Haul

Backup, Updates, and Recovery

One of the most underused features in OpenWRT is the configuration backup tool. Under System → Backup / Flash Firmware in LuCI, a compressed archive of every configuration file on the router is available for download. That backup file makes restoring a full setup after a hardware failure or a botched update a matter of minutes. Creating a backup before every significant configuration change is a habit that pays for itself the first time something goes wrong.

OpenWRT releases stable updates on a predictable schedule, and running an outdated version means missing security patches. The sysupgrade process — uploading the sysupgrade image through LuCI's firmware update panel — handles version upgrades cleanly and preserves most configuration settings when the "keep settings" checkbox is enabled. For routers with limited flash storage, a clean install followed by restoring the configuration backup is the more reliable approach.

Scaling Up as Needs Grow

A single OpenWRT router handles most household needs without issue, but growing setups eventually call for expansion. OpenWRT supports mesh networking through protocols like 802.11s and Batman-adv (Better Approach To Mobile Ad-hoc Networking), allowing multiple routers to work together as a unified network. This is the same underlying technology commercial mesh systems use — built from scratch, at a fraction of the commercial cost.

For larger homes where wired backhaul makes a measurable difference, pairing an OpenWRT router with a structured cabling plan and the adapters reviewed in the best MoCA adapters guide creates a hybrid setup that delivers both speed and flexibility. The router handles intelligent traffic management, the MoCA adapters move data at near-gigabit speeds through existing coaxial cables, and every device on the network benefits from both layers working together.

Frequently Asked Questions

Final Thoughts

OpenWRT is one of those rare upgrades that costs nothing but an afternoon and delivers years of improved performance, security, and control over any home or mobile network. Readers ready to get started should visit the official OpenWRT Table of Hardware, confirm their router model is listed as fully supported, download the correct factory image, and work through each step in this guide — the results speak for themselves within the first hour of use.
