Printable HTV vs Regular HTV: Key Differences Explained

Printable HTV and regular HTV are fundamentally different materials with different production workflows. Printable HTV accepts inkjet ink before pressing; regular HTV does not. That single distinction drives every downstream decision a crafter makes.

When comparing printable HTV vs regular HTV, the choice comes down to design complexity and available equipment. Regular HTV suits solid-color, cut-based designs produced with a vinyl cutter. Printable HTV handles full-color photographs, gradients, and complex artwork rendered through an inkjet printer. Both types bond to fabric using heat and pressure. Both require a heat press or iron for activation. The workflows diverge significantly before that final step.

For a broader view of transfer media options, the heat transfer paper vs vinyl guide covers the full material landscape.

Printable HTV vs Regular HTV: Core Material Differences

The Structure of Regular HTV

Regular HTV consists of a colored vinyl layer bonded to a heat-activated adhesive. A carrier sheet protects the adhesive until application time. The vinyl is cut using a plotter cutter. Excess material is removed by hand through a process called weeding. The remaining design is then pressed onto fabric using heat and pressure.

Regular HTV is available in a wide range of finishes. Options include solid colors, metallics, glitter, holographic, and specialty textures such as flock. Multi-color designs require cutting and precisely layering separate vinyl pieces. Checking the HTV size chart before cutting helps avoid wasted material and misaligned transfers.

The Structure of Printable HTV

Printable HTV features a white, inkjet-receptive coating applied to the vinyl surface. That coated layer accepts standard inkjet or pigment-based printer ink. After printing, the sheet is loaded into a vinyl cutter, which cuts around the printed design rather than through it. Excess material is weeded away, and the transfer is applied with a heat press.

This workflow enables photographic images, gradients, and multi-color artwork without cutting or layering separate color pieces. The entire design is rendered in a single print pass.

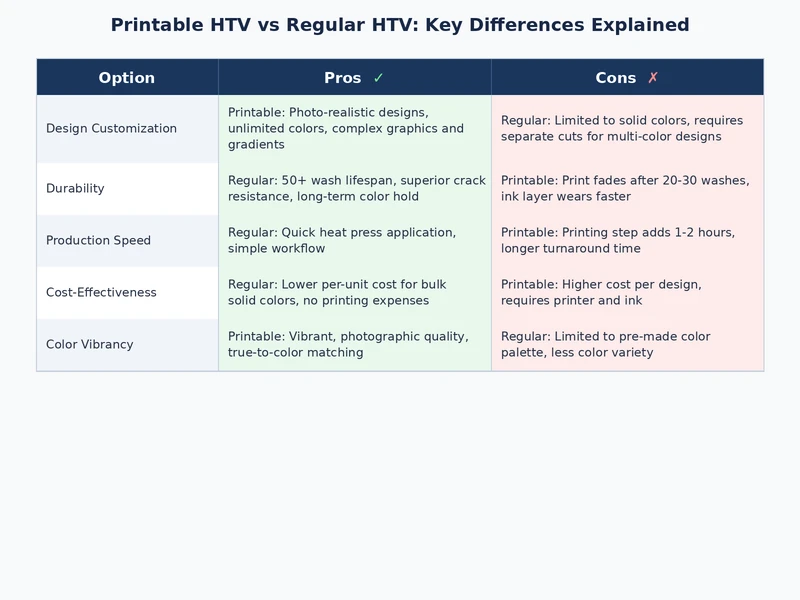

Side-by-Side Technical Comparison

The primary distinction is the production path. Regular HTV skips printing entirely — the color is built into the vinyl itself. Printable HTV skips solid-color vinyl in favor of a printable white coating. Both materials converge at the same final step: heat press activation onto fabric. The table below summarizes the technical differences.

Strengths and Limitations of Each Material

Regular HTV Performance Profile

Regular HTV delivers vibrant, durable color with minimal equipment investment. A vinyl cutter and a heat press are sufficient for a full production workflow. The material bonds reliably to cotton, polyester, and blended fabrics when applied at the correct temperature and pressure.

• Solid-color designs produce quickly with minimal setup
• Small batches of identical items are efficient to cut and weed
• Specialty finishes such as glitter and metallic are unavailable in printable form
• Excellent wash durability when manufacturer guidelines are followed

Limitations emerge with complex designs. Multi-color artwork requires precise alignment of separate layers. Photographic reproduction is not achievable. Gradients and color blends require significant workarounds. Large-format designs with many colors become time-consuming to produce.

Printable HTV Performance Profile

Printable HTV removes the color restriction entirely. Full-color photographs transfer accurately. Logos with fine gradients reproduce cleanly. Any design that can be printed on paper can, in principle, be transferred to fabric.

• Unlimited color reproduction in a single workflow pass
• Photographic and gradient designs transfer without layering
• Ink selection directly affects long-term wash durability
• Higher material cost per unit compared to solid-color vinyl
• Both a printer and a vinyl cutter are required

The workflow is more complex. Ink compatibility matters. Pigment-based inks typically outperform dye-based inks for washability and UV resistance. Not all printable HTV sheets are compatible with all printers, requiring careful manufacturer consultation before purchase.

Essential Equipment for Both HTV Types

Shared Requirements

Both HTV types share core equipment needs. A heat press delivers consistent temperature and pressure across the full transfer area. A household iron is a lower-cost alternative, but pressure consistency is difficult to maintain. For accurate settings across different fabric types, the heat press pressure guide outlines recommended parameters in detail.

A Teflon sheet or silicone pad protects the vinyl surface during pressing. A hard cutting mat is necessary for all cutting operations. Transfer tape assists with positioning for larger designs.

Equipment Unique to Regular HTV

Regular HTV requires a vinyl cutter, also called a plotter. The machine scores the vinyl layer without cutting the carrier sheet beneath it. Entry-level machines such as the Cricut Explore Air or Silhouette Cameo handle most consumer and small-business applications. Professional-grade cutters offer wider format capability and higher cutting force for thick specialty vinyls.

Weeding tools are also essential. A fine-tip weeding hook, a pair of tweezers, and a light box or bright lamp improve accuracy when removing negative space from intricate designs.

Equipment Unique to Printable HTV

Printable HTV requires an inkjet printer with sufficient resolution for the intended design. A minimum of 1200 dpi is recommended for photographic prints. Pigment-based ink cartridges extend color life through repeated wash cycles compared to dye-based alternatives.

The printer must accommodate the HTV sheet dimensions. Letter-size (8.5″ × 11″) sheets fit most home and office printers. Larger production formats require wide-format inkjet equipment, which represents a significant equipment cost increase.

Real-World Applications Across Project Types

Where Regular HTV Excels

Regular HTV is the standard choice for garment decoration in volume applications. T-shirts, hoodies, and sports team uniforms benefit from its durability and broad finish variety. For fabric-specific application guidance, the how to heat press hoodies and sweatshirts tutorial covers the considerations unique to thicker garments.

Sports organizations, small businesses, and event organizers frequently use regular HTV for batch orders. The cut-and-weed method scales efficiently when the same design is replicated across multiple items. Accessories including hats, tote bags, and aprons also accept regular HTV reliably.

Specialty finishes add value to applications where standard printed color falls short. Glitter HTV on cheer uniforms, metallic HTV on corporate gifts, and flock HTV on premium apparel are all use cases where regular HTV outperforms printable alternatives.

Where Printable HTV Excels

Printable HTV serves markets where photographic fidelity is the primary requirement. Custom pet portraits on tote bags, team photos on jerseys, and branded merchandise with complex multi-color logos all benefit from the full-color output.

Small craft businesses use printable HTV efficiently for personalized, one-of-a-kind orders. Items that cannot justify the setup cost of screen printing are natural candidates. Quantities as low as one are cost-effective with printable HTV.

Combining printable HTV with regular HTV is also a recognized technique. A solid-color vinyl background layer can be paired with a photographic printable HTV accent piece. The how to layer HTV vinyl on a heat press guide details the sequencing and temperature management required for mixed-material projects.

Techniques for Consistent, Professional Results

Temperature and Pressure Settings

Temperature and pressure are the two variables that most directly determine transfer quality. Most regular HTV presses at 305°F to 320°F (152°C to 160°C) for 10 to 15 seconds. Printable HTV typically requires slightly lower temperatures to protect the ink layer — commonly 280°F to 305°F (138°C to 152°C) for 10 to 12 seconds.

Medium-to-firm pressure is standard for both materials. Insufficient pressure leads to partial adhesion and premature peeling, particularly at design edges. Excess pressure on printable HTV can cause ink bleeding at fine detail boundaries.

Mirror Image and Orientation

Regular HTV is always mirrored before cutting. The design is cut from the back of the carrier sheet and then flipped onto the fabric surface. Failing to mirror the design before cutting produces a reversed result on the finished garment — a common and costly error.

Printable HTV is printed face-up but must also be mirrored before printing. The image must read correctly on the printed surface before pressing. Because the print is visible prior to pressing, mirroring errors are easier to identify and correct before wasting material and press time.

Weeding Precision

Weeding quality affects the visual outcome of both HTV types. For regular HTV, incomplete weeding leaves unwanted vinyl on the garment after pressing. For printable HTV, over-aggressive weeding near design edges can remove thin printed sections.

Working under a bright light source significantly improves weeding accuracy for both materials. The how to weed heat transfer vinyl guide provides technique recommendations that apply to both material types.

Errors That Compromise the Final Transfer

Mistakes Specific to Regular HTV

The most frequent error with regular HTV in multi-color projects is pressing all layers simultaneously. Each layer must be pressed individually before the next is added. Pressing stacked layers at once causes uneven adhesion and color distortion at layer boundaries.

Always confirm that the HTV type is rated for the fabric's stretch level before pressing. Applying standard HTV to performance or athletic fabrics is a leading cause of premature cracking and lifting.

Additional common mistakes include:

• Selecting wrong carrier sheet orientation before cutting
• Using standard HTV on high-stretch fabric instead of stretch-rated vinyl
• Peeling the carrier sheet before the transfer has fully cooled (for cold-peel HTV)
• Pressing too briefly at reduced temperature, leaving adhesive under-activated

Mistakes Specific to Printable HTV

Printable HTV failures frequently trace back to ink selection. Dye-based inks fade noticeably after repeated washing. Pigment-based inks maintain color integrity across wash cycles. This distinction is not always apparent from packaging, requiring specification verification before purchase.

Pressing before the ink has fully dried is a second common error. Wet ink smears under heat and pressure, distorting fine details and color boundaries. Allowing the printed sheet to air-dry for a minimum of 30 minutes before loading the cutter reduces this risk substantially.

Additional errors specific to printable HTV include:

• Failing to use a protective cover sheet, transferring ink residue to the heat platen
• Using incompatible ink and printable vinyl combinations from different manufacturers
• Setting cut depth too deep, scoring the vinyl substrate and weakening adhesion
• Printing on the wrong side of the sheet — the coated side must face up during printing

Diagnosing and Correcting Transfer Failures

Peeling After Washing

Peeling is the most commonly reported issue with both HTV types after the first wash cycle. The root cause is nearly always insufficient heat, time, or pressure during the original application. Re-pressing the affected area at the manufacturer's recommended settings often resolves mild cases of edge lifting.

For detailed re-application methods and adhesion recovery techniques, the how to fix heat transfer vinyl that is peeling article covers practical repair approaches. Printable HTV that peels after washing may additionally indicate ink incompatibility with the vinyl coating. Manufacturer compatibility documentation should be reviewed before purchasing replacement sheets.

Uneven Adhesion and Lifting Edges

Uneven adhesion across a transfer indicates inconsistent platen pressure. A heat press with a warped or unlevel platen applies different force across the transfer zone. Testing platen levelness with a sheet of standard paper and a pressure gauge before production runs confirms whether calibration is required.

Lifting edges on printable HTV often result from weeding too close to the design boundary. Preserving a small margin of clear vinyl — approximately 2 to 3 millimeters — around the design perimeter improves edge adhesion on both flat and seamed surfaces.

Color Fading and Cracking

Color fading in regular HTV after washing typically indicates low-quality vinyl or incompatible washing conditions. Professional-grade HTV from established suppliers is formulated for extended wash durability. According to the Wikipedia overview of heat transfer vinyl, quality variation between manufacturers significantly affects long-term adhesion strength and color retention.

Cracking in regular HTV after wear is typically caused by under-pressing or applying standard HTV to a high-stretch fabric substrate. Printable HTV that develops surface cracks usually indicates the ink layer was exposed to press temperatures above the manufacturer's maximum threshold, degrading the coating structure.

Frequently Asked Questions

Next Steps

1. Evaluate the primary design type for the intended project — determine whether the artwork is geometric and solid-color (regular HTV) or photographic and gradient-based (printable HTV) before purchasing any materials.
2. Audit existing equipment against the full requirements for the chosen HTV type. If printable HTV is the selection, confirm that the available printer supports pigment-based ink and is compatible with the chosen vinyl sheet brand.
3. Order sample sheets of both HTV types and conduct a test press on scrap fabric at the manufacturer's recommended temperature, pressure, and time settings before committing to a production order.
4. Wash and inspect all test transfers after a 24-hour cure period using normal laundering conditions. Verify that edges remain adhered and color is stable before proceeding with customer or bulk orders.
5. Document the confirmed press settings, ink type, and material brand for each substrate tested — creating a reference sheet reduces repeat trial-and-error across future projects with the same material combination.
