RV Extension Cord: What Gauge and Length Do You Need?

Our team has spent extended stretches at full-hookup campgrounds where a mismatched rv extension cord gauge quietly throttles every appliance in the rig — from rooftop air conditioners cycling erratically to water heaters struggling under reduced voltage without triggering a single breaker. The physics of electrical resistance are unambiguous: undersized wire over excessive distance generates heat, drops voltage, and degrades connected equipment at rates most campsite users do not anticipate when selecting a cord based on price or plug type alone.

The National Electrical Code (NFPA 70) establishes minimum conductor sizing requirements that all RV extension cords sold in North America must meet, and those minimums exist because the failure modes of undersized wire — melted insulation, pedestal breaker trips, and appliance circuit board damage — are both predictable and preventable with deliberate gauge selection. Our team has documented campsite scenarios where a single cord upgrade eliminated chronic tripping and appliance complaints that had persisted across multiple camping seasons without any other change to the electrical system. For anyone working through the broader framework of campsite power, our analysis of RV 30 Amp vs 50 Amp power service establishes the foundational terminology that makes gauge selection considerably more straightforward.

What follows is our complete breakdown of gauge requirements, recommended length limits, real-world voltage drop data, and the environmental factors that shift the calculation for different RV classes and pedestal configurations.

Campsite Scenarios Where Gauge and Length Actually Matter

30-Amp RV Setups

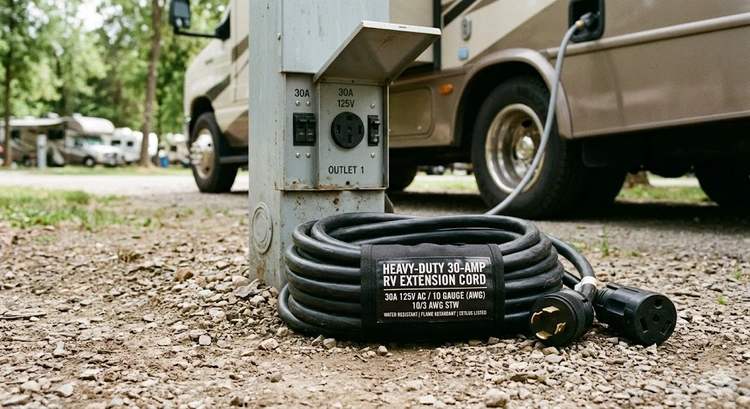

Most Class B and Class C rigs, along with the majority of travel trailers, draw through a single 30-amp, 120-volt service leg, which means the extension cord must carry the full sustained load without sagging in voltage across its entire run. Our team consistently recommends 10 AWG as the minimum gauge for any 30-amp cord, regardless of the price tier or advertised ampacity, because many budget cords use conductors that are technically compliant at 12 AWG but perform poorly beyond 15 feet under real sustained campsite loads. Appliances like rooftop AC units, diesel heaters with electric ignition and circulation fans, and electric water heaters draw in parallel and push total amperage toward the service ceiling on a regular basis during peak usage hours.

50-Amp RV Setups

Class A motorhomes and larger fifth-wheels operating on 50-amp, 240-volt service present a distinct set of constraints, because the two hot legs each carry up to 50 amps independently, meaning total potential draw reaches 12,000 watts across the rig. Our team's position is that 6 AWG is the correct minimum for 50-amp cords at lengths up to 50 feet, and 4 AWG becomes necessary beyond that threshold when running full residential-style loads including multiple AC units simultaneously. Connecting a high-draw dehumidifier alongside an air conditioner on a 50-amp service illustrates precisely why conductor sizing cannot be treated as a secondary specification in any setup.

Dry Camping with Generator Shore Power

Generator output is nominally rated but frequently delivers lower sustained voltage under full load, which compounds the voltage drop that inadequate cord gauge already introduces. Our team's field observations consistently show that a 10 AWG, 25-foot cord connected to a 3,500-watt portable generator maintains far better voltage at the rig's inlet than a 12 AWG, 50-foot alternative carrying the same total load over the same ambient temperature conditions.

What Most People Get Wrong About RV Extension Cord Gauge

A cord labeled "30A" does not automatically mean it is correctly gauged for a 30-amp RV over any meaningful distance — the ampacity rating on the package describes the connector, not necessarily the conductor's ability to carry full load across 50 or 100 feet without problematic voltage drop.

Our team has identified four persistent misconceptions that lead campsite users to purchase cords that are technically compliant but practically undersized for their actual setup:

• Pedestal rating equals cord requirement — The pedestal sets the maximum available amperage at the source; the cord gauge determines whether that amperage travels efficiently to the rig without resistive loss and heat generation along the run.
• Longer cord means more flexibility — Excessive cord length introduces unnecessary resistance even when portions of the cord are coiled and stored, because coiled sections trap heat generated by the resistance of adjacent loops under sustained current draw.
• Any 30-amp plug means any 30-amp cord — The NEMA TT-30 plug standard governs connector geometry and contact ratings only; the AWG gauge of the conductors inside the jacket is an entirely separate and equally critical specification for real-world performance.
• Outdoor-rated equals RV-rated — Standard outdoor extension cords lack the heavy-duty thermoplastic jacket, locking connector collars, and gauge specifications required for sustained high-amperage RV shore power service across multiple days or weeks of continuous connection.

Choosing the Right Gauge and Length: Core Standards

The Gauge-Length-Ampacity Triangle

The relationship between gauge, length, and ampacity follows a consistent and measurable pattern: as length increases, resistance per unit of current increases proportionally, which requires a lower-resistance conductor — larger diameter, lower AWG number — to compensate and maintain voltage within the 5% drop threshold that most RV manufacturers specify as the safe operating limit. Our team summarizes the practical guidelines that align with NEC standards in the following reference table.

When to Size Up Beyond Baseline

Our team identifies three conditions where sizing up one full gauge beyond the baseline table recommendation is warranted, even if the baseline appears sufficient on paper:

• Ambient temperatures consistently above 90°F, because elevated heat reduces conductor efficiency and accelerates insulation degradation over extended periods of continuous use
• Total connected load exceeding 80% of service rating for sustained periods of 30 minutes or longer, which is common when AC and water heater operate simultaneously
• Cord routed through enclosed storage bays, cabinet runs, or spaces where heat generated by resistance cannot dissipate naturally into surrounding air

Connecting an RV Extension Cord Correctly: Step by Step

Our team follows a consistent connection sequence that minimizes the risk of arc flash, connector damage, and pedestal breaker trips during the hookup process at any campsite.

1. Verify pedestal breaker is off before connecting either end of the cord to any live power source or the rig's inlet — this eliminates the arc that damages contacts over repeated connections.
2. Inspect the cord jacket and connectors for cracks, burn marks, green corrosion at the prongs, or any deformation in the locking collar that would compromise the weatherproof seal during use.
3. Connect the rig-end first by seating the cord into the RV's power inlet and engaging the locking ring until it clicks or threads fully — this ensures the rig is connected before any live power is introduced to the conductor.
4. Connect the pedestal-end second, seating the plug fully into the receptacle and engaging any locking mechanism the pedestal collar provides before restoring power.
5. Restore pedestal breaker power and immediately verify incoming voltage with a digital voltmeter or surge protector display — acceptable range is 108–132V for 30-amp service and 210–250V across legs for 50-amp.
6. Run the cord in a straight line without coiling the excess, laying it flat along the ground rather than looped over a hook or bracket where heat accumulation accelerates jacket degradation.
7. Check connection points for warmth after 15 minutes of operation under normal load — any connector running noticeably warm indicates a loose fit or undersized gauge that requires immediate attention before continuing use.

Building a Durable Shore Power Strategy for Extended Stays

Full-time RVers and seasonal campsite residents face a different set of cord management challenges than weekend users, because sustained current draw over weeks and months accelerates every failure mode that periodic use masks. Our team's recommendations for extended-stay shore power management include the following strategic considerations:

• Invest in a 10 AWG minimum for any 30-amp setup, and treat the cord as a long-term capital purchase rather than a consumable — quality Marinco or Camco cords with molded connectors outlast budget alternatives by several seasons under full-time use.
• Use a 25-foot cord as the primary run whenever site layout permits, supplementing with a second quality cord only when distance genuinely requires it — shorter total runs preserve voltage quality and reduce failure points in the system.
• Protect connections from weather with a cord lock or dogbone cover, particularly in winter campsite conditions where RV skirting for cold-weather insulation increases the electrical load from heating appliances drawing sustained amperage through the cord.
• Establish a level campsite before managing power connections, because the sequence of stabilization and leveling matters for safe operations — our overview of RV leveling blocks vs. stabilizer jacks covers the setup order that experienced full-timers follow consistently.
• Log voltage readings at hookup and under full load across multiple campsites, because chronic low voltage at a specific site may indicate pedestal wiring problems that require campground maintenance attention rather than a heavier cord.

Heavy-Gauge vs. Lighter Cords: The Real Trade-Offs

Our team treats cord selection as a direct trade-off between protection and portability, and the right balance depends heavily on how frequently the cord is moved versus how consistently it carries high amperage loads.

Advantages of heavy-gauge cords (8 AWG and larger):

• Significantly lower voltage drop across longer runs, which matters most for AC-heavy 30-amp rigs during summer camping
• Lower operating temperature under sustained full-load conditions, which extends both cord lifespan and connector integrity over seasons of use
• Greater headroom for simultaneous high-draw appliance operation without breaker intervention at the pedestal

Disadvantages and trade-offs:

• Substantially heavier and stiffer, making storage in tight RV compartments and manual connection in cold temperatures noticeably more difficult than lighter cords
• Higher purchase cost — a quality 8 AWG 50-foot 30-amp cord costs two to three times more than a comparable 10 AWG option at retail pricing
• Overkill for sites with pedestals within 25 feet of the rig's inlet, where a quality 10 AWG cord performs identically under the same load conditions

Essential Equipment for a Complete Shore Power Kit

Our team considers the extension cord itself to be one component of a broader shore power kit, and the supporting equipment matters as much as the cord gauge for safe and reliable campsite power management.

• Surge protector with voltage monitoring — A hardwired or portable surge protector with digital voltage display catches brownout conditions, pedestal wiring faults, and voltage spikes before they reach sensitive appliances including TVs, which our guide on RV TV mount selection and installation covers in detail as a component worth protecting.
• Digital clamp multimeter — Allows our team to measure actual amperage draw under real load conditions, confirming whether the cord gauge in use is appropriate for the measured current rather than theoretical maximums.
• Dogbone adapter (30A to 50A or reverse) — A quality dogbone rated for the full service amperage is essential when site pedestal configurations differ from the rig's inlet, and our team recommends 10 AWG or better in the adapter itself.
• Cord reel or storage bag — Proper storage prevents jacket cracking and connector damage between uses, which are the primary causes of cord failure in heavy-use scenarios.
• Power inlet lock — A locking cover over the RV's shore power inlet prevents unauthorized disconnection and protects the inlet from weather infiltration, which is particularly valuable at unattended sites where RV vent fans and roof vents may be running continuously for climate management.

Final Thoughts

Our team's consistent finding across campsite testing and full-timer interviews is that the correct rv extension cord gauge pays for itself in preserved appliance lifespan, eliminated tripping, and avoided emergency repairs long before the cord itself wears out — and the difference between a $40 budget cord and a proper 10 AWG or 8 AWG alternative is rarely more than $60 to $80 at current retail pricing. Most people researching this topic benefit from measuring the actual distance from their typical pedestal to their rig's power inlet before purchasing, then selecting the shortest cord that covers that distance with a 5-foot margin, at the gauge the table above recommends for that service type — our team recommends bookmarking that reference table for every new campsite season, and browsing the full range of shore power accessories in our RV gear coverage for companion equipment that rounds out a complete and safe setup.
