RV Holding Tank Sensors Not Working? How to Fix Them

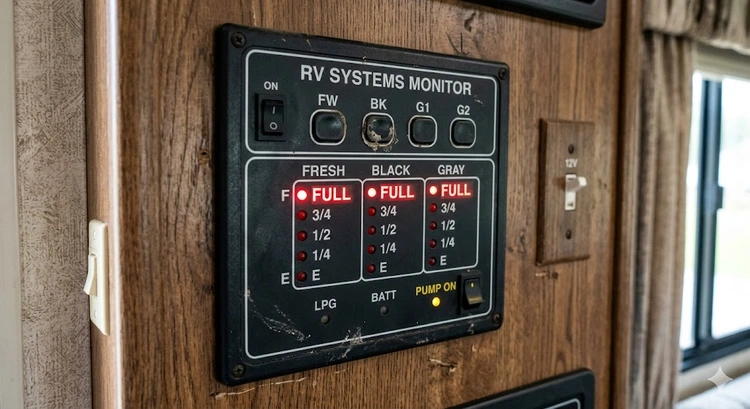

A couple pulls into a state park after a three-day drive, checks the tank monitor panel near the door, and watches all the lights glow red. The black tank was drained that same morning. The gray tank holds maybe a gallon. Something is clearly wrong. RV holding tank sensors not working is one of the most frequently reported complaints in RV maintenance forums, affecting everything from budget travel trailers to high-end diesel pushers. This guide covers the leading causes, practical fixes, and when it makes more sense to replace sensors than to clean them again. RV owners reviewing their water systems may also find the RV fresh water tank cleaning and maintenance guide a useful companion.

Holding tank sensors measure waste levels inside the black tank (toilet waste) and gray tank (sinks and shower). They relay readings to a monitor panel, typically displaying Empty, one-third, two-thirds, and Full. When sensors fail, the panel either locks on Full, reads Empty regardless of actual levels, or jumps between readings without logic. According to RV technician documentation and user reports across major RV forums, false Full readings account for the majority of sensor complaints — driven almost entirely by buildup on the probe tips inside the tank.

The monitor panel is only as accurate as the probes. Understanding what causes probe failure is the fastest path to a lasting fix. Most repairs cost less than $40 in materials and take under two hours.

Simple Fixes That Often Work Right Away

Before touching a wiring harness or ordering parts, two low-cost fixes resolve sensor problems in a large share of cases. Both require basic supplies and no electrical knowledge.

Tank Flushing as a First Step

The most common cause of false Full readings is a thick crust of solid waste and toilet paper coating the metal probe tips. That crust insulates the probe, preventing it from detecting the actual liquid level. The fix is to fill the black tank with fresh water to about two-thirds capacity, then drive the RV on a highway for 15 to 20 minutes. The sloshing action loosens the crust. Drain the tank at the next dump station and check the panel again.

Dedicated black tank flush valves — standard on many newer rigs — make this easier. A garden hose connects directly to the flush port and sprays water at pressure inside the tank. Owners without a built-in port can use a wand-style tank rinser inserted through the toilet. Using the right water pressure during this process matters; the RV water pressure regulator guide explains how to avoid over-pressurizing lines during tank flushing.

Enzyme and Chemical Treatments

When flushing alone doesn't clear the readings, enzyme-based holding tank treatments can dissolve organic buildup directly on the probe surface. Products using live bacterial cultures break down waste at a molecular level rather than simply masking odors. Leaving an enzyme solution in the tank for 24 to 48 hours often restores sensor accuracy without any disassembly.

Pro tip: Choose enzyme-based treatments over formaldehyde products — enzymes clean probe surfaces without the gradual metal corrosion that formaldehyde-based chemicals can cause over multiple uses.

Gray tank sensors face a different type of buildup: soap scum and cooking grease rather than solid waste. Both cause the same false-full behavior. The guide on how to clean, deodorize, and maintain the RV gray tank covers gray tank treatment in more detail, including which products are safe for sensors.

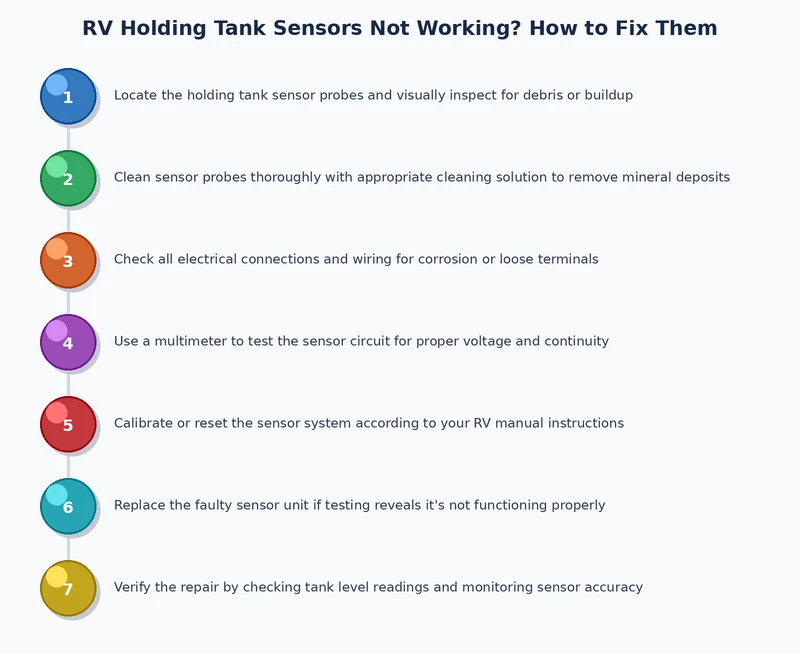

How to Diagnose RV Holding Tank Sensors Not Working: Step by Step

When simple fixes don't hold, a systematic diagnosis is needed. The goal is to determine whether the problem is the probe inside the tank, the wiring harness, or the monitor panel itself. Each has a different repair path.

Tools and Safety Prep

A proper diagnosis requires a few basic items: a multimeter for testing voltage and continuity at wiring terminals, a tank rinser wand or built-in flush valve access, nitrile gloves and eye protection, a flashlight, and a bucket of clean water for testing sensor response. Always empty and rinse the tank before any probe inspection. Working near a full black tank creates real sanitation hazards. Sensor wiring runs on 12-volt DC power on most rigs; owners who want broader context on RV electrical systems may find the RV 30 amp vs 50 amp power guide a useful reference before starting.

Checking Wiring and Probes

After the tank is empty and rinsed, locate the sensor probes. On most RVs, probes are short metal rods mounted externally on the side of the tank, visible from underneath the rig. Wires run from each probe to the monitor panel. Inspect the wiring for corrosion at the terminal connectors — green or white oxidation disrupts the circuit entirely. Cleaning with electrical contact cleaner and reseating the connectors often restores function without replacing the probe itself.

Using a multimeter, test continuity from each probe terminal to its corresponding monitor panel connector. A reading outside the manufacturer's expected range confirms a wiring or probe failure rather than a buildup issue. Pinched or chafed wires near slide-out mechanisms are a secondary cause worth checking on rigs with expandable rooms.

Most RVs built before 2015 use resistive probes — the type most vulnerable to buildup and corrosion. Capacitive external sensors, which attach to the outside of the tank wall and never contact waste, have grown in popularity as aftermarket upgrades. According to Wikipedia's overview of recreational vehicles, modern coach-class RVs increasingly ship with capacitive or ultrasonic sensor systems as standard equipment.

Sensor Replacement vs. Cleaning: Weighing the Options

Two paths exist once the cause is confirmed: restore the existing probes through cleaning, or replace them with new or upgraded sensors. Each approach has clear strengths and real limitations depending on the situation.

When Cleaning Makes Sense

Cleaning is the right call when the probes are physically intact, the wiring shows no significant corrosion, and the problem appeared after an extended period without tank treatment. In these cases, the hardware is sound — the probe surface is simply insulated by waste or scale. A thorough enzyme treatment cycle followed by a flush-and-drive session typically restores full accuracy for several months.

Cost is the primary advantage. Enzyme treatments run $10 to $20 per bottle. A wand rinser costs under $15. Total investment stays under $40 with no specialized tools required. Mineral scale — the same calcium carbonate buildup that affects plumbing fixtures, as described in the guide on how to clean a showerhead from calcium buildup — also coats sensor probes in hard-water regions. A diluted white vinegar solution introduced through the tank and left for several hours dissolves scale effectively on probe surfaces.

When Replacement Is the Better Call

Replacement makes sense in three situations: the probes show physical corrosion or surface pitting, the tank is more than ten years old with original probes, or cleaning has been attempted twice without lasting improvement. Resistive probe replacement kits are widely available at RV supply retailers for $20 to $60 depending on tank count. Installation involves removing the old probe from the tank wall fitting, threading in the replacement, and reconnecting the wiring terminal — a job most RV owners can complete with basic hand tools.

Upgrading to a full capacitive external sensor system runs $50 to $150 for a kit covering black and gray tanks. These sensors are immune to internal buildup because they mount on the tank exterior. The tradeoff is accuracy: thick tank walls on some older rigs can reduce capacitive sensor reliability. Verifying the tank wall thickness specification against the sensor kit's requirements before purchasing is a step many owners skip and later regret.

What Owners Actually Find in the Field

Real-world sensor problems rarely match a single textbook cause. Most cases involve a combination of factors discovered only through hands-on inspection.

The Mineral Buildup Scenario

A full-time RVer traveling across the Southwest reports that all three tank sensors began reading Full after a summer spent in areas with hard municipal water. The probes were physically intact and the wiring was clean, but a white calcium crust had formed on the probe tips and the surrounding tank wall. Two cycles of enzyme treatment plus a vinegar flush cleared the scale within 48 hours. The owner switched to distilled water for tank flushes and added a monthly enzyme dose to prevent recurrence.

This pattern appears frequently among RV owners who rely on municipal hookups in desert and mountain states, where water hardness levels run significantly above the national average. Proactive water quality management throughout the rig — from the fresh water inlet to the drain — slows scale formation on sensor hardware considerably.

The Corroded Probe Scenario

A part-time camper using a 12-year-old travel trailer notices the black tank sensor reads Full immediately after emptying, with the tank confirmed dry. Physical inspection under the rig reveals heavy green corrosion on the probe terminals and a partially separated wiring connector. Cleaning the terminals with contact cleaner provides a brief improvement, but the probe rod itself shows visible pitting. Full probe replacement resolves the problem permanently.

Cold and wet climates accelerate corrosion on exposed sensor hardware. RVers who store rigs outdoors or travel in winter conditions should inspect probe terminals as part of seasonal prep. The guide on RV skirting for winter insulation covers how cold temperatures affect multiple underbelly systems simultaneously — sensor wiring included.

Choosing the Right Fix for Your RV Setup

The best repair path depends on usage frequency, tank age, and available budget. What works for a weekend camper is often the wrong choice for a full-timer.

Weekend Campers vs. Full-Timers

Weekend campers who use their RV five to fifteen times per year often find that one or two enzyme treatment cycles per season keep sensors reading accurately. Lower tank usage means buildup accumulates slowly. A basic rinser kit and a reliable enzyme product cover most sensor issues at this usage level without any hardware changes.

Full-time RVers fill and drain tanks multiple times per week. Buildup accumulates faster, and repeated cleaning cycles eventually become less efficient than upgrading to a capacitive system. Full-timers who research repairs and upgrades while on the road often need reliable connectivity from remote campsites — a topic covered in the RV satellite dish setup guide for those traveling to areas with limited cellular coverage.

Older Tanks vs. Newer Systems

RVs built after 2018 increasingly ship with improved resistive probe designs or capacitive sensors as standard equipment. Owners of these rigs encounter sensor problems less frequently and typically later in the tank's service life. When issues appear, the manufacturer's service manual usually includes a specific diagnostic procedure and a direct part number for replacement.

Older rigs — particularly those built in the 1990s and early 2000s — rely on basic resistive probes with minimal corrosion protection. These benefit most from monthly enzyme treatment and annual terminal inspection. Across all RV gear categories, older systems consistently reward consistent preventive maintenance more than newer designs that incorporate higher-grade materials from the factory.

Frequently Asked Questions

Key Takeaways

• Most cases of rv holding tank sensors not working trace back to probe buildup rather than hardware failure — an enzyme treatment and flush-and-drive test should be the first step before buying any parts.
• Resistive metal probes are the most common and most buildup-prone sensor type; capacitive external sensors solve the problem by mounting outside the tank and never contacting waste.
• Corroded wiring terminals cause as many sensor failures as probe buildup and are often missed until a physical under-rig inspection is performed with a multimeter.
• Full-time RVers get the most value from a capacitive sensor upgrade, while occasional campers can usually maintain accuracy with monthly enzyme treatments and annual terminal checks.
