How to Set Up Dual Monitors on Windows

Setting up dual monitors on Windows takes less than five minutes once you have the right cable and a matched port on your GPU. Connect your second display, open Settings → System → Display, and Windows detects it automatically. For more display guides, peripheral reviews, and Windows how-tos, browse the PalmGear tech tips archive.

Productivity research consistently ranks multi-monitor configurations among the highest-ROI hardware upgrades for knowledge workers. According to Wikipedia's overview of multi-monitor computing, studies dating back to the early 2000s have documented measurable efficiency gains when users work across extended displays — with some trials reporting 20–42% task completion improvements. The gains are most pronounced in data-heavy, reference-intensive, or communication-driven workflows.

This guide covers every layer of the process: hardware port identification, cable selection, Windows Display Settings configuration, window arrangement, GPU driver management, physical maintenance, and long-term workstation planning. Whether you're running a discrete GPU or a laptop with a single HDMI-out, the process is largely the same.

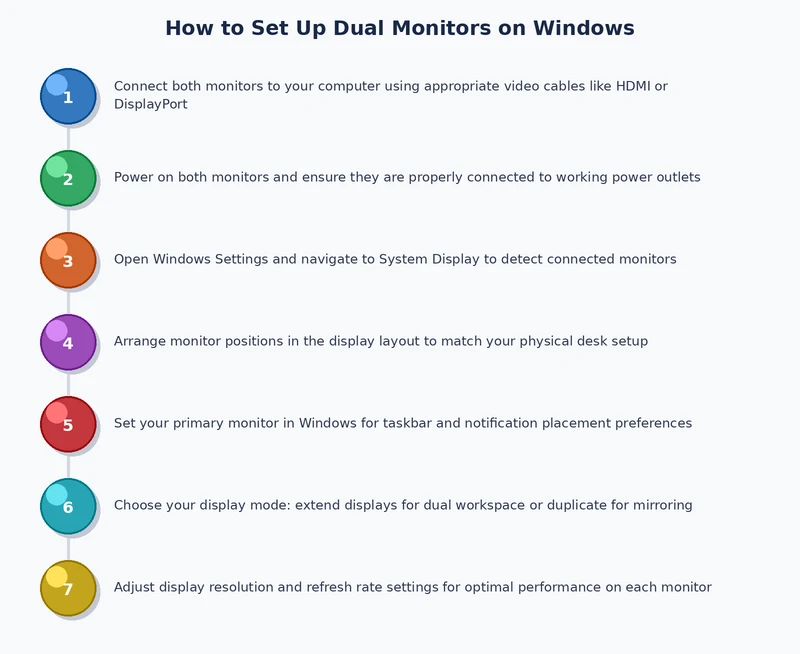

Step-by-Step: How to Set Up Dual Monitors on Windows

Check Your GPU Output Ports

Before buying a second monitor, audit the video output ports on your GPU or motherboard I/O panel. Port mismatch is the single most common setup failure.

• DisplayPort 1.2/1.4 — highest bandwidth; supports 144Hz+ and 4K without adapters
• HDMI 2.0 / 2.1 — widely compatible; 4K@60Hz (2.0) or 4K@120Hz (2.1)
• DVI-D — legacy; capped at 1920×1200 at 60Hz, no audio passthrough
• VGA — analog; avoid for new setups, no reliable support above 1080p
• USB-C / Thunderbolt 3 or 4 — common on laptops; supports DisplayPort Alt Mode for full video output

Any GPU with two or more ports of any type can drive dual monitors. Mixed-port setups — one DisplayPort plus one HDMI, for example — work without issue. Windows manages each connection independently, and resolution or refresh rate settings apply per display.

Connect the Second Display

1. Leave the system running — Windows supports hot-plugging displays without a reboot.
2. Connect the cable from the second monitor to an available GPU port.
3. Power on the second monitor.
4. Wait 5–10 seconds for Windows to detect and initialize the new display.
5. If the monitor shows "No Signal," open the monitor's OSD menu and verify the input source matches the connected port (HDMI 1, DisplayPort, etc.).

If Windows still doesn't detect the display, press Win + P and select "Extend" — this triggers a forced display re-scan on most systems and resolves the majority of detection failures.

Configure Display Settings in Windows

1. Right-click the desktop → select Display settings.
2. Both monitors appear as numbered rectangles. Drag them to match your physical arrangement — left/right or stacked.
3. Click Identify to confirm which number corresponds to which physical panel.
4. Set each monitor's resolution to its native value — running a non-native resolution produces noticeable blur on LCD panels.
5. Under Advanced display settings, verify the refresh rate per display. Monitors default to 60Hz even if they support higher rates.
6. Under Multiple displays, select Extend these displays for independent workspace per monitor.
7. Check Make this my main display on whichever panel you want as the primary — new windows, the taskbar, and the system tray default here.

For window management across both screens, pair your configuration with Windows split-screen — Snap Assist works across monitor boundaries in both Windows 10 and 11, letting you snap windows to the edges of either display.

Beginner vs. Advanced Configuration Options

What Beginners Need to Know

If you're running dual monitors for the first time, three settings control the majority of your experience:

• Extend vs. Duplicate — Extend creates two independent workspaces. Duplicate mirrors the same image on both panels. The overwhelming majority of users want Extend.
• Primary monitor designation — Set your higher-quality or larger panel as primary. Application launch points, dialog boxes, and the taskbar default here.
• Per-display scale — If your monitors have different pixel densities (for example, one 1080p and one 4K), set scaling independently under Display settings → Scale. Identical resolution monitors rarely need adjustment.

The Win + P shortcut cycles through four projection modes: PC screen only, Duplicate, Extend, and Second screen only. Use it for quick mode switching without opening Display Settings — useful when troubleshooting or switching between presentation and work configurations.

Advanced Display Settings

Power users and professionals have additional configuration options available within Windows:

• Variable Refresh Rate (VRR / FreeSync / G-Sync) — Enable under Settings → System → Display → Graphics → Advanced graphics settings. Reduces screen tearing on compatible monitors and GPUs without the input lag of traditional V-Sync.
• HDR per display — Windows 11 supports per-monitor HDR. Toggle under Display settings → Windows HD Color. Only enable on panels with certified HDR400 or higher — enabling HDR on non-HDR monitors washes out the image.
• Hardware-Accelerated GPU Scheduling (HAGS) — Available in Windows 10 2004 and later. Reduces CPU-to-GPU scheduling latency, beneficial in GPU-intensive tasks across both displays simultaneously.
• Display color calibration — Run dccw.exe per monitor individually. Factory ICC profiles rarely match real-world panel output accurately.

Pro tip: If your second monitor appears washed out or oversaturated compared to your primary, run dccw.exe on that display specifically — color temperature variation between panels from different manufacturers is the norm, not the exception, and a 10-minute calibration session closes most of the gap.

Best Use Cases for a Dual Monitor Setup

Professional Workflows

Dual monitors deliver the most measurable productivity gains in workflows that require simultaneous reference and active production:

• Software development — code editor on primary, browser, terminal, or debugger on secondary
• Video editing — NLE timeline on one screen, preview window and asset browser on the other
• Financial analysis — live data feed or Bloomberg terminal alongside spreadsheet models, no Alt-Tab required
• Graphic design — active canvas on primary, tool palettes and reference imagery on secondary
• Customer support — CRM interface on one panel, knowledge base or ticketing system on the other

Researchers and writers benefit from keeping a primary source on the secondary monitor while drafting on the primary — a workflow that integrates well with a dedicated home document scanner for digitizing reference materials without leaving the workstation.

Home Office and Creative Work

Home office configurations are the fastest-growing segment for dual monitor adoption. Common setups include:

• Video call running on the secondary monitor while taking notes or sharing files on the primary
• Remote desktop session on one screen, local applications on the other
• DAW on primary with plugin windows, mixer, and MIDI editor on secondary
• Gaming on a primary ultrawide with Discord, OBS, or system monitoring on the secondary

Home office setups that include shared peripherals benefit particularly from dual screen real estate. Keeping a print queue or peripheral management panel visible on the secondary display is practical — especially when sharing a printer across a home network with multiple users. The same logic applies when printing directly from a phone or tablet — monitoring the queue on one screen while staying in your workflow on the other eliminates context switching.

Cost Breakdown: Monitors, Cables, and Adapters

Total cost depends heavily on panel quality, size, and what hardware you already own. For most users adding a second display to an existing desktop with an available GPU port, the investment is a single monitor purchase plus a cable.

A GPU upgrade is rarely necessary. Most discrete GPUs released after 2015 support two or more simultaneous outputs. Budget-conscious buyers should check eBay or local listings for used panels — a used 24" IPS 1080p monitor in working condition typically sells for $40–$80, fully adequate for productivity use.

Passive adapters (USB-C to HDMI or DisplayPort dongles) work for lower-bandwidth connections. For 4K@60Hz or 1440p@144Hz through USB-C, choose an active adapter with a dedicated chipset — passive adapters at those specs frequently drop signal or cap refresh rates.

When to Add a Second Monitor — and When to Skip It

When a Dual Setup Makes Sense

• You regularly Alt-Tab between two or more applications within the same task
• Your core workflow involves reference-while-producing: research, development, financial analysis, design
• You handle video calls while needing to remain active in another application simultaneously
• You have at least 40–50 inches of desk width available for two 24" monitors at comfortable viewing distance
• Your GPU or laptop already exposes an available output port

When to Hold Off

• Your primary monitor is already 34" or wider ultrawide — many ultrawide panels replicate the dual-monitor benefit through native window snapping, without the seam between screens
• Your workload is single-application focused: pure writing, single-tab research, data entry into one system
• Desk width is under 36 inches — two monitors at that depth creates ergonomic strain from off-axis viewing
• All GPU outputs are occupied and a GPU upgrade is outside the budget
• You work primarily on a laptop without a docking station — mounting an external monitor without a dedicated arm or stand introduces height mismatch and neck strain

If you're on a Windows 10 system and notice slowdowns after connecting the second display, audit your startup processes before diagnosing hardware. A bloated startup sequence competes for the same system resources under divided GPU load. The guide to disabling Windows startup programs walks through the Task Manager method in under five minutes.

Planning Your Long-Term Multi-Display Workstation

A dual monitor setup is frequently the first stage in a broader workstation evolution. Planning intentionally from the start avoids costly retrofits when you expand later.

• Match monitors by manufacturer or panel series — factory color temperature and brightness variation between panels from different brands is visible in side-by-side use. Identical models eliminate calibration friction entirely.
• Buy a GPU with three or more outputs now — expanding to a third monitor later is seamless if the GPU already has the ports. Retrofitting with a USB display adapter introduces latency and driver complexity.
• Use monitor arms over stands — dual articulating arms reclaim desk surface, allow precise height and tilt matching, and support ergonomically correct positioning with eyes level with the top third of each panel.
• Consider a KVM switch — if you work across a personal desktop and a work laptop, a KVM switch lets both machines share the same dual monitor setup, keyboard, and mouse. No cable swapping.
• Route cables before the desk is fully loaded — cable management behind a populated workstation is exponentially harder than planning it at initial setup.

As your setup scales, Windows' native Display Settings become limiting. Third-party tools add the control layer most power users eventually need: DisplayFusion and Actual Multiple Monitors offer per-monitor taskbars, window rules, and hotkey profiles. Microsoft PowerToys' FancyZones provides custom snap zones across both screens with no cost. For navigating Windows credential and settings panels during multi-device setup, the walkthrough on finding saved WiFi passwords on Windows demonstrates how to move through Windows' credential interfaces without third-party utilities.

Frequently Asked Questions

Next Steps

1. Identify the available output ports on your GPU or motherboard and confirm which cable type you need for your second monitor.
2. Connect the second display, open Settings → System → Display, drag the monitor rectangles to match your physical arrangement, and set each panel to its native resolution.
3. Open Advanced display settings and verify the refresh rate on each monitor — panels default to 60Hz even when they support higher rates.
4. Update your GPU driver through the manufacturer's software (GeForce Experience, AMD Adrenalin, or Intel Arc Control) and run dccw.exe on each display for color calibration.
5. Install Microsoft PowerToys and configure FancyZones snap zones across both monitors for precision window management beyond what Windows Snap provides natively.
