What Is SSB on a CB Radio and Do You Actually Need It

Have you ever wondered why some CB radios cost twice as much just because they have an "SSB" label? Single Sideband, or SSB, is a transmission mode that fundamentally changes what your CB radio can do. Having SSB on a CB radio explained in simple terms: it strips away wasted signal energy and redirects it into raw communication power. The result is roughly double the effective range of standard AM transmissions on the same 4-watt legal power limit. But that extra capability comes with trade-offs in cost, complexity, and compatibility that every buyer needs to weigh before committing.

Whether you are a long-haul trucker, an off-road enthusiast, or an RV traveler looking to upgrade your radio gear, understanding SSB helps you decide if the premium is justified. This guide covers how SSB works, what equipment you need, and the real-world scenarios where it earns its keep.

How SSB Works and Why It Matters

Standard AM (Amplitude Modulation) transmits three components: a carrier wave and two identical sidebands. The carrier itself carries zero voice information. It exists solely as a reference signal. Each sideband is a mirror copy of the other, meaning half the transmitted data is redundant.

SSB eliminates the carrier and one sideband entirely. All transmitter power goes directly into the single remaining sideband — your actual voice signal. The FCC allows SSB CB transmissions at 12 watts PEP (Peak Envelope Power), compared to 4 watts for AM. Combined with the efficiency gains, SSB delivers roughly 4 to 6 times the effective signal strength.

AM vs SSB Signal Breakdown

USB and LSB Explained

SSB splits into two sub-modes. USB (Upper Sideband) transmits the frequency content above the carrier frequency. LSB (Lower Sideband) transmits below it. On CB radio, the convention is straightforward:

• LSB — used on channels 1 through 35
• USB — used on channels 36 through 40
• Channel 36 LSB — unofficial SSB calling channel for making initial contact

Both parties must be on the same sideband to communicate. An LSB signal received on a USB radio produces unintelligible audio. This is non-negotiable.

Equipment You Need for SSB CB

SSB-Capable Radios

Not every CB radio supports SSB. Budget models under $80 rarely include it. SSB-capable units typically start around $150 and top out near $400 for feature-rich base stations. Key features to look for:

• Clarifier control — essential for fine-tuning SSB reception (sometimes labeled "fine tune")
• RF gain adjustment — lets you reduce noise on strong signals
• USB/LSB/AM mode switch — must have all three
• Noise blanker — cuts ignition and electrical interference
• Frequency counter compatibility — useful for precision work

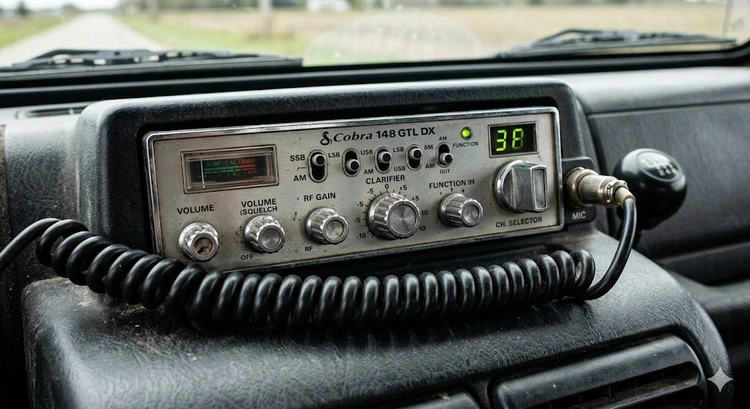

Popular SSB models include the Cobra 148 GTL, Uniden Bearcat 980, and Galaxy DX-959B. When comparing brands, your choice of radio matters as much as the SSB feature itself — check our breakdown of Midland vs Cobra CB radios to see where each brand excels on build quality and receiver sensitivity.

SSB radios are fully backward-compatible with AM. You get all 40 standard channels plus 80 SSB channels. You are not giving anything up by choosing an SSB-capable unit — you are only adding capability.

Antenna Considerations

Your antenna matters more than your radio. SSB benefits from the same antennas used for AM CB, but performance differences become more pronounced. A poorly matched antenna wastes the extra power SSB provides.

• Center-loaded whips — compact, adequate for casual SSB use
• Base-loaded fiberglass — better efficiency, popular for trucks and RVs
• Full-length 102-inch whips — maximum performance, impractical for many vehicles

Antenna selection is a deep topic on its own. Our guide to CB radio antenna types covers the trade-offs between length, mounting style, and real-world gain.

How to Operate SSB on Your CB Radio

Clarifier Tuning

The clarifier is the single most important control for SSB operation. Unlike AM, where the carrier provides an automatic frequency reference, SSB requires you to manually match the transmitting station's frequency offset. Here is the process:

1. Set your radio to USB or LSB mode (match the other station).
2. Tune to the agreed channel.
3. Slowly rotate the clarifier knob while listening.
4. Stop when the voice sounds natural — not too high-pitched, not too low.
5. Make minor adjustments as conditions change during the conversation.

The clarifier typically adjusts frequency by ±1 kHz. Turning too far in either direction makes voices sound like chipmunks or deep-sea divers. Practice with a nearby station until the adjustment becomes instinctive.

Making Your First SSB Contact

SSB etiquette differs from AM CB culture. The tone is calmer, more methodical. Channel 36 LSB serves as the informal calling channel where operators make initial contact, then move to a working channel.

• Call "CQ" followed by your handle or callsign on channel 36 LSB
• Wait 10 seconds between calls
• Once contact is made, agree on a working channel and sideband
• Keep transmissions brief — SSB operators value efficient communication

You will notice immediately that SSB channels are quieter than AM. The smaller user base means less interference and more room to talk. Many operators consider this a feature, not a limitation.

Real-World SSB Performance

Range Comparisons

The theoretical range advantage of SSB holds up in practice. Across flat terrain with a properly tuned antenna, SSB consistently reaches 15 to 20 miles where AM tops out around 5 to 7. For a deeper look at what affects these numbers, our article on how far a CB radio actually reaches breaks down terrain, antenna height, and atmospheric variables.

In hilly or mountainous terrain, the advantage narrows. SSB cannot bend around mountains any better than AM. Both modes rely on line-of-sight propagation under normal conditions. However, during atmospheric skip events, SSB signals can travel hundreds of miles — and the reduced bandwidth means your signal cuts through noise that would bury an AM transmission.

Who Benefits Most

SSB is not for everyone. Here is an honest assessment of who gets the most value:

• Long-haul truckers — extended range means earlier warning of road conditions and hazards
• RV travelers in remote areas — SSB bridges gaps where AM falls short between desert towns
• Off-road convoy groups — cleaner channels with less cross-talk than crowded AM
• Hobbyist DXers — chasing long-distance contacts during skip propagation

If you drive urban highways and only use CB for traffic reports on channel 19, SSB adds little practical value. AM handles short-range, high-traffic scenarios perfectly well. SSB shines when distance and signal clarity are the priority.

The number-one mistake new SSB buyers make is expecting the other side to have SSB too. In populated trucking corridors, most operators run AM-only radios. SSB is most useful where you need range, not where you need to reach the most people.

Maintaining Your SSB Setup

SWR and Calibration

Standing Wave Ratio (SWR) calibration is critical for any CB installation, but SSB makes it non-negotiable. With 12 watts PEP flowing through the system, a mismatched antenna reflects enough power to damage your radio's final transistor.

1. Connect an SWR meter inline between your radio and antenna.
2. Key the mic on channel 1 and channel 40 in AM mode.
3. Read the SWR on both channels — ideal is below 1.5:1.
4. If SWR exceeds 2.0:1, adjust antenna length or check coax connections.
5. Recheck after any antenna repositioning or coax replacement.

Run SWR checks seasonally and after any physical changes to your antenna system. Corrosion at connection points is the most common cause of SWR drift over time.

Keeping Equipment in Top Shape

• Coax cables — inspect for cracks, moisture intrusion, and connector corrosion every 6 months
• Antenna mount — tighten hardware and check ground plane contact points
• Microphone — clean contacts with isopropyl alcohol if transmit audio degrades
• Radio internals — blow dust from vents with compressed air; heat is the enemy of transistors
• Power connections — ensure direct battery wiring with inline fuse; cigarette lighter adapters introduce noise

SSB radios contain more sensitive components than basic AM units. The balanced modulator and carrier oscillator circuits drift if the radio overheats. Keep airflow unobstructed around the unit, especially during extended SSB transmissions.

Troubleshooting SSB Issues

Distorted or Garbled Audio

Distortion on SSB almost always traces back to one of three causes:

• Clarifier misalignment — the most common culprit. Retune slowly until the voice normalizes.
• Wrong sideband selected — if you are on USB and the other station is on LSB, audio sounds like robotic gibberish. Switch modes.
• Over-modulation — speaking too close to the microphone or too loudly drives the signal into clipping. Hold the mic 2 to 3 inches from your mouth and use a conversational volume.

If distortion persists across multiple stations, the problem is on your end. Check your microphone cable for intermittent shorts and verify your radio's modulation level with a trusted station.

No Responses on SSB Channels

New SSB operators often report "dead" channels. This is normal. The SSB user base is smaller than AM, and activity clusters around specific times and channels.

• Try channel 36 LSB first — the unofficial SSB calling frequency
• Monitor channels 35–40 during evening hours for the most activity
• During skip conditions, scan all 80 SSB channels for distant stations
• Join online CB forums to find active SSB operators in your region
• Verify your radio is actually transmitting — key up and watch the power meter

Patience is required. SSB rewards those who listen before transmitting. Spend 15 minutes scanning before you assume the band is empty.

Frequently Asked Questions

SSB doubles your reach without breaking any rules — but it only pays off if the people you need to reach are listening on the same mode.
