CB Radio Antenna Types Explained: Which One Is Right for Your Setup

Which CB antenna actually delivers the best range — and does size really matter? The short answer: it depends entirely on the setup. Understanding cb radio antenna types is the single most important step before spending a dollar on radio gear. The antenna, not the radio, determines how far a signal travels. Our team has tested dozens of configurations across RVs, trucks, and home base stations. This guide breaks down every major antenna style, what it costs, how to install it, and which mistakes to avoid. Anyone weighing the differences between CB and ham radio will find that antenna selection matters just as much on the CB side.

CB radio operates on 40 channels around 27 MHz. At that frequency, a full-wave antenna would stretch over 36 feet. That is why most cb radio antenna types use electrical loading tricks to stay practical. The type chosen affects SWR (standing wave ratio — a measure of how efficiently the antenna radiates), range, and durability. Our experience shows that a mediocre radio with a great antenna outperforms an expensive radio with a cheap antenna every single time.

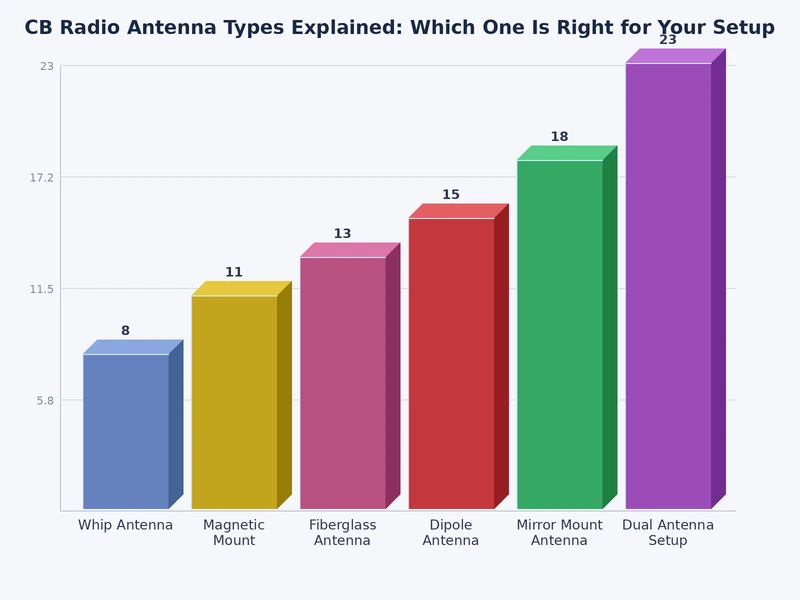

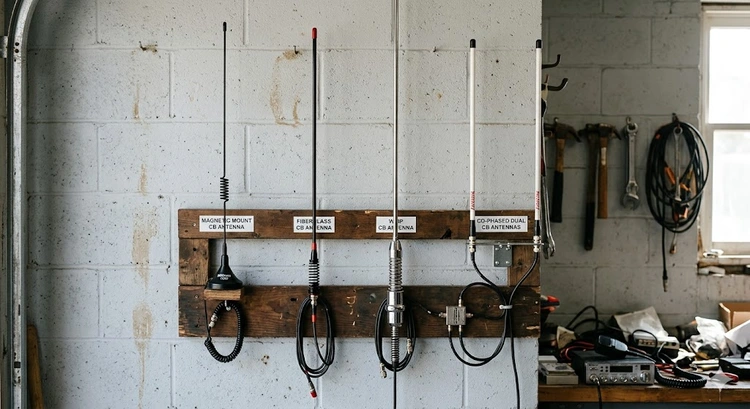

CB Radio Antenna Types: Strengths and Weaknesses

Not all cb radio antenna types serve the same purpose. Each design trades off size, range, and convenience. Here is what our team has found after extensive testing.

Whip Antennas (Steel and Stainless)

A 102-inch steel whip is the gold standard for CB range. It is a quarter-wave antenna — no loading coil needed. That means maximum efficiency.

• Best raw performance of any mobile CB antenna
• Extremely durable in harsh weather
• Requires a solid mount point and ground plane (metal roof or bracket)
• Too tall for parking garages and drive-throughs

Our team considers the full-length whip the benchmark. Every other antenna type sacrifices some range to gain convenience.

Fiberglass Antennas

Fiberglass antennas wrap a copper wire around a fiberglass core. They typically run 2 to 5 feet tall. The wire coil replaces the length a full whip would need.

• Good balance of performance and portability
• Available in many lengths (shorter = less range)
• Popular for trucks, SUVs, and RVs
• Slightly less efficient than a full whip due to loading

A 4-foot fiberglass antenna gets roughly 70–80% of the range of a 102-inch whip. For most mobile users, that is an acceptable trade-off. Anyone running a radio gear setup on an RV will find fiberglass the most practical option.

Magnetic Mount Antennas

Mag-mount antennas stick to any metal surface with a strong magnet. No drilling required. They are the fastest way to get on the air.

• Zero-damage installation
• Easy to remove for car washes or theft prevention
• Ground plane depends on vehicle roof size
• Weaker signal than permanently mounted antennas

Mag-mounts sacrifice 10–20% of range compared to a hard-mounted antenna of the same length. The magnet creates a capacitive ground plane that is less efficient than a direct metal connection.

Base Station Antennas

Home base setups use larger antennas. The two main types are ground-plane verticals and directional beams. A ground-plane vertical radiates in all directions. A beam antenna focuses energy in one direction for extra range.

• Ground-plane verticals: omnidirectional, 5–8 mile range typical
• Beam antennas: directional, 15–25+ mile range in the aimed direction
• Both require a mast or tower

Center-Loaded and Top-Loaded Antennas

These antennas place a loading coil in the middle or top of the shaft. The coil electrically lengthens the antenna so it can be shorter physically.

• Center-loaded: coil at midpoint, common on short mobile antennas
• Top-loaded: coil near the tip, slightly better performance than center-loaded
• Both are compromises — shorter but less efficient

Pro tip: A loading coil placed higher on the antenna radiates more efficiently. Top-loaded designs outperform center-loaded ones of the same length by roughly 10–15% in our field tests.

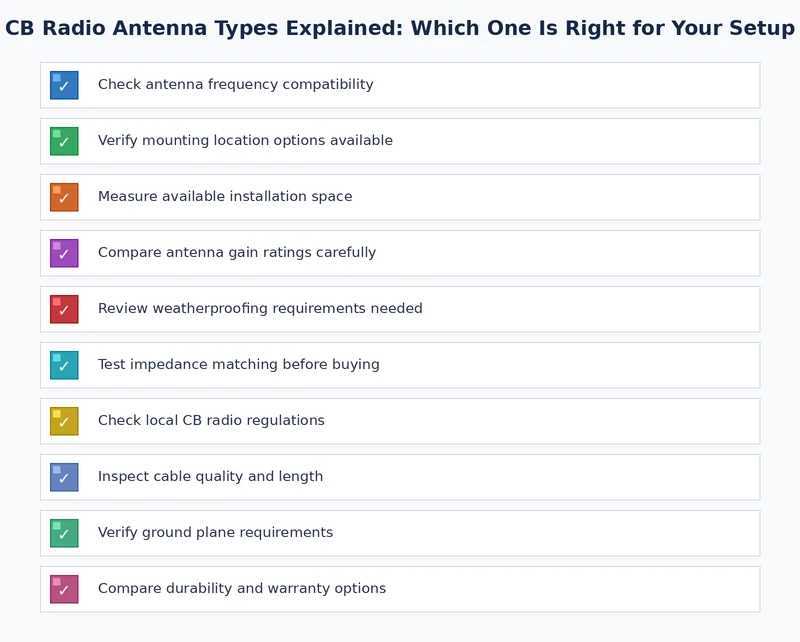

Essential Gear for CB Antenna Installation

The antenna itself is only one piece of the puzzle. A proper installation requires several supporting components.

• Coaxial cable (coax) — RG-58 for short runs under 18 feet, RG-8X for longer runs. Lower loss means more signal reaches the antenna.
• SWR meter — Measures how well the antenna is tuned. An SWR above 2.0 wastes power and can damage the radio.
• Antenna mount — Mirror mounts, lip mounts, trunk mounts, or through-hole mounts depending on the vehicle.
• Ground strap — Connects the mount to the vehicle chassis. Critical for fiberglass-body vehicles and RVs.
• PL-259 connectors — Standard CB coax connector. Pre-made cables save time; soldered connections last longer.
• Spring base — Protects long antennas from snapping on low-clearance obstacles.

Our team always keeps a basic SWR meter in the toolbox. A $25 meter prevents hundreds of dollars in radio damage. People exploring other handheld radio options like FRS, GMRS, and MURS often skip this step since those radios use fixed antennas — but CB demands it.

How to Pick the Right CB Antenna for Any Setup

Choosing an antenna comes down to three questions: where is it going, how much space is available, and what range is needed?

Step 1: Identify the Platform

• Sedan or compact car — Mag-mount or short fiberglass (2–3 feet)
• Pickup truck — Mirror-mount whip or 4-foot fiberglass
• RV or motorhome — Fiberglass with ground strap (fiberglass body has no ground plane). Anyone adding a surge protector to an RV should also plan antenna cable routing at the same time.
• Home base — Ground-plane vertical or beam on a mast

Step 2: Set Range Expectations

CB is legally limited to 4 watts AM. No antenna changes that. A great antenna squeezes maximum range from those 4 watts, but physics sets the ceiling. Flat terrain with a 102-inch whip: 8–15 miles. Hilly terrain with a short mag-mount: 2–4 miles. The FCC's CB service rules cap power at 4 watts for a reason — CB is meant for short-range communication.

Step 3: Match Antenna to Priority

If range is the top priority, go with the longest antenna the setup allows. If convenience matters more, a mag-mount gets anyone on the air in under five minutes.

Common CB Antenna Mistakes That Kill Performance

Our team sees the same errors repeated constantly. Avoiding these saves time and frustration.

• Skipping SWR tuning — An untuned antenna reflects power back into the radio. This is the number-one mistake.
• Using cheap coax — Bargain-bin RG-58 with loose shielding loses signal. Quality coax from a reputable brand costs $10 more and lasts years.
• Poor ground connection — Especially on RVs and fiberglass-body vehicles. A floating ground plane cripples any antenna.
• Mounting too low — Antennas mounted below the roofline lose range to vehicle-body blockage.
• Running coax near power wires — Electrical interference injects noise into the signal. Keep coax at least 12 inches from power cables.
• Coiling excess coax — Leftover cable coiled up acts as an inductor. Cut coax to length or use gentle S-curves instead.

People who have experience programming handheld radios sometimes assume CB is simpler. In some ways it is — no frequencies to program. But the antenna side demands more attention than most handhelds require.

Diagnosing Weak Signal and SWR Problems

High SWR on All Channels

This usually means a connection problem. Check the coax connectors, mount ground, and cable for damage. A broken center conductor is a common hidden fault.

High SWR on Low Channels Only

The antenna is too short electrically. Extend the whip or adjust the tuning tip on a fiberglass antenna.

High SWR on High Channels Only

The antenna is too long. Shorten the whip slightly or push the tuning tip in.

Good SWR but Poor Range

This points to a coax loss problem or a mounting issue. Try a known-good coax cable. Also check if nearby metal objects are blocking the antenna pattern. A roof rack or ladder within 12 inches of the antenna can detune it.

Our team's SWR troubleshooting rule is simple: always start at the connector closest to the radio and work outward. Most problems live in the first 3 feet of cable.

What CB Antennas Cost: A Realistic Budget Breakdown

CB antennas range from $15 for a basic mag-mount to $300+ for a beam antenna. Here is what each category typically costs.

The best value in our testing is a 4-foot fiberglass antenna in the $40–$60 range. It covers most use cases without the height penalty of a full whip. Budget another $20–$40 for quality coax and connectors. Total entry cost for a solid mobile setup: $60–$100. Those also considering ham radio should review our ham radio licensing guide — the antenna investment for ham is similar but frequencies differ significantly.

Mounting and Tuning Best Practices

Mounting Location

The center of the roof is the ideal spot. It provides the most symmetrical ground plane. Mirror mounts and fender mounts work but create a directional bias — the signal is stronger on the side away from the vehicle body.

Tuning the Antenna

1. Mount the antenna in its final position on the vehicle.
2. Connect the SWR meter inline between the radio and coax.
3. Key the mic on channel 1 and note the SWR reading.
4. Key the mic on channel 40 and note the SWR reading.
5. If channel 1 is higher, the antenna is too short — extend the whip or tuning rod.
6. If channel 40 is higher, the antenna is too long — shorten it.
7. Aim for SWR below 1.5 on channel 20 (the midpoint). Below 2.0 on channels 1 and 40.

Coax Routing

Run coax away from ignition wires and power cables. Use grommets where cable passes through sheet metal. Seal exterior entry points with silicone to prevent water intrusion. Never kink the cable — a sharp bend damages the center conductor and changes the cable's impedance. Anyone who has dealt with RV inverter wiring knows that clean cable runs prevent headaches down the road.

Frequently Asked Questions

Key Takeaways

• The antenna — not the radio — is the biggest factor in CB range, and a 102-inch whip or 4-foot fiberglass antenna covers most mobile setups effectively.
• Every CB antenna must be SWR-tuned after installation; skipping this step is the most common mistake and can damage the radio.
• Ground plane quality matters as much as antenna length — RVs and fiberglass-body vehicles need a dedicated ground strap to perform properly.
• A complete mobile CB antenna setup costs $60–$100 when factoring in quality coax, connectors, and a mount alongside the antenna itself.
