Best RV Backup Camera: How To Pick One And Install It

According to the National Highway Traffic Safety Administration, backup crashes injure approximately 15,000 people every year in the United States, and the risk multiplies sharply when the vehicle is a 30-foot motorhome or a bumper-pull trailer with a blind zone stretching well past the rear bumper. No combination of side mirrors eliminates that zone entirely. Finding the best RV backup camera is arguably the most consequential safety upgrade available to anyone who drives a large rig, and our team has invested considerable time evaluating wired and wireless systems, comparing monitor technologies, and working through installs on motorhomes, fifth-wheels, and travel trailers of varying lengths.

The market has expanded dramatically. Options now range from bare-bones analog kits under $50 to sophisticated digital systems with quad-split displays, dynamic parking guidelines, automatic infrared switching, and housings tested against desert heat and mountain rain. Our research for the RV accessories section on PalmGear has confirmed that no single camera suits every application. Rig length, tow configuration, available power, and whether the primary use is highway travel or tight campground maneuvering — these factors all shape the decision in meaningful ways. The sections below address every stage of the process, from understanding specifications to diagnosing problems months after installation.

Picking the Best RV Backup Camera: What the Specs Actually Tell Us

The specification sheet for any backup camera contains several numbers that matter a great deal and a few that are largely marketing. Our team has learned to focus on a short list of values — resolution, horizontal viewing angle, minimum lux rating for night performance, and signal latency — while treating others, like advertised wireless range in open-field conditions, with healthy skepticism. The best RV backup camera for a specific rig is almost always the one that matches the installation environment, not the one with the longest feature list.

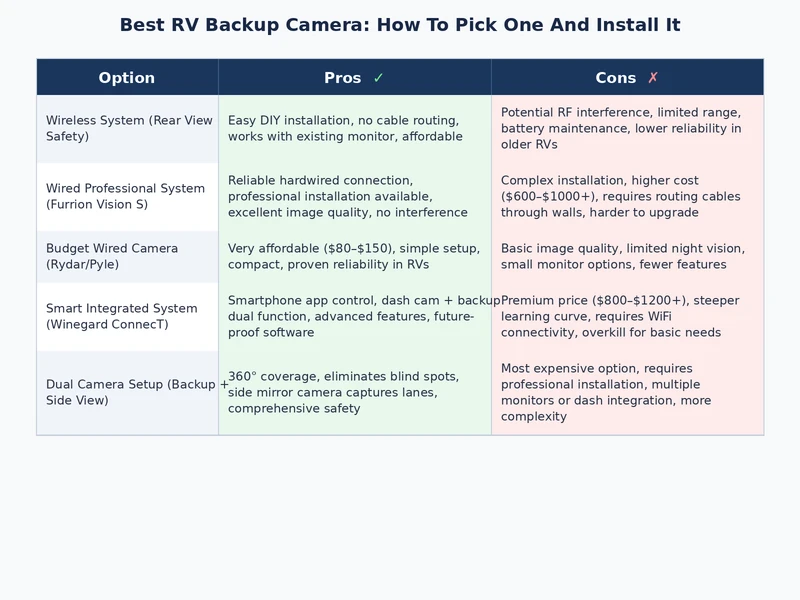

Wired vs. Wireless: How Each Type Performs on the Road

Wired systems route a coaxial or four-pin video cable from the rear-mounted camera all the way through the rig's walls or chassis to a cab-mounted monitor. The installation is involved — typically two to four hours even for experienced hands — but the payoff is a signal that road vibration, rain, and campground CB radio traffic simply cannot interrupt. For motorhomes where the cab and living area form one continuous unit, wired cable runs are generally manageable with the right tools and some patience.

Wireless systems, particularly modern digital 2.4GHz and 5.8GHz designs, have improved substantially in recent years. Digital wireless cameras pair to a receiver connected to the monitor and deliver clean video with latency in the 100–200ms range — fast enough for controlled reversing. Analog wireless is more budget-accessible but susceptible to interference from campground networks and neighboring rigs. For towed fifth-wheels and travel trailers, wireless often makes the most practical sense because it eliminates the challenge of routing a cable through the hitch connection.

Always verify that a wireless camera operates on 5.8GHz or an encrypted digital frequency — analog 2.4GHz systems in crowded campgrounds will flicker and drop signal at the worst possible moments.

Resolution, Night Vision, and Field of View

Most RV backup cameras today ship with either 720p or 1080p sensors. The resolution difference is clearly visible on larger monitors — 7-inch and above — but on a 4.3-inch dash unit the gap narrows considerably. More practically impactful than raw resolution is the camera's minimum illumination rating, expressed in lux. A camera rated at 0.1 lux or lower produces usable video in near-darkness. Anything above 1 lux renders a typical unlit campsite as a murky gray smear.

Horizontal field of view for RV cameras typically falls between 120° and 170°. Our experience places the practical sweet spot at 140°–150° — wide enough to capture both rear corners of a standard rig without the severe fisheye distortion that makes judging distances unreliable. Cameras with active infrared LED arrays extend useful night performance substantially compared to those relying solely on passive low-light sensors.

Monitor Size, Mounting, and Input Options

Monitor choice is often treated as an afterthought, but it shapes the daily usability of the entire system. A 7-inch display mounted at eye level in the cab is far more useful than a 5-inch unit buried below the dash. Most dedicated RV camera monitors accept a 12V input directly from the fuse panel and include a trigger wire that activates the display automatically when reverse gear is engaged. High-end units support four camera inputs simultaneously, which pairs well with a side-mirror camera setup for navigating tight campground lanes.

Installation Pitfalls That Catch Most RV Owners Off Guard

Our team has observed that the majority of camera installation failures trace back to a small set of entirely avoidable errors. The hardware itself rarely fails out of the box. What fails is the wiring, the mounting decision, or the power source — and those problems have a habit of surfacing at the worst possible time, typically while backing into a narrow campsite in fading light.

Wiring Mistakes That Surface Down the Road

The most common wiring error is tapping camera power directly from the reverse light circuit without first verifying that circuit's amperage rating. Most RV reverse lights run on a 5-amp fuse, and adding a camera, a wireless transmitter, and a monitor trigger wire to that same circuit can push it past its limit. Our standing recommendation is to run the camera power from a dedicated fuse tap on the main 12V panel. This also makes it straightforward to isolate the camera system for troubleshooting later without disturbing the lighting circuit.

Failing to weatherproof outdoor connections is another persistent problem. Many kits ship with basic butt connectors and assume the installer will handle sealing. Liquid electrical tape applied over heat-shrink connectors, followed by a wrap of self-amalgamating tape, creates a joint that resists moisture for years rather than months. This is especially important for cameras mounted near the rear bumper where road spray and pressure washing are routine. Anyone already familiar with RV electrical work — such as the wiring involved in installing an RV inverter — will recognize the same discipline required here.

Mounting Errors and Camera Angle Problems

Camera angle is one of those details that seems obvious until it is wrong. A camera mounted too high on the rear cap of a Class A will show mostly sky and the top of obstacles rather than the ground-level hazards that actually matter. Our standard practice is to position the camera at bumper level — or at most at the center of the rear wall — angled downward approximately 15 to 20 degrees. This framing captures both the immediate rear zone and enough mid-distance context to judge clearance during a straight reverse.

Selecting the wrong mounting surface creates vibration artifacts over time. Thin fiberglass end caps on travel trailers flex considerably at highway speeds, which can gradually shift camera aim and introduce visible shaking in the video feed. Through-bolting to a structural metal rail or using a dedicated bracket clamped to a roof ladder provides a far more stable platform than adhesive mounts or shallow screw points in thin fiberglass.

Installing an RV Backup Camera the Right Way

A clean installation begins with a clear plan. Our team always walks the full cable route — or the wireless component placement path — before picking up a single tool. Knowing exactly where the cable will pass, which interior panels need to come down, and where the monitor will sit in the cab avoids the mid-project surprises that turn a two-hour job into an all-day ordeal.

Tools, Materials, and Power Preparation

The core tool list for a wired camera installation includes a fish tape or wire-pulling kit, a cordless drill with a step-bit, self-amalgamating tape and heat-shrink connectors, a multimeter, and a 12V test light. Wireless installs require fewer tools but still demand a proper fuse tap kit and the same weatherproofing materials. Many people underestimate how much draw an RV's 12V system already carries, and our team recommends assessing available capacity before adding any new load — the same principle that applies when calculating solar power requirements for a rig's electrical setup.

Before drilling any holes in the rear cap or sidewall, use a stud finder and check the manufacturer's wiring diagram — hidden structural supports and factory harnesses are commonly routed directly behind the most tempting drill points.

Running the Cable or Configuring Wireless Pairing

For wired systems, the cable typically travels from the rear camera location through the rear cap or bumper, under the floor or along the chassis rail, and then up through the firewall or cab floor into the dash area. On most motorhomes, factory wire looms and conduit runs provide a convenient guide path that simplifies pulling the new cable considerably. On fifth-wheels and travel trailers, the cable must bridge the hitch — most experienced installers use a weatherproof cable pass-through bundled with the existing trailer wiring harness, secured tightly to prevent chafing at the pivot point.

For wireless systems, the pairing process is typically straightforward — power the transmitter and receiver simultaneously while holding a pairing button — but transmitter placement matters more than most people expect. Mounting the transmitter inside a metal compartment or directly behind refrigerator vents can degrade signal noticeably. Positioning it on a fiberglass or plastic surface with a clear path toward the cab nearly always yields a cleaner, more stable connection.

Connecting to the Monitor and Final Testing

Most dedicated backup camera monitors connect via a single RCA or BNC video input and a 12V power lead. The trigger wire — the thin wire that activates the display when reverse is engaged — should connect to the reverse light circuit at the cab end rather than at the camera, keeping the run short and the connection easy to access. After all connections are complete, our team's protocol is to power the system on in a driveway, shift into reverse, and evaluate the full image before closing any panels or securing cable runs permanently. Adjusting the camera angle at that point takes minutes. Doing it after the installation is buttoned up is a significantly more involved process.

When the Picture Goes Dark: Diagnosing Common Problems

Even a well-executed installation occasionally produces issues after the first few trips. Vibration settles connections, temperature cycles work on sealant around cable entries, and electrical gremlins appear when a second accessory is added to a shared circuit. Our team has encountered nearly every camera failure mode at this point. Most problems fall into two categories: signal problems and power problems — and both are diagnosable with basic tools.

Signal Loss and Video Interference

Intermittent video — a picture that cuts in and out during reversing — almost always points to a loose video connector rather than camera hardware failure. The RCA or BNC connection at the monitor input is the first place to check. A gentle push-and-wiggle test while the camera is live will immediately confirm or rule out a loose connector. If the connection is solid and the picture still drops, the coaxial cable may have developed a break at a bend point, which a continuity tester will locate quickly.

For wireless systems, persistent interference manifests as pixelation or a rolling static band across the image. Changing the transmitter's frequency channel — most digital units offer at least four — often resolves campground interference immediately. Relocating the receiver unit away from the monitor's switching power supply, which can emit interference in the 2.4GHz band, frequently clears up a degraded image without requiring any hardware changes at all.

Power Drops and Grounding Issues

A camera that functions perfectly in the driveway but goes dark after an hour of highway driving is almost always experiencing a grounding problem. Road vibration gradually works loose a connection that initially seemed secure. The ground path for the camera should trace directly to bare chassis metal — not to a painted surface or a daisy-chained ground borrowed from another accessory's wire. A direct ground to a clean chassis point resolves this class of problem reliably. Anyone who has already worked through the electrical system for a larger project, such as evaluating power needs for an RV generator installation, will recognize the same grounding principles at work here.

Fast Upgrades That Deliver Immediate Results

Once the primary rear camera is working reliably, a few targeted additions can transform the system from a basic safety tool into a comprehensive situational awareness platform. Our experience consistently points toward starting with the upgrades that directly address the scenarios creating the most stress during actual driving — tight campground loops, parallel approaches to utility pedestals, and lane-change monitoring on the highway.

Adding a Side or Front Camera to the System

A second camera mounted on the passenger-side rear quarter, angled downward to show the rear tire and adjacent ground, is one of the most practically useful additions for anyone navigating tight campground sites or parallel-parking a large rig. Multi-input monitors support switching between cameras manually or automatically based on turn signal input — a feature that requires only a few additional wires during the initial install to enable later. Front-facing cameras, powered from the parking light circuit, assist with tight forward approaches where the front overhang is the limiting constraint rather than the rear.

Parking Line Calibration and Display Settings

Dynamic parking guidelines — lines that shift with steering wheel input to project the rig's actual reversing path — come standard on many mid-range and higher-end monitors. Calibrating these lines to match the rig's actual turning radius takes about 20 minutes in a large empty parking area with a tape measure. Factory defaults on most monitors assume a mid-size passenger car, which makes the lines nearly useless on an RV without recalibration. After proper calibration, the guidance becomes genuinely valuable for straight-line backing into narrow sites and judging clearance from utility pedestals and low posts that are easy to miss in wide-angle footage.

Frequently Asked Questions

The best RV backup camera is not the one with the longest specification sheet — it is the one installed cleanly, aimed correctly, and trusted completely every single time the rig goes into reverse.
