RV Solar Panel Setup: How Much Power Do You Actually Need?

A weekend trip to a remote canyon left one RV owner running a generator at midnight — just to keep the refrigerator cold. The noise disturbed neighboring campers. The unexpected fuel cost doubled the trip budget. That single experience prompted a serious look at the rv solar panel setup how much power equation — and it transformed how that owner prepares for every trip since.

Solar power is now accessible, affordable, and practical for most RV owners. Whether traveling part-time or living on the road full-time, understanding energy needs is the essential first step. This guide covers load calculation, system sizing, real costs, and practical use cases. Browse more equipment and guides at the RV accessories category on PalmGear.

Understanding How Much Power an RV Solar Setup Actually Needs

The first question in any rv solar panel setup how much power discussion is deceptively simple: how much electricity does the RV actually consume each day? Without an accurate answer, no system can be sized correctly — and the result is either a system that runs dry or one that is needlessly expensive.

Calculating Daily Energy Consumption

A load calculation — the total daily energy use measured in watt-hours (Wh) — is the essential starting point. The math is straightforward:

1. List every electrical device used inside the RV regularly.
2. Find the wattage rating on the device label or in the owner's manual.
3. Estimate realistic daily usage hours for each device honestly.
4. Multiply watts × hours to calculate watt-hours (Wh) per device.
5. Sum all individual watt-hour figures for the total daily load.

Example: A 60W ceiling fan running 8 hours uses 480 Wh. A 150W television running 3 hours uses 450 Wh. Those two devices alone require nearly 1,000 Wh daily — before lighting, charging, or refrigeration is added.

Solar system designers also recommend adding a 20–25% buffer on top of the calculated load. This accounts for unavoidable losses in wiring resistance, inverter conversion efficiency (the process of turning stored DC battery power into AC household current), and charge controller overhead.

Common RV Appliances and Their Power Draw

Appliance power demands vary dramatically. The table below provides realistic wattage ranges and estimated daily watt-hours for typical RV usage patterns:

The RV refrigerator is frequently the largest continuous consumer in a moderate-use setup. Understanding how an RV refrigerator works — specifically its duty cycle and compressor behavior — helps owners estimate actual draw far more accurately than simply reading the nameplate wattage.

According to the U.S. Department of Energy, solar panels typically convert 15–22% of available sunlight into usable electricity. This efficiency figure directly determines how many panels are required for any given daily load.

Smart Practices for Sizing an RV Solar Panel System

Once the daily load figure is known, system design becomes a matter of matching components to real-world conditions. A few best practices consistently separate reliable setups from frustrating ones.

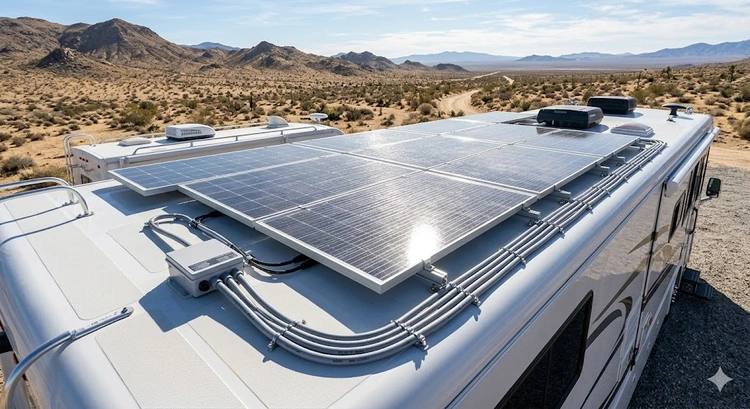

Panel Placement and Angle Optimization

Rooftop mounting is the standard choice for RVs — convenient and aerodynamic. However, several variables significantly affect real-world output:

• Tilt angle: Fixed flat panels lose 10–15% efficiency compared to optimally angled installations. Adjustable tilt mounts recover much of this loss when parked.
• Shading: Even partial shading from a roof vent or air conditioner housing can reduce total panel output by 20–50% due to series wiring in standard panel strings.
• Peak sun hours: System sizing should be based on the lowest-sun-hour destination the RV will visit regularly, not an average. Desert Southwest locations offer 6–7 peak sun hours daily. Northern and coastal areas may offer only 3–4.
• Panel type: Monocrystalline panels (made from single-crystal silicon) outperform polycrystalline options in low-light and high-temperature conditions — an important advantage for heat-exposed RV rooftops.
• Portable ground arrays: Some owners supplement rooftop panels with portable folding panels positioned for optimal sun angle. This is especially useful in shaded campsites.

A practical sizing rule: total panel wattage should equal roughly 1.2–1.5 times the daily Wh load divided by available peak sun hours. For a 2,000 Wh daily load at 5 peak sun hours, that translates to approximately 480–600 watts of panels.

Battery Banks, Inverters, and Charge Controllers

Panels generate power. Batteries store it. This storage layer is where many RV owners underspend initially and later pay the price in early replacements and poor performance.

• Lead-acid batteries: Lower upfront cost. Only 50% of rated capacity is safely usable without damaging cells. Heavier, shorter cycle life (300–500 cycles).
• Lithium iron phosphate (LiFePO4): Higher initial investment. 80–100% of rated capacity is usable. Far longer cycle life (2,000–5,000+ cycles). Lighter weight. Faster charging.
• MPPT charge controllers: Maximum Power Point Tracking controllers extract 20–30% more energy from panels than older PWM (Pulse Width Modulation) designs. MPPT is the recommended standard for any system above 200W.

Size the battery bank to store at least two full days of load without any solar input — this buffer prevents damaging deep discharges during multi-day overcast periods and significantly extends overall battery lifespan.

The inverter bridges stored DC energy and standard AC appliances. Safe, efficient wiring at the installation stage prevents problems for years afterward. A detailed walkthrough on installing an inverter in an RV covers proper sizing, fusing, and wiring practices in accessible, step-by-step detail.

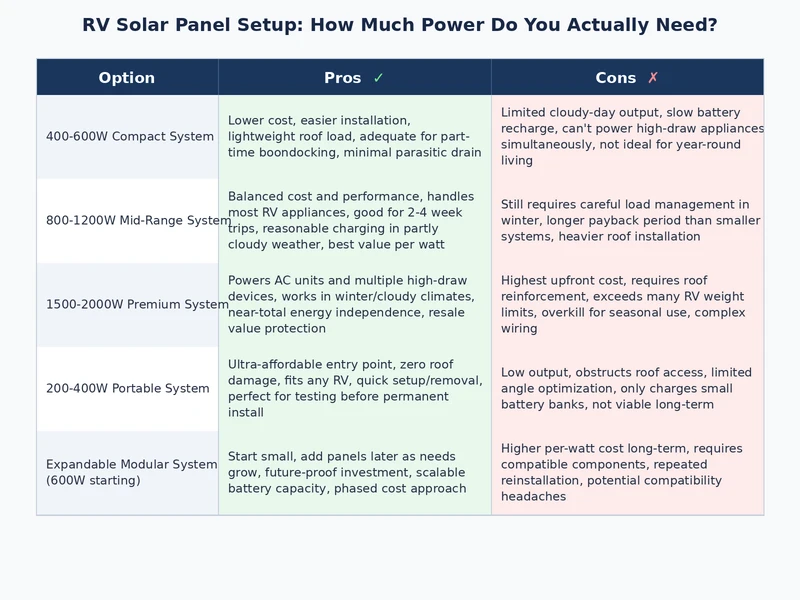

Casual Campers vs. Full-Time RVers: Choosing the Right System

The correct rv solar panel setup how much power answer differs substantially based on how the RV is actually used. A weekend camper has fundamentally different needs than someone living in the vehicle year-round.

Entry-Level Setups for Weekend Travelers

Part-time and weekend users can start with modest, cost-effective configurations. Common entry-level builds include:

• 100–200W of panels: Handles phone and tablet charging, LED lighting, and a small fan comfortably. Adequate for 1–3 day trips.
• One 100Ah AGM battery: Provides roughly 50Ah of usable capacity. Sufficient for low-demand weekends without overextending the battery.
• Basic 20A MPPT controller: Efficiently manages a small panel array without the complexity of larger systems.
• No inverter required: Running exclusively 12V DC appliances eliminates the inverter entirely, reducing cost and conversion losses.

Owners in this category also benefit from companion comfort upgrades. For example, quality RV blinds reduce solar heat gain through windows, lowering interior temperature and reducing the demand on fans and cooling equipment — which directly reduces the power load the solar system must handle.

For those considering more permanent arrangements, the legal considerations involved in living in an RV camper on a residential property are worth reviewing before committing to a large, fixed solar installation.

Full-Time and Off-Grid Configurations

Full-time residents need a robust, redundant system built for daily reliability. Typical configurations at this level include:

• 400–1,200W of panels: Multiple panels wired in series-parallel configurations for higher voltage and current handling flexibility.
• 200–400Ah lithium battery bank: Provides 2–4 days of energy autonomy without any solar recharging.
• 40–60A MPPT charge controller: Handles higher panel wattage and charges the battery bank considerably faster than smaller units.
• 2,000–3,000W pure sine wave inverter: Safely powers sensitive electronics, microwaves, and small household appliances without signal distortion.
• Backup propane or gasoline generator: Even the best solar setups benefit from a small generator for extended overcast periods or unusually high-demand days.

Full-time RV living also involves connectivity and entertainment. Setting up a reliable in-RV WiFi network is a practical priority — and even choosing a memorable network name is part of making the mobile space feel like home for long-term residents.

Breaking Down the Real Costs of RV Solar

Cost is consistently the largest hesitation for prospective buyers. Understanding the actual budget breakdown helps owners set realistic expectations and prioritize spending where it matters most.

Component Costs and Installation

Prices vary by brand, battery chemistry, system size, and whether professional installation is used. Typical market ranges include:

• Solar panels (per 100W monocrystalline): $80–$150 from reputable brands.
• MPPT charge controller (40A): $80–$250 depending on brand and display features.
• AGM battery (100Ah): $150–$250. LiFePO4 equivalent: $400–$900.
• Pure sine wave inverter (2,000W): $200–$600.
• Wiring, fusing, connectors, and mounting hardware: $100–$300 for a complete system.
• Professional installation labor: $500–$1,500 depending on system complexity and access.

A functional 400W starter system with a lithium battery, MPPT controller, and basic inverter typically runs $1,200–$2,500 fully installed. A full-time 800W system with 300Ah of lithium storage and a 3,000W inverter often reaches $4,000–$7,000 or more installed by a qualified RV technician.

Long-Term Value and Return on Investment

Solar significantly reduces or eliminates generator fuel costs and full-hookup campsite premium fees. A conservative annual savings calculation for regular users:

• Generator fuel savings: Generators consume $3–$5 of fuel per operating hour. At 4 hours of daily use over 200 camping days annually, that represents $2,400–$4,000 in saved fuel costs per year.
• Hookup fee savings: Full-hookup campsites typically cost $15–$30 more per night than dry camping spots. Over 100 nights per year, that is $1,500–$3,000 in avoided fees.
• Battery longevity: Lithium batteries last 10+ years. Lead-acid requires replacement every 2–4 years, adding recurring cost that most buyers fail to include in initial comparisons.

Most solar systems break even within 2–4 years for regular travelers. After that point, the system provides essentially free power indefinitely. Outdoor cooking habits also influence the overall energy budget — reviewing gas grill buying tips helps RV owners select efficient outdoor cooking equipment that reduces reliance on the electrical system for meal preparation entirely.

Advantages, Limitations, and Real-World Use Cases for RV Solar

A balanced view of solar power requires honest assessment of both its genuine strengths and its practical boundaries. Neither overestimating nor dismissing solar serves buyers well.

Key Benefits of Going Solar in an RV

Solar power offers several meaningful advantages over generator-only or shore-power-dependent setups:

• Silent operation: No generator noise. Camping in quiet zones, national parks, and wilderness areas becomes significantly more comfortable for everyone nearby.
• Zero ongoing fuel costs: After the system investment is recovered, power generation costs nothing.
• Off-grid freedom: Boondocking (camping without any hookups) becomes practical and comfortable rather than a compromise.
• Reduced emissions: Solar eliminates combustion emissions from generator use, relevant in sensitive wilderness environments.
• Low maintenance: Modern panels have no moving parts and typically carry 25-year output warranties.
• Property value: For RVs that double as semi-permanent residences, solar adds measurable resale appeal.

Entertainment and productivity systems also benefit significantly from reliable solar power. Devices like streaming players, tablets, and games for RV travel all run comfortably on a properly sized system, without the anxiety of monitoring battery levels every few hours.

When Solar Has Limitations

Solar is not the right fit for every situation or appliance. Honest limitations include:

• Air conditioning: A rooftop AC unit drawing 1,200–1,500W for 6+ hours daily requires 7,000–9,000 Wh of generation and storage. This demands 2,000W or more of panels and very large battery banks — expensive, heavy, and space-intensive for most RVs.
• Extended cloudy weather: Multiple consecutive overcast days drain even large battery banks. A generator or shore power backup is essential for reliable full-time use.
• Roof space constraints: Smaller Class B vans and pop-up campers may only physically accommodate 200–400W of panels, which limits system capacity regardless of budget.
• High-draw resistive appliances: Electric water heaters, hair dryers, and electric stoves consume too much power for practical solar-only operation in most RV configurations.
• Seasonal variation: Winter camping in northern latitudes with short, low-angle sun days can reduce solar generation to 30–40% of summer output.

A hybrid approach — solar as the primary source plus a small backup generator — addresses these limitations gracefully. Most full-time RVers and serious boondockers settle on this combination as the most reliable and cost-effective solution for year-round power independence.

Frequently Asked Questions

The size of a solar system matters far less than the accuracy of the load calculation behind it — measure consumption honestly, and the right system becomes obvious.
