How to Sublimate on Polyester Shirts: Step-by-Step Guide

Last month our team ran a batch of 200 custom jerseys for a local cycling club, and every single one came out with photo-quality graphics that won't crack, peel, or fade after washing. That's the magic of dye sublimation on polyester — the ink literally becomes part of the fabric. Learning how to sublimate on polyester shirts opens the door to vibrant, full-color prints that outperform virtually every other decoration method on synthetic garments.

Sublimation works by converting solid dye particles directly into gas under heat and pressure, bonding them permanently with polyester fibers at the molecular level. The result is a print with no hand feel — the fabric stays soft and breathable. For anyone exploring why polyester dominates sportswear, the answer ties directly back to this compatibility with sublimation. But the process demands precision. Incorrect temperatures, wrong fabric blends, or poor color management can turn a promising design into a washed-out mess. This guide covers the full workflow, from substrate selection through post-press care, based on thousands of prints across our studio.

Understanding Sublimation and Polyester Chemistry

How Dye Bonding Works

Sublimation exploits a phase transition: disperse dyes skip the liquid state entirely, converting from solid to gas at around 375–400°F. Under heat and pressure, polyester fibers open their molecular structure, allowing the gaseous dye to penetrate. Once the heat source is removed, the fibers close and trap the dye permanently inside. This is fundamentally different from surface-level transfers like HTV or screen printing, where pigment sits on top of the fabric.

The bond is permanent because it's chemical, not mechanical. There's no adhesive layer to delaminate, no ink film to crack. A properly sublimated polyester shirt can endure hundreds of wash cycles with negligible color loss — something our team has verified through accelerated wash testing on production garments.

Choosing the Right Ink System

Not all sublimation inks perform equally. The primary considerations include:

• Dye concentration — higher-density inks produce more vivid output but require precise ICC profiling to avoid oversaturation
• Viscosity — must match the printhead architecture; Epson-based systems (converted EcoTank printers) need different formulations than Sawgrass units
• Color gamut — CMYK sublimation inks have a narrower gamut than pigment inks, particularly in the blue-violet range
• Shelf life — sublimation ink degrades with UV exposure and should be stored in opaque containers

Anyone weighing options should review the differences between sublimation ink and pigment ink before committing to a system. The chemistries are entirely incompatible — mixing them will clog printheads irreversibly.

When Sublimation Works on Polyester — and When It Doesn't

Ideal Substrates and Blends

Sublimation performs best on 100% polyester in white or very light colors. The process is essentially transparent — there's no white ink layer — so the fabric color becomes the background. Light pastels can work, but anything darker than a soft cream will shift the printed colors unpredictably.

Polyester content directly correlates with print vibrancy. Our testing across hundreds of garments shows a clear threshold:

• 100% polyester — full color saturation, zero washout
• 85–99% polyester blends — slight softening of colors, barely noticeable on most designs
• 65–84% polyester (poly-cotton) — visible fading, vintage or heathered appearance
• Below 65% polyester — poor results; sublimation dye has insufficient fibers to bond with

Situations to Avoid

Certain scenarios consistently produce poor outcomes regardless of technique:

• Dark-colored polyester — no white ink means no contrast against dark substrates
• Natural fibers (cotton, linen, silk) — the dye has no polymer chains to bond with
• Garments with silicone coatings or DWR treatments — these block dye penetration
• Low-quality polyester with recycled content above 30% — inconsistent dye uptake across the fabric

For dark garments, HTV remains the better option. Our guide on fixing common heat press mistakes covers the recovery techniques that apply when a sublimation attempt goes sideways.

From First Press to Production Workflow

Essential Equipment Checklist

The minimum viable setup for learning how to sublimate on polyester shirts includes:

• Sublimation printer (converted Epson EcoTank or dedicated Sawgrass unit)
• Sublimation ink set (CMYK minimum; some systems add light cyan and light magenta)
• Sublimation-coated transfer paper (108gsm or higher)
• Heat press with digital temperature and timer controls — clamshell or swing-away
• Heat-resistant tape (thermal or sublimation-specific)
• Butcher paper or protective sheets
• Lint roller
• 100% white polyester shirts (moisture-wicking performance fabric preferred)

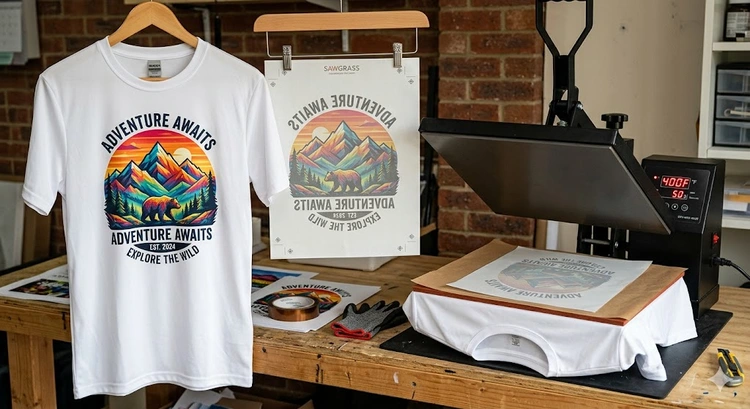

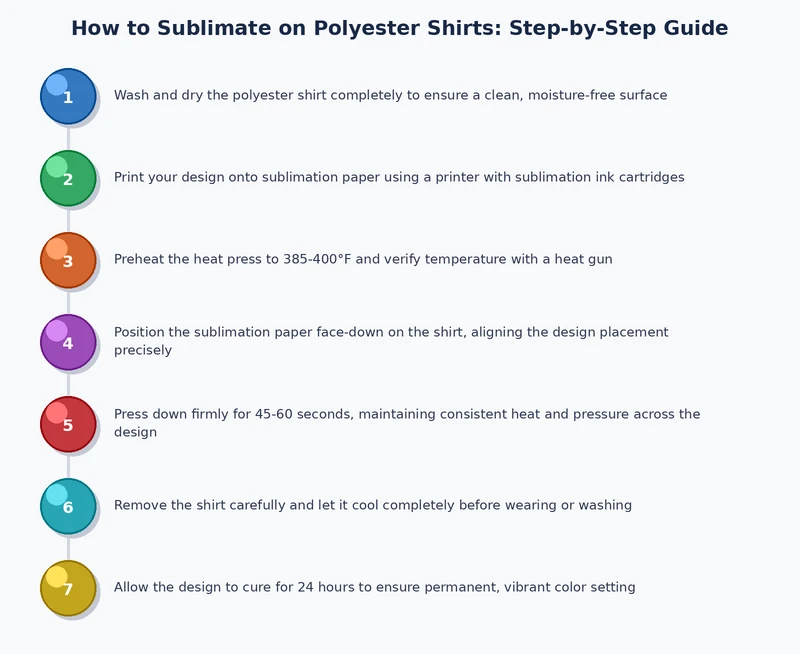

The Step-by-Step Pressing Process

This is the core workflow our team follows for every sublimation run:

1. Design and mirror — create the artwork at 300 DPI, then mirror (flip horizontally) before printing. Forgetting to mirror is the single most common beginner error.
2. Print on sublimation paper — use the correct ICC profile for the ink/paper combination. Colors will appear dull on paper; this is normal.
3. Pre-press the shirt — press the blank garment for 3–5 seconds at 385°F to remove moisture and wrinkles. This step is critical for even dye transfer.
4. Position the transfer — place the printed paper face-down on the shirt. Secure with heat-resistant tape on two edges to prevent shifting.
5. Press — close the press at the target temperature (typically 385°F), medium-firm pressure, for 55–65 seconds.
6. Peel immediately — sublimation transfers are hot-peel. Remove the paper while the shirt is still on the press or immediately after opening.
7. Inspect — check for ghosting (shadow images from paper shifting), color accuracy, and edge bleed.

Pro tip: Always place butcher paper inside the shirt between the front and back layers — sublimation dye will bleed through and transfer onto the opposite side without it.

Scaling Beyond Single Pieces

Moving from one-offs to batch production introduces workflow considerations that beginners rarely anticipate. Pre-cutting transfer sheets, staging shirts on a rack in press order, and using a second person for peel-and-stack duties can triple hourly output. Our team averages 40–50 shirts per hour on a 16×20 swing-away press during production runs.

Anyone considering a t-shirt business should factor in substrate costs carefully. Performance polyester blanks run $4–8 per unit wholesale, which is significantly more than cotton tees but justified by the print quality and durability.

Dialing In Settings for Consistent Results

Temperature, Pressure, and Time Matrix

Settings vary by substrate weight, press type, and environmental conditions. The following table reflects our tested parameters across the most common polyester shirt types:

Spandex blends require lower temperatures and shorter dwell times because the elastane fibers scorch easily. Over-pressing poly-spandex causes yellowing that's impossible to reverse. When in doubt, run a test swatch first — a 6×6 inch piece of the same fabric costs pennies compared to a ruined shirt.

ICC Profiles and Color Management

Color accuracy in sublimation depends on a chain of calibrated components. Each link matters:

• Monitor calibration — an uncalibrated display will mislead color expectations from the start
• ICC/ICM profiles — matched to the specific ink, paper, and printer combination. Generic profiles from the ink manufacturer are a starting point, not a solution.
• RIP software — dedicated raster image processors like Wasatch or CreativeStudio offer sublimation-specific color curves that standard printer drivers lack
• Paper quality — coating weight and release characteristics affect color density by up to 15%

Our team maintains separate ICC profiles for each paper brand in rotation. Switching papers without switching profiles is a reliable way to produce off-color output. According to the Wikipedia entry on dye-sublimation printing, the technology has roots in industrial textile manufacturing dating back to the 1950s, but desktop-accessible systems only became viable in the early 2010s with affordable piezoelectric printheads.

Caring for Sublimated Polyester Garments

Washing and Drying Best Practices

Sublimated prints are remarkably durable, but the polyester substrate itself has care requirements that affect longevity:

• Wash in cold water — hot water won't damage the sublimation dye, but it can cause polyester to shrink or warp
• Turn garments inside out to reduce friction against the printed surface
• Avoid fabric softener — it coats polyester fibers and can create a hazy film over prints
• Tumble dry on low or hang dry — high heat in a dryer can cause minor dye migration on poly-blends
• Never iron directly over the sublimated area — the iron's heat can reactivate the dye and cause ghosting onto the ironing board or opposite side

Long-Term Durability Expectations

In our experience, a properly sublimated 100% polyester shirt retains over 95% of its original color vibrancy after 50 washes. At 100 washes, most prints still look sharp to the naked eye, with only instrument-measured deltaE shifts detectable. This far exceeds the durability of screen-printed or HTV-decorated garments, which typically show visible wear after 30–40 cycles.

The dye is also UV-resistant to a degree, though extended direct sun exposure over months will fade any textile dye. Indoor use garments — uniforms for gyms, esports jerseys, trade show shirts — hold up essentially indefinitely under normal conditions.

Popular Applications for Sublimated Polyester

Apparel and Team Uniforms

The sublimation-on-polyester combination dominates several markets:

• Athletic uniforms — full-coverage all-over prints impossible with screen printing. Soccer, basketball, cycling, and esports jerseys are the primary volume drivers.
• Corporate and event apparel — branded polo shirts, conference tees, and staff uniforms with photo-realistic logos
• Fashion and streetwear — all-over print hoodies, leggings, and cut-and-sew garments printed on fabric rolls before assembly
• Promotional products — trade show giveaways where vibrant branding justifies the per-unit cost premium

Cut-and-sew sublimation — where flat fabric is printed and then sewn into a garment — eliminates the seam lines and unprinted areas that plague press-on-garment sublimation. It's the standard for professional sportswear but requires pattern making expertise and industrial sewing equipment.

Beyond Shirts — Other Substrates

The same sublimation workflow applies to any polyester-coated or polymer-coated substrate. Common non-apparel applications include:

• Ceramic mugs and tiles (with polyester coating)
• Metal prints and aluminum panels (ChromaLuxe-style)
• Mouse pads and desk mats
• Phone cases (polycarbonate or TPU with poly coating)
• Tumblers and drinkware (with shrink-wrap or mug press attachments)

Each substrate type requires its own temperature, time, and pressure calibration, but the fundamental chemistry remains identical. Teams already comfortable with shirt sublimation can diversify into hard goods with minimal additional learning curve.

Frequently Asked Questions

Final Thoughts

Sublimation on polyester delivers print quality and durability that no other garment decoration method can match on synthetic fabrics. The learning curve is real — color management, substrate selection, and press calibration all demand attention — but the payoff is a product that looks professional from the first piece. Start with a small batch of white 100% polyester performance tees, dial in the settings with test swatches, and build confidence before scaling to production runs or expanding into hard goods.
