RV Propane System: How It Works And How To Stay Safe

The rv propane system how it works is simple at its core: liquid propane stored in onboard tanks converts to vapor, passes through a pressure regulator, and travels through copper or steel lines to the appliances. That's the whole picture. The complexity lives in the safety layers stacked into every stage — OPD valves, two-stage regulators, automatic changeovers, and LP detectors. RV owners who understand their propane setup make smarter decisions and catch problems before they turn dangerous. For more on the hardware and accessories that keep a rig running smoothly, the RV accessories section covers the full range of equipment worth knowing.

How the RV Propane System Works: A Full Walkthrough

Understanding the rv propane system how it works starts at the tank and follows the gas to the burner tip. Every component in between exists for a reason — pressure control, flow regulation, or safety cutoff. Missing any one of them creates risk.

The Core Appliances and Their Demand

Most rigs run four propane appliances: the furnace, the range or cooktop, the water heater, and the refrigerator. The furnace dominates consumption, drawing 20,000 to 30,000 BTUs per hour in cold conditions. The water heater runs around 10,000 BTUs. Stovetop burners average 9,000 BTUs each. The refrigerator is the lightest consumer on the list — how much propane an RV refrigerator actually uses surprises most first-time owners, especially when compared to the furnace draw on a cold night.

Running all four simultaneously is rare in practice, but the regulator and supply lines are sized to handle that peak load without pressure drop. That margin matters when the furnace cycles on mid-breakfast.

How Propane Flows Through the Rig

The flow path starts at the tank valve, moves through the OPD (Overfill Protection Device) — a mandatory safety feature on all DOT cylinders manufactured after 1998 — into the first stage of the regulator, through the second stage, and then branches through the main supply line to individual appliance shutoffs. Most factory installations use 3/8-inch copper tubing for primary runs and corrugated stainless steel tubing (CSST) or flex connectors at each appliance. Delivery pressure after the regulator sits at approximately 11 inches of water column, roughly 0.4 PSI, down from the 100 to 200 PSI inside the tank.

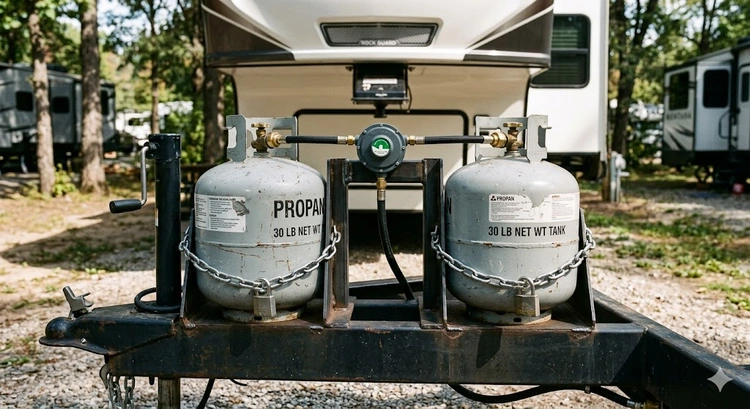

Dual-tank setups add an automatic changeover valve between the tanks and the regulator. When the active tank runs empty, the valve switches to the reserve tank and trips an indicator flag. This design eliminates mid-night shutoffs without any manual intervention.

Single-Stage vs Two-Stage Regulators: What Every RV Owner Should Know

How Single-Stage Regulators Work

A single-stage regulator drops tank pressure to delivery pressure in one step. Simpler, cheaper, and completely adequate for portable equipment and small tailgate setups. The drawback is pressure instability: as tank pressure drops in cold weather or under heavy demand, delivery pressure fluctuates. Appliance performance suffers. Burner output drops. The furnace flame weakens at the worst possible moment.

Why Two-Stage Is the Industry Standard

Two-stage regulators solve the pressure stability problem by splitting the reduction into two controlled steps. The first stage drops tank pressure to a fixed intermediate level, typically 10 PSI. The second stage reduces that to the 11-inch WC delivery pressure. This two-step design absorbs temperature swings and simultaneous demand spikes without output variation. Every reputable RV manufacturer installs two-stage regulators at the factory. Replacing a single-stage unit on an older rig is a high-value upgrade — the part costs under $50 and takes thirty minutes to swap.

Propane vs Electric: Running the Numbers in an RV

BTU Output and Real-World Efficiency

Propane delivers 91,500 BTUs per gallon. Electric resistance heating delivers 3,412 BTUs per kilowatt-hour. At campground shore power rates, running electric heat costs more per BTU than propane in most U.S. markets. Off-grid, the comparison tilts further toward propane — drawing the same heat load from batteries would drain a typical 200Ah lithium bank in a few hours. For heating and cooking, propane wins on energy density every time.

The refrigerator equation is different. Absorption refrigerators running on propane are significantly less efficient than 12V compressor units. When shore power or solar is available, switching the fridge to electric is the correct move. Propane absorption cooling makes sense off-grid when battery capacity is limited.

Cost and Availability at a Glance

When to Run Propane — and When to Shut It Off

Most propane incidents happen not because the system failed, but because the operator ran it in a scenario that demanded a shutoff. Knowing where that line sits is non-negotiable.

Safe Operating Scenarios

Running propane appliances while parked and level is standard operating procedure. The furnace, water heater, and refrigerator can all run simultaneously without concern in a properly maintained system. Cooking on the range while stationary is safe as long as there's adequate ventilation. The RV furnace troubleshooting guide walks through the most common failure modes when the system is running but appliances aren't lighting — a useful read before assuming there's a leak.

According to the National Fire Protection Association, propane systems that are regularly inspected and operated within design parameters have a strong safety record. The risks are almost entirely operator-error driven.

Situations That Demand a Shutoff

Close the tank valve at gas stations — always. Driving with propane appliances running is legal in most states but not recommended, particularly through tunnels where it's often prohibited. Shut down the system any time an LP detector alarm trips. Don't reset the alarm and keep running. Find the source first.

If the smell of mercaptan (the odorant added to propane) is present and unexplained, close the valve, open windows, exit the rig, and don't operate any electrical switches. A single spark can ignite a propane-air mixture in the 2.2% to 9.6% concentration range. That's not a scenario to troubleshoot from inside the coach.

Step-by-Step: Testing and Inspecting Your Propane System

A basic pressure leak test takes under ten minutes and should happen at the start of every season. Skipping it is how small, slow leaks turn into serious problems.

The Leak Test Procedure

Turn off all appliances and open the tank valve fully. Check the regulator's inlet gauge — if the rig has one — and note the pressure reading. Close the tank valve. Watch the gauge for five minutes. Pressure drop indicates a leak somewhere in the system. No drop means the system is holding. Some owners use a manometer at the regulator outlet to check delivery pressure directly; 11 inches WC is the target, with anything below 10 or above 12 warranting regulator inspection.

For fitting checks, mix dish soap with water and brush it onto every connection — regulator inlet and outlet, tank collar, appliance shutoff valves, and any accessible inline fittings. Bubbling identifies the leak point immediately. Never use an open flame for this test.

Checking Connections and Fittings

Flare fittings on copper tubing are the most common leak points on older rigs, especially after road vibration loosens connections over thousands of miles. CSST connections are more resistant to vibration but should be checked for physical damage — kinks, abrasion against metal edges, and corrosion at bonding clamps. The regulator vent should be pointing down and free of debris. A blocked vent causes pressure regulation failure that mimics a system-wide problem.

Propane System Maintenance and Seasonal Care

Routine Inspection Schedule

The regulator is the most-overlooked component in the RV propane system. Most manufacturers rate them for ten years, but UV exposure, moisture intrusion, and diaphragm fatigue shorten that window in harsh climates. Replace the regulator on a five-to-seven-year schedule regardless of apparent function. A failing regulator often delivers inconsistent pressure before it fails completely — furnace cycling issues and weak burner output are early warning signs.

Appliance orifices should be checked annually for spider webs and debris. Mud dauber wasps are notorious for nesting in water heater and furnace vents during storage. A blocked burner orifice causes incomplete combustion, which generates carbon monoxide — a hazard that LP detectors won't catch since CO detectors are a separate device. Good RV setups have both. The broader costs and logistics of full-time RV living, including maintenance budgets, are broken down thoroughly in this guide to full-time RV costs.

Winterizing the Propane System

Winterizing the propane side of the rig is simpler than the water system but still requires attention. Close tank valves before any extended cold-weather storage. Run all appliances until the lines are empty, then verify shutoffs are fully closed at each appliance. The regulator should be covered or the entire unit should be brought indoors if storing in extreme cold — freezing moisture inside the regulator body damages the diaphragm. For a complete walkthrough of shutting down all RV systems before winter, the step-by-step RV winterization guide covers every system in sequence.

Tanks themselves need minimal care in storage. Keep them at least 20% full during storage — completely empty tanks accumulate interior condensation that accelerates valve corrosion. OPD valves on DOT cylinders expire after twelve years from the manufacture date stamped on the collar. ASME tanks (the fixed, horizontal tanks on most towables and motorhomes) don't expire but require periodic recertification under NFPA 58 guidelines.

Frequently Asked Questions

Know your propane system cold — because the one time it matters, there won't be time to look it up.
