Heat Press Temperature and Pressure Guide for Every Material

Ever ruined a perfectly good shirt because the heat press was set five degrees too high? Getting temperature and pressure wrong is the fastest way to waste blanks, vinyl, and time. This heat press temperature guide breaks down the exact settings for every common material — cotton, polyester, nylon, canvas, ceramic, and more — so each project comes out clean on the first try. Whether the goal is HTV transfers, sublimation prints, or custom tumblers, the right combo of heat and pressure is non-negotiable. Bookmark this page and reference it before every single press. For a broader overview of machine basics, check out the complete heat press guide.

Why Temperature and Pressure Matter

Temperature and pressure are the two pillars of every successful heat press job. Get one wrong, and the transfer either peels off after one wash or scorches the fabric permanently. Understanding what each variable does — and how they interact — saves money and frustration in the long run.

The Science Behind Heat Transfer

Heat activates the adhesive layer on HTV (heat transfer vinyl) or triggers the dye-gas conversion in sublimation ink. Too little heat means the adhesive never fully bonds. Too much heat melts synthetic fibers or causes dye migration — that ugly bleed where colors spread beyond the design edges. The physics of heat transfer involve conduction from the platen directly into the substrate, which is why even heat distribution across the entire platen matters so much.

Different materials have different melting points and heat tolerances:

• Cotton — handles high heat well (up to 400°F) because natural fibers resist melting
• Polyester — starts to warp and scorch above 320°F
• Nylon — extremely heat-sensitive, often maxing out around 275°F
• Ceramic and metal — can take high temps but need longer press times

What Pressure Actually Does

Pressure ensures full contact between the transfer material and the substrate. Without enough pressure, air pockets form and parts of the design fail to adhere. Too much pressure can push adhesive through thin fabrics or crush the texture of performance materials. The sweet spot depends on the blank's thickness. A thick hoodie needs more pressure than a thin polyester jersey. For a deep dive into dialing in pressure specifically, the pressure settings guide covers every scenario.

What a Heat Press Setup Really Costs

A heat press temperature guide is useless without the right equipment. The good news is that getting started doesn't require a massive investment. The bad news is that cheap machines often have poor temperature accuracy, which makes following any guide unreliable.

Budget Breakdown by Experience Level

• Beginner (under $200) — Entry-level 15×15 clamshell press. Temperature accuracy within ±10°F. Fine for occasional hobby projects on cotton.
• Intermediate ($200–$500) — Swing-away press with digital controls. Accuracy within ±5°F. Handles a wider range of materials reliably.
• Professional ($500–$1,500+) — Auto-open press with even platen heating, built-in pressure gauge, and accuracy within ±2°F. Essential for production runs.

Beyond the machine itself, budget for a few key accessories: a Teflon sheet ($5–$10), a heat-resistant pillow for seams ($10–$15), and an infrared thermometer ($20–$40) to verify actual platen temperature. That thermometer alone prevents more ruined blanks than any other single purchase.

When to Adjust Settings — and When to Leave Them Alone

Not every project needs a settings overhaul. Knowing when to tweak and when to trust the defaults saves a lot of unnecessary test presses.

Scenarios That Demand a Change

• Switching materials — Going from cotton to polyester requires dropping the temperature by 50–80°F. Always reset between material changes.
• Changing transfer types — HTV, sublimation, and DTF (direct-to-film) transfers all need different settings even on the same fabric.
• Thick or textured blanks — Hoodies, canvas bags, and denim need increased pressure and sometimes 3–5 extra seconds of press time.
• Cold or humid environments — Shop temperature below 60°F can affect preheat times. Add 5–10 seconds to the initial preheat.
• Peel method changes — The choice between cold peel and hot peel HTV directly affects post-press handling and sometimes requires slight temperature adjustments.

When the Default Works Fine

If the same blank, same vinyl, and same machine are being used for a production batch — don't touch the settings after the first successful test press. Consistency is king. Many beginners tinker between presses and introduce variables that cause inconsistent results. Lock it in and leave it alone.

Essential Tools for Dialing In the Perfect Press

Must-Have Accessories

The heat press itself is only half the equation. These accessories make the difference between guessing and knowing:

• Infrared thermometer — Point it at the platen surface to verify the display matches reality. Most budget presses are off by 5–15°F.
• Teflon sheets — Protect the blank and the platen from adhesive residue. Replace them when they get discolored or sticky.
• Heat-resistant pressing pillow — Slip it under the blank to even out pressure around buttons, seams, and zippers.
• Timer app or standalone timer — Don't rely solely on the machine's built-in timer. A backup timer catches those moments when the beep gets missed.
• Test fabric scraps — Always run a test press on a scrap of the same material before committing to the real blank. A $2 scrap saves a $12 shirt.
• Lint roller — Remove dust, hair, and fiber debris before pressing. Even tiny particles leave visible marks under HTV.

For anyone building out a more complete setup, a mug press attachment and hat press attachment expand what materials and shapes the machine can handle — useful for making custom tumblers or pressing caps.

Fast Fixes That Improve Every Press

Instant Upgrades Anyone Can Do

These take less than five minutes each and noticeably improve transfer quality:

• Pre-press the blank for 3–5 seconds — This removes moisture and wrinkles. Moisture is the hidden enemy of clean transfers.
• Mirror the design before cutting — Sounds obvious, but this remains the number-one beginner mistake with HTV.
• Use a heat-resistant tape to hold the transfer — Prevents shifting during the press, especially on slippery polyester.
• Let the machine fully preheat — Wait at least 5 minutes after the display shows the target temp. The platen needs time for the heat to distribute evenly.
• Press on a hard, flat surface — Wobble in the table transfers directly to uneven pressure on the blank.

Most failed transfers come down to skipping one of these basics, not from having the wrong temperature. Nail these habits first, then fine-tune the numbers.

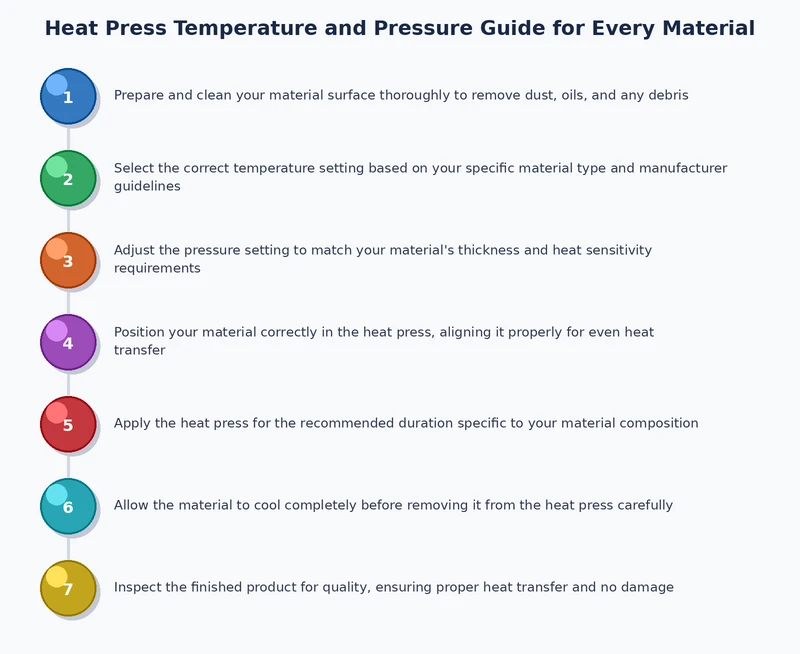

Step-by-Step: Setting Temperature and Pressure for Any Material

This is the core heat press temperature guide — a comprehensive reference table covering every common material. Clip it, print it, tape it to the wall above the press.

Cotton and Cotton Blends

Cotton is the most forgiving material. It handles high heat without scorching and bonds well with most transfer types. Cotton blends (like 50/50 cotton-poly) need slightly lower temperatures to protect the polyester content.

Note that sublimation on 100% cotton simply doesn't work — sublimation ink bonds to polyester fibers, not natural ones. For cotton blanks, HTV or DTF are the only reliable options.

Polyester and Performance Fabrics

Polyester is trickier than cotton. The lower heat tolerance means there's a narrower window between "not hot enough" and "scorched." Performance fabrics (moisture-wicking jerseys, athletic wear) are almost always polyester-based and need the same careful treatment.

Key rules for polyester:

• Never exceed 285°F with HTV — the fabric will warp or develop a glossy sheen (called glazing)
• Use a Teflon sheet to prevent shine marks on the fabric surface
• Cold peel only — pulling HTV while the transfer is still hot causes peeling and cracking
• Consider using a pressing pillow to avoid seam impressions on jerseys

For sublimation on polyester — which produces the best results of any combination — the temperature jumps back up to 385–400°F. This seems contradictory, but sublimation is a dye process, not an adhesive one. The ink converts to gas and bonds at the molecular level without melting the surface. Learn more about the full sublimation process in this polyester sublimation guide.

Specialty Materials and Hard Substrates

Hard substrates like ceramic mugs, aluminum panels, and wood plaques follow different rules. The press time jumps dramatically — mugs need 3–4 minutes compared to 10–15 seconds for a t-shirt. Temperature stays similar to sublimation on fabric (380–400°F), but pressure works differently because rigid substrates can't compress like fabric.

For canvas tote bags, increase pressure to firm and add a few extra seconds. Canvas is thicker than standard garment fabric, so heat takes longer to penetrate fully. The canvas tote bag pressing guide walks through the full process.

Common Heat Press Mistakes That Wreck Projects

Temperature-Related Errors

The most expensive mistakes almost always involve temperature. Here are the ones that come up again and again:

• Trusting the display without verifying — Budget heat presses routinely display temperatures 10–15°F off from actual platen temperature. An infrared thermometer costs $20 and pays for itself after one saved blank.
• Not adjusting for material switches — Pressing polyester at cotton temperatures causes immediate, visible damage. Always reset when switching materials.
• Pressing too long "just to be safe" — Extra time at high heat causes yellowing on white cotton and glazing on polyester. Stick to the recommended range.
• Ignoring ambient temperature — A cold garage in winter means the platen loses heat faster when opened. Add 3–5 seconds to press time or let the machine preheat longer.

Pressure-Related Errors

Pressure mistakes are subtler but just as damaging:

• Cranking pressure to maximum — Excessive pressure pushes adhesive through thin fabrics and creates hard, plasticky-feeling transfers. Light to medium pressure works for most garments.
• Not accounting for blank thickness — A hoodie needs noticeably more pressure than a thin tee. Adjust the knob every time the blank thickness changes.
• Skipping the pressing pillow — Seams, buttons, and zippers create uneven surfaces. Without a pillow, the area around these features gets zero pressure and the transfer fails there first.
• Uneven platen contact — If the press wobbles or the table isn't level, one side gets more pressure than the other. Check alignment monthly.

When a transfer does go wrong, don't toss the blank immediately. Many issues — partial peeling, light spots, slight misalignment — are fixable with a repress or careful removal. The heat press mistake recovery guide covers the most common saves.

Frequently Asked Questions

Key Takeaways

• Always verify actual platen temperature with an infrared thermometer — display readings on most heat presses are 5–15°F off, and that gap is enough to ruin a transfer.
• Cotton handles the most heat (up to 320°F for HTV), polyester needs a careful hand (270–285°F for HTV), and nylon demands the lightest touch at 260–275°F.
• Pre-pressing blanks for 3–5 seconds to remove moisture, using a Teflon sheet, and running a test press on scrap fabric prevent more failures than any temperature tweak.
• When something goes wrong, add a few seconds of press time at the correct temperature rather than cranking the heat — more time is almost always safer than more heat.
