How to Heat Press on Leather and Faux Leather

A customer once walked into a craft studio with a genuine leather bifold wallet, a bottle of rubbing alcohol, and a sheepish look on her face. She had run it through a standard cotton T-shirt program — 375°F, firm pressure, 15 seconds — and pulled out something scorched, stiff, and unsalvageable. Knowing how to heat press on leather correctly, from temperature selection to surface preparation, is the difference between a professional result and a ruined piece that cannot be undone.

Leather and faux leather sit at the intersection of high demand and high risk in the heat press world. These materials carry a premium feel that makes them popular for custom wallets, jackets, patch panels, and gift items — but their heat sensitivity is unforgiving of sloppy settings. For users already referencing the heat press temperature chart for beginners, leather represents one of the most nuanced entries: a substrate where the margin between perfect and ruined is measured in degrees and seconds.

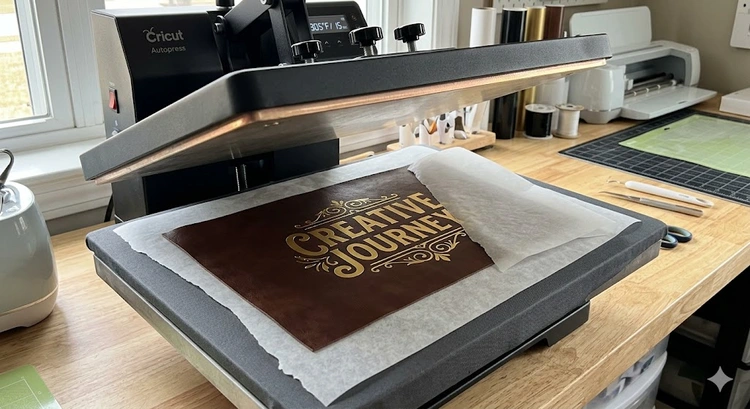

This guide covers every phase of the process — substrate behavior, settings, transfer selection, troubleshooting, and long-term care — for both genuine and faux leather surfaces.

What Makes Leather and Faux Leather Different from Standard Fabrics

Most heat press substrates — cotton, polyester, canvas — are woven or knitted structures with air pockets that allow heat to dissipate and transfer adhesives to bond into the fiber matrix. Leather operates on completely different physics. Leather is a dense, tanned animal hide with a collagen fiber network that conducts and retains heat differently than any textile. Faux leather adds another layer of complexity: it is a polymer film — polyurethane (PU) or polyvinyl chloride (PVC) — bonded to a woven backing, and that polymer layer has a defined softening threshold that must not be crossed.

These structural differences require a complete reset of standard pressing assumptions.

The Science Behind the Surface

Genuine leather's collagen fibers begin to denature — shrinking, stiffening, and discoloring — at sustained temperatures above 160°F. Visible scorching becomes a serious risk above 200°F, particularly on vegetable-tanned leather, which has less chemical modification than chrome-tanned hides. Chrome-tanned leather tolerates heat slightly better, but the margins remain narrow by pressing standards.

PU faux leather typically tolerates heat up to 275°F–300°F before the polymer layer begins to soften and lose surface texture. PVC faux leather is even more reactive — it can warp, crack, or release plasticizers under sustained high heat, making it the most demanding of the three substrates. This heat sensitivity mirrors what practitioners encounter when pressing other synthetic materials, as detailed in the guide to heat pressing nylon fabric.

Why Standard HTV Settings Fail on Leather

Standard cotton programs run at 305°F–330°F for 10–15 seconds under medium-to-firm pressure. That protocol scorches genuine leather instantly and distorts PU faux leather in most cases. The problem is compounded by the fact that leather, unlike fabric, has almost no breathability — heat builds up at the surface rather than dispersing through the material. Every second of dwell time carries disproportionate thermal impact on these substrates.

Genuine Leather vs. Faux Leather: Side-by-Side for Heat Press Work

Choosing the right substrate before a project begins is as important as setting the correct temperature. Genuine and faux leather diverge sharply in how they respond to heat, pressure, and adhesive bonding — and those differences dictate the entire workflow.

Heat Tolerance and Surface Behavior

Transfer Adhesion and Surface Prep

Adhesion on genuine leather depends heavily on pre-press surface preparation. Natural hides carry conditioning oils from the tanning process — and any additional conditioner applied by the owner compounds the problem. A firm wipe-down with 90%+ isopropyl alcohol removes surface oils and opens up the leather's pores for better HTV contact. Skip this step and the transfer will look bonded immediately after pressing but begin lifting within days.

PU faux leather bonds more consistently because its uniform polymer surface provides a reliable substrate for HTV adhesive. The critical variable here is the peel method. Cold peel gives the adhesive more time to fully set before the carrier film is removed — a meaningful advantage on slick surfaces. The detailed breakdown in the guide to cold peel vs hot peel transfer paper applies directly to leather work.

Popular Applications for Heat Press on Leather

The market for heat-pressed leather customization spans apparel, accessories, and home goods. Both retail shops and home crafters have found reliable revenue streams in these categories.

Apparel and Accessories

• Leather jackets and vests: Back panel club designs, band logos, and custom artwork using HTV or screen printed transfers
• Wallets and cardholders: Monograms, initials, and small logos on full-grain or top-grain leather
• Belts: Edge-to-edge graphic runs on smooth veg-tan leather strips
• Hat patches: Pressing onto the leather patch panel only, leaving the fabric body untouched — a technique covered in the guide to heat pressing hats and caps
• Keychains and luggage tags: Small-format HTV on die-cut faux leather blanks

Home Décor and Gift Items

Faux leather has become a dominant substrate in the personalized gifts market. Its consistent surface and ability to cut precisely on a vinyl cutter makes it ideal for high-volume customization. Popular product categories include:

• Custom photo album and journal covers
• Faux leather coasters and placemats with pressed monograms
• Wine carriers and tote bags with brand logos
• Bookmarks and stationery accessories
• Custom pet collars and ID tag panels

The workflow from design to finished faux leather piece mirrors standard HTV production — cut on a vinyl cutter, weed the negative space, and press with adjusted settings. The fundamentals covered in the guide to cutting with a Cricut or vinyl cutter apply without modification to faux leather blanks.

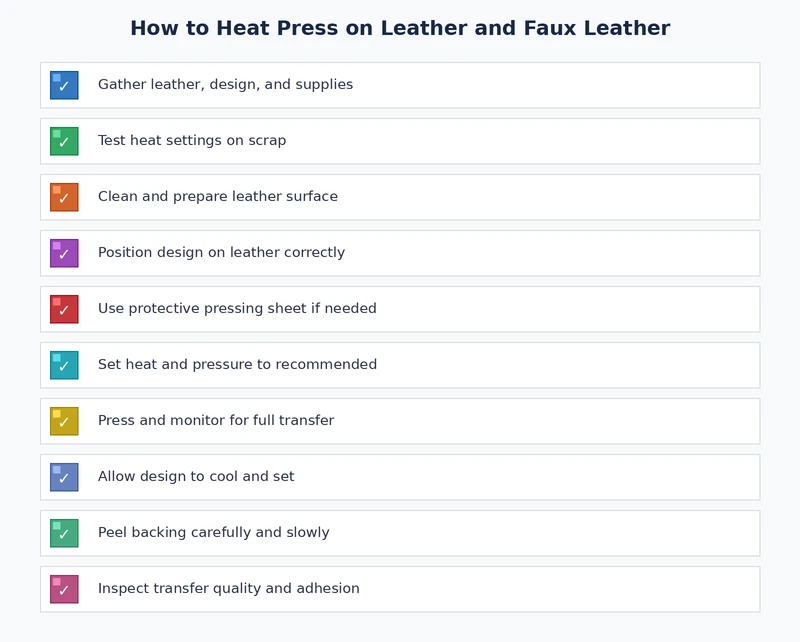

Heat Press Settings and Techniques That Actually Work

Precision is non-negotiable when pressing leather. A 10°F overshoot or five extra seconds of dwell time can permanently damage a piece that took significant time to prepare. There is no "close enough" here.

Temperature, Time, and Pressure

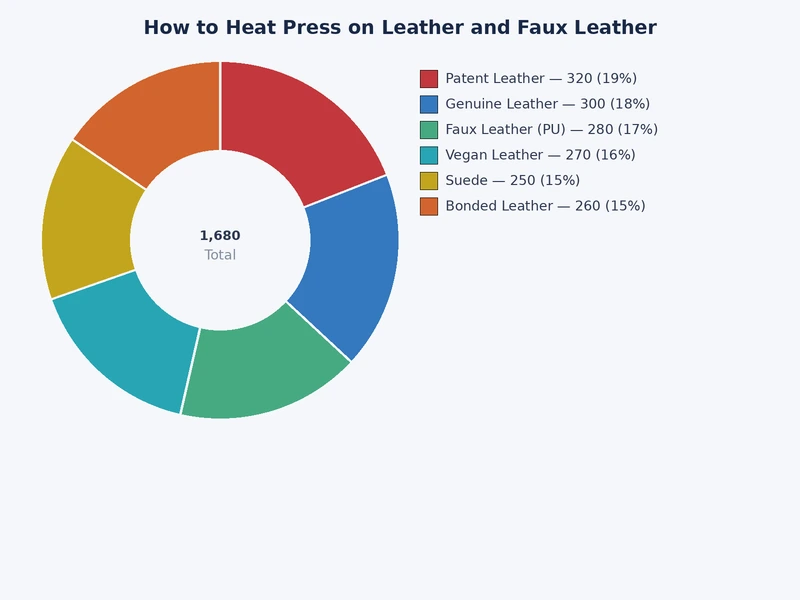

The reference settings in the table above represent proven safe ranges. In practice, the specific leather product being pressed — its tanning method, thickness, surface finish, and any previous conditioning — introduces variables that can shift the ideal settings by 10°F–20°F in either direction. The consistent recommendation is to always test on a scrap piece of the same material before pressing the finished item.

A Teflon sheet or silicone pressing sheet must be used as a protective barrier between the platen and the leather surface on every press. Kraft paper works as a fallback but offers less consistent pressure distribution across the platen face. Never press directly onto leather without a barrier.

Pro tip: Verify platen temperature with an infrared thermometer before pressing leather — press platens routinely read 10°F–20°F hotter than the digital display indicates, and that gap is enough to scorch a genuine hide.

Pressure settings on leather require the same deliberate attention as temperature. Leather doesn't need the same firmness as dense canvas or thick cotton. The heat press pressure guide details the calibration process — on leather, start at the lightest effective setting and increase only if adhesion fails on a test piece, never as a precaution.

Pre-pressing the leather surface for 3–5 seconds before applying the transfer removes residual moisture and warms the surface evenly, which improves initial adhesive contact. This step is especially important on genuine leather in humid environments.

Transfer Type Selection

Transfer method selection is not interchangeable on leather substrates:

• Standard HTV: The most reliable option for both genuine and PU faux leather. Thin smooth HTV bonds predictably at the settings above.
• Glitter HTV: The additional layer thickness requires slight adjustments — marginally more pressure or marginally longer dwell time, but not both simultaneously. The technique in the guide to applying glitter HTV with a heat press translates directly to leather with these parameter adjustments.
• Sublimation: Does not bond to genuine leather. PU faux leather with a high-polyester backing can sometimes accept sublimation transfers, but results are inconsistent and not recommended for production work. The substrate requirements are explained in detail in the HTV vs sublimation comparison.
• Screen printed transfers: Can work on leather with the correct adhesive formulation, though less common in home and small-shop settings.

For dark faux leather, the selection of dark transfer paper versus light transfer paper carries visible consequences — a light transfer paper carrier on dark material leaves a visible background box around the design. The full breakdown in the dark vs light transfer paper guide applies directly to faux leather work.

Fixing Common Heat Press Problems on Leather

Leather does not broadcast problems early. By the time surface damage is visible, it is typically permanent. Prevention through correct settings is the primary strategy; troubleshooting addresses what happens when prevention fails.

Scorching and Discoloration

Scorching manifests as darkening, unwanted sheen, or a stiff, papery texture on the leather surface in or around the transfer area. The causes are consistent: excessive temperature, excessive dwell time, or direct platen contact without a barrier sheet.

Recovery options are limited:

• Light surface discoloration on vegetable-tanned leather can sometimes be reduced with a quality leather conditioner worked in with a soft cloth — but this is reduction, not reversal
• Chrome-tanned leather scorch is typically permanent with no meaningful recovery
• Faux leather melting, surface distortion, or texture loss is irreversible

The only reliable solution is prevention. Calibrated temperature, verified with an infrared thermometer, and a protective barrier on every press eliminates the vast majority of scorch incidents.

Peeling and Poor Adhesion

HTV that peels shortly after application on leather traces back to a short list of root causes:

• Surface oils or conditioner residue on genuine leather — always clean with IPA before pressing
• Insufficient pressure on a slick PU faux leather surface
• Premature peeling before the adhesive fully cured — especially critical with cold peel transfers
• Transfer type mismatch for the specific substrate

The diagnostic approach and repair techniques in the guide to fixing heat transfer vinyl that is peeling translate directly to leather substrates — the adhesive failure mechanics are identical regardless of the base material. Re-pressing a partially peeled transfer is viable on faux leather if the original press was too short. On genuine leather, re-pressing risks a cumulative heat dose that crosses the scorch threshold, so the decision requires careful judgment based on how far below target the original press was.

Caring for Heat-Pressed Leather and Faux Leather Items

The longevity of any heat-pressed leather piece depends as much on aftercare as on the original application quality. The transfer can be technically perfect and still fail early if the owner cleans or stores the item incorrectly.

Cleaning Guidelines

• Genuine leather: Wipe with a barely damp cloth. Never saturate. Avoid any cleaner containing acetone or petroleum distillates near the transfer area — these solvents can soften HTV adhesive even after full cure.
• PU faux leather: Wipe with mild soap and water on a soft cloth. More water-resistant than genuine leather, but aggressive scrubbing near transfer edges risks lifting corners over time.
• Universal rule: Machine washing, pressure washing, or prolonged water exposure degrades the adhesive bond on any leather-based material faster than any other single factor. Items with HTV transfers should never enter a washing machine.

Long-Term Storage and Conditioning

Genuine leather benefits from periodic conditioning with a leather-appropriate product, but conditioning agents must be applied away from the transfer area. Oils and waxes in conditioners migrate under transfer edges over time, weakening the adhesive bond from beneath. A light application to the leather surface around the transfer — not on it — is the correct technique.

PU faux leather does not require conditioning, but it is vulnerable to cracking and surface separation in very low-humidity environments. Storage at stable room temperature with minimal folding or creasing through the transfer area prevents stress fractures from forming in the transfer and the substrate simultaneously. Rolled storage is preferable to folded storage for faux leather sheets or panels with transfers on them.

Frequently Asked Questions

Final Thoughts

Heat pressing on leather rewards practitioners who invest in calibration, preparation, and the right materials — and punishes those who treat it like any other substrate. The next step is a test press: gather a scrap piece of the same leather or faux leather being used for the final project, dial in the settings from the table above, verify the platen temperature with an infrared thermometer, and run a full press cycle before touching the actual piece. That one test press is the single most reliable investment in a successful outcome.
