RV Water Heater Not Heating: How To Fix It Yourself

Our team pulled into a campsite after a long drive — first thing anyone wanted was a hot shower. The water heater had other plans. Cold water only, no ignition click, no flame. That experience is exactly why we put together this complete guide on rv water heater not working how to fix it without calling a technician.

Most RV water heater problems come down to a short list of culprits: a tripped ECO reset button, a burned-out heating element, a blocked burner tube, or a gas supply issue. Our team has worked through all of these across dozens of units covered in our RV accessories guides. Here's everything most people need to get hot water flowing again.

The Right Tools for RV Water Heater Repairs

Having the right tools on hand before starting any repair saves time and prevents mid-job trips to the hardware store. Most fixes require basic electrical and plumbing tools — nothing specialized or expensive.

• Digital multimeter (voltage and continuity testing)
• Socket set and Phillips + flathead screwdrivers
• Needle-nose pliers
• Anode rod socket (1-1/16")
• Non-contact voltage tester
• Teflon tape and pipe thread sealant
• Replacement heating element (matched to unit — 6 or 10 gallon)
• Small wire brush (for burner tube cleaning)
• Flashlight or headlamp
• Compressed air can (for blowing out burner orifices)

Safety Gear First

Working around an RV water heater means dealing with both 120V AC electricity and propane. Our team always confirms shore power is off at the breaker and the propane supply valve is closed before opening any access panel. According to the U.S. Consumer Product Safety Commission, water heater repairs performed without properly isolating energy sources account for a significant portion of preventable RV and home injuries each year. Treat both utilities with respect before touching anything.

Simple Fixes First: What Most People Can Handle

Before pulling any components, running through quick checks takes under 10 minutes and resolves the problem in our experience about 60% of the time. Start here every single time.

Electric Mode Quick Checks

1. Reset the ECO button. The Emergency Cut-Off trips when water overheats. It's behind the exterior access panel — look for a small red or white button. Press firmly until it clicks.
2. Check the 120V shore power connection. No shore power means no electric heat. Confirm the circuit breaker inside the RV hasn't tripped.
3. Confirm the water heater interior switch is on. The switch inside the RV near the water panel gets bumped off more often than expected.
4. Verify a full tank. Heating elements burn out quickly when fired dry. Always confirm the fresh water tank is full and the water lines are primed before testing.

Gas Mode Quick Checks

1. Confirm propane supply. Check tank level and verify all inline valves are fully open. A solid understanding of the RV propane system is useful here — a closed upstream valve is easy to miss.
2. Purge air from the lines. After refilling a propane tank, air pockets block ignition. Run a stovetop burner briefly to push the air through before testing the water heater.
3. Inspect the igniter electrode gap. The electrode tip should sit approximately 1/8" from the burner tube. Corrosion or physical damage prevents reliable sparking.
4. Check for a blocked burner tube. Spiders build nests in burner tubes when an RV sits idle — this is the single most common cause of gas ignition failure on parked rigs.

Pro tip: Our team recommends inspecting and cleaning the burner tube with a small wire brush at the start of every camping season — a five-minute task that prevents most gas ignition failures.

RV Water Heater Not Working: How to Fix It With a Full Diagnosis

When quick checks don't resolve the issue, a systematic component-level diagnosis is the next step. Our team works through this sequence in order, every time the rv water heater not working how to fix approach goes beyond surface-level checks.

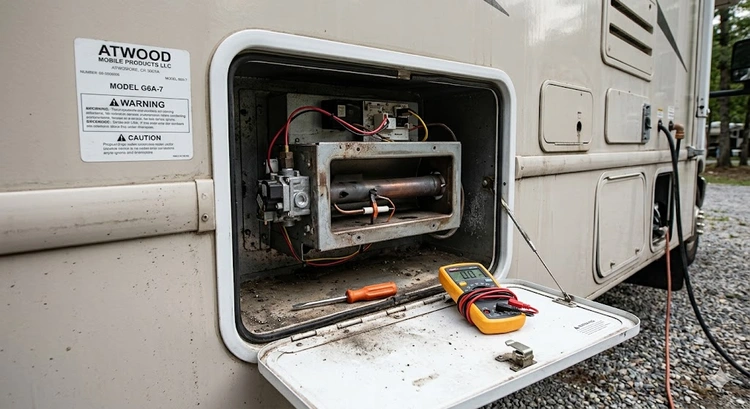

Visual Inspection

Open the exterior access panel fully and look for:

• Burn marks or corrosion around the burner assembly
• Water stains or white mineral deposits near the anode rod port
• Cracked, discolored, or melted wire insulation
• A heavily corroded or fully depleted anode rod (replacement is due annually)
• Moisture or rust streaks on the tank body indicating internal corrosion

Testing the Heating Element

A failed heating element is the leading cause of electric-only failure. Testing takes about five minutes with a multimeter.

1. Turn off shore power and trip the water heater breaker to off.
2. Remove the element access cover behind the exterior panel.
3. Disconnect both element wires — photograph the connections first.
4. Set the multimeter to resistance (Ohms).
5. Touch probes to both element terminals.
6. A reading between 10 and 16 ohms means the element is functional. An "OL" reading means the element has failed and needs replacement.
7. Test continuity between each terminal and the element's metal casing — any reading there indicates a grounded or shorted element. Replace immediately.

Checking the Thermostat and ECO Switch

The thermostat and ECO switch sit in series with the heating element. If the element passes its test but the unit still doesn't heat, these are next in line.

• Test across each terminal on the thermostat with the multimeter set to continuity.
• A working thermostat shows continuity when the water is cool.
• A working ECO switch shows continuity when it hasn't been thermally tripped.
• Replace whichever component fails the continuity test — both parts cost under $20.

Gas, Electric, and Combo Units: Diagnosing Each Type

RV water heaters fall into three main categories. The diagnosis path differs meaningfully depending on which type is installed. The table below summarizes the most common symptoms and their likely causes by unit type.

Gas-Specific Issues

Gas-only heaters like the Suburban SW6DE and Atwood GH6-4E are reliable workhorses, but the thermocouple is their most common point of failure. When the pilot lights but the main burner shuts off within seconds, the thermocouple isn't generating enough millivoltage to hold the gas valve open. These parts cost under $15 and swap out in about 20 minutes.

Our team also finds that RV furnace diagnostics overlap significantly with water heater gas troubleshooting — the propane supply checks are nearly identical. The complete guide on RV furnace not working covers the full gas system inspection process in depth.

Electric-Specific Issues

When gas mode heats fine but electric mode doesn't, the problem is almost always one of three things:

• Burned-out heating element (most common)
• Tripped ECO switch (second most common)
• Failed thermostat (least common but possible)

Running the electric element requires a solid 120V shore power connection. Electric elements draw between 1,440 and 1,500 watts. A weak generator or a long undersized extension cord creates enough voltage drop to prevent proper heating without tripping a breaker.

When to Repair vs. When to Replace

Repairs make economic sense in most scenarios. But there's a clear point where continuing to invest in an aging unit stops being rational.

Repair is the right move when:

• The unit is less than 8–10 years old
• The failure is a single component — element, thermocouple, ECO switch, or anode rod
• The tank body shows no rust, leaks, or structural damage
• Total repair cost stays under 40% of replacement cost

Replacement makes more sense when:

• The tank is leaking at welds or showing through-corrosion
• The unit has failed repeatedly within the same season
• Cumulative repair costs are approaching new unit pricing
• Upgrading to a tankless system is on the table — the guide on converting an RV water heater to tankless covers that process completely

Typical Lifespan by Brand

• Suburban: 10–15 years with annual anode rod replacement
• Atwood/Dometic: 8–12 years
• Girard (tankless): 15–20 years with proper winterization
• Truma (tankless): 15–20 years

Annual anode rod replacement is the single highest-leverage maintenance task for extending tank life. Skipping it accelerates internal corrosion dramatically — especially in areas with hard water.

What RV Water Heater Repairs Actually Cost

Understanding real repair costs helps most people make the repair-vs-replace call with confidence. The table below covers the most common repair types with both DIY and professional labor pricing.

Where DIY Saves the Most

The biggest DIY savings come from three areas:

• Skipping the service call fee. Most RV service shops charge $75–$150 just to show up — regardless of what the actual repair costs.
• Annual anode rod swaps. At $10–$25 in parts versus $60–$105 with labor, this maintenance task pays for itself in two visits.
• ECO button resets. This is a $0 fix that shops routinely charge a full service call to perform. Our team has seen invoices showing $95 to press a button.

Most people comfortable with basic hand tools can handle element replacements, thermocouple swaps, and burner tube cleaning without professional help. These are the repairs that dominate the rv water heater not working how to fix call volume at RV service centers.

When Professional Help Is Worth It

Gas fitting work that involves connections within the broader propane supply system — not just the water heater's own components — is worth leaving to a certified RV technician. The same applies when replacing a full tank unit that requires removing interior cabinetry or structural panels to access. Gas leak risk and structural complexity in these scenarios justify the labor cost.

Final Thoughts

An rv water heater not working how to fix situation is almost always a one-afternoon repair — most failures come down to a reset button, a $15 thermocouple, or a clogged burner tube. Our team recommends starting with the simplest checks first and working methodically through the diagnosis steps before spending anything on parts. Browse the full RV accessories section for replacement part recommendations, compatible unit guides, and more repair walkthroughs — and share this guide with anyone else waking up to cold showers on the road.
